Norgren SNP01012 User Manual

Features, M10 nut detector system, Technical data

background image

.70 (17.8)

NOTE 1

.39 (10.0)

.30 (7.6)

NOTE 2

NOTE 3

NOTE 4

NOTE 5

.3.15 (80)

1.75 (44.4)

.35 (8.9)

Our policy is one of continued research and development. We therefore reserve the right to amend,

without notice, the specifications given in this document.

© Norgren Automation Solutions, LLC 2013

002 24589 00325SP 12/4/12

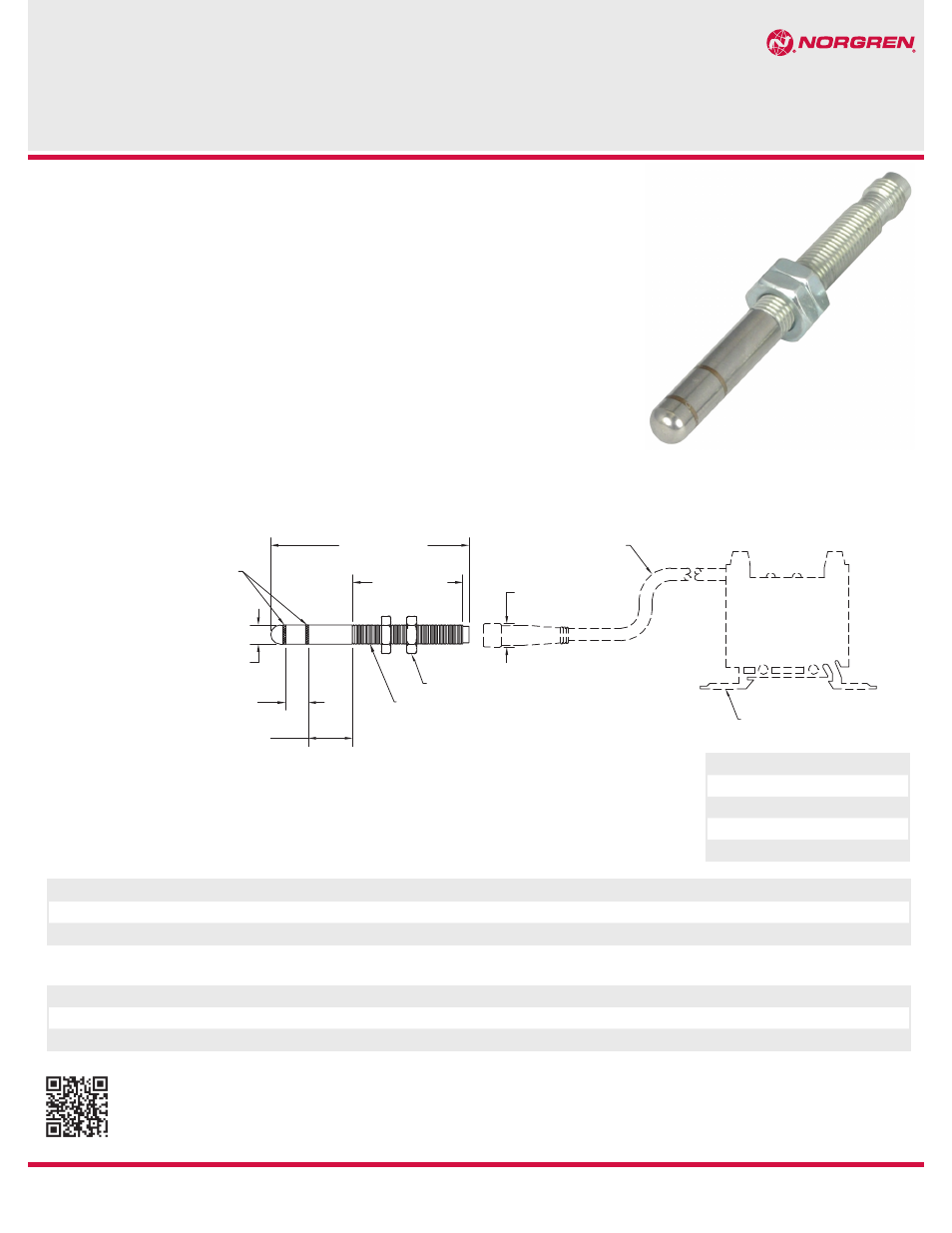

Nut Sensor

SNP01012

Features

Abrasion and impact resistant.
For light duty applications with sensor
tip radial loads up to 35 lbs.
Exceptional for thread detection and
thread quality detection.
Immune to weld fields and resistant to
weld slag.
Minimum nut thickness is:
8.0mm (.31") for M10 nut
10.0mm (.39") for M12 nut
Maximum blank thickness
is 2.5mm (.10")

Note 1

M8 X 1.0

Note 2

2X M8 JAM NUTS

Note 3

SOLD SEPERATELY

Note 4

SOLD SEPERATELY

Note 5

SENSING AREA

Sensor

Monitor

Cable

Weight

SNP01012

SMR36010 (NPN)

SCE13000 2m (6ft)

.037 lbs / 17 gm

SMR37010 (PNP)

SCE13001 2m (6ft) (Angled)

M10 Nut Detector System

Sensor connector:
3-pin (male) 8mm (pico) connector

Operating temperature range:
32°F to 212°F (0°C to 100°C)

Target material:
Ferrous/Non-Ferrous

Technical Data

Sensor

Monitor

Cable

Weight

SNP01012

SMR36012 (NPN)

SCE13000 2m (6ft)

.037 lbs / 17 gm

SMR37012 (PNP)

SCE13001 2m (6ft) (Angled)

M12 Nut Detector System

SEE ENGINEERING ADVANTAGE

Scan with a QR code reader – www.norgren.com/automationsolutions

Tel: 734-429-4989

Dimensions in. (mm)
