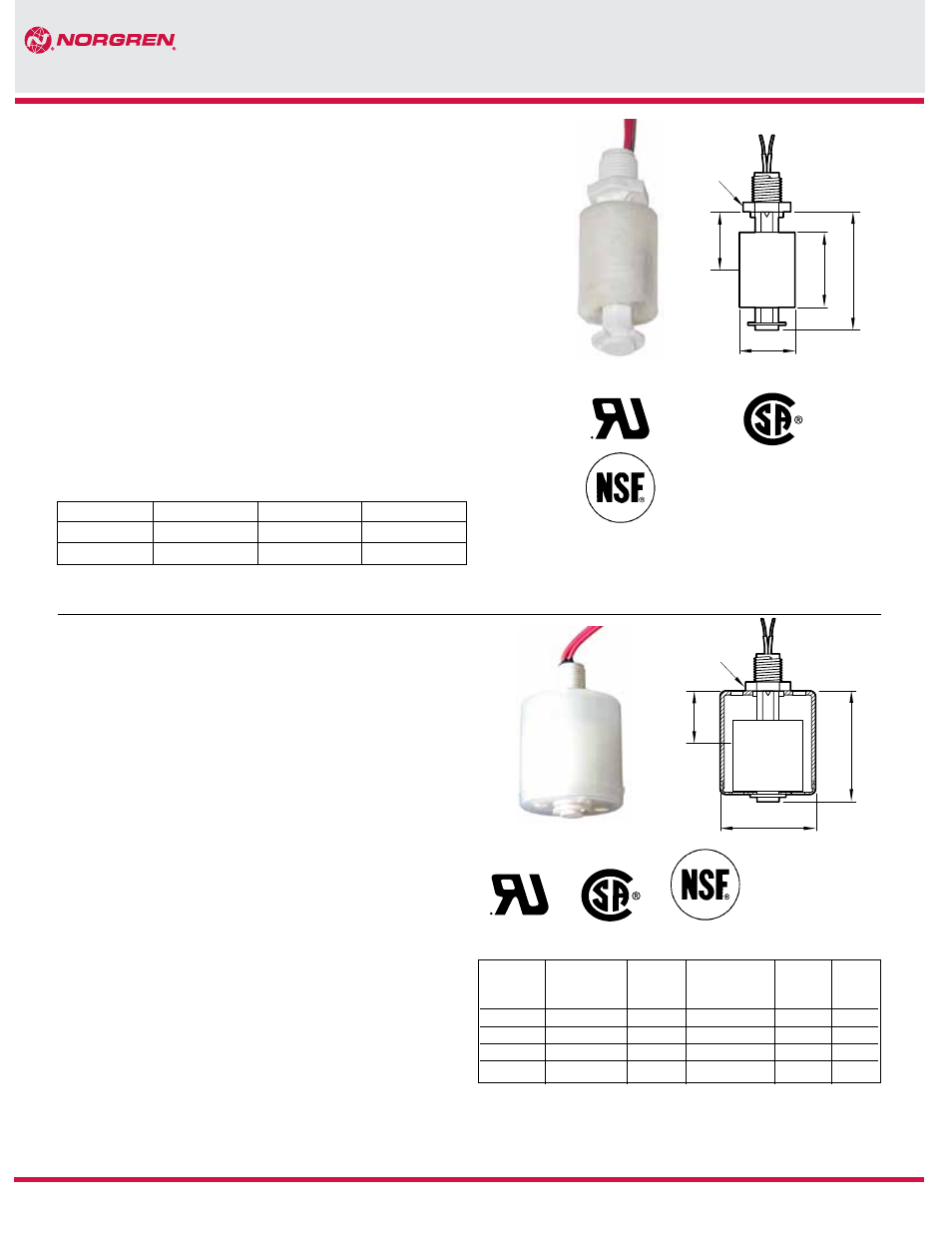

KIP LS 1 Series
LS 1 Series with Slosh Shield
The LS 1 Series with Slosh Shield Provides a Means of Dampening
Turbulent Fluids...
All Polypropylene construction ideal for beverage dispensing
and ice machines
Compact size allows for minimum displacement
Easily adaptable to other switch types and float combinations
for OEM applications
Specifications
Maximum Pressure @70° F
Foamed Float 150 PSI (10.3 bar)
Hollow Float 10 PSI (.69 bar)
Temp. Operating Range
Foamed Float -40°F to 150° F (-40°C to 66° C)
Hollow Float (PP) -40°F to 150° F (-40°C to 66° C)
Leadwire
Polypro Units 22 AWG, 24” long
Recommended Minimum Liquid SP GR
Foamed Polypro Float .72
Hollow Polypro Float .55
1.00 (25)
A
1.58 (40)
.75 (19)
9/16 Hex
A
1.58 (40)
1.38 (35)
9/16 Hex
Mini LS 1 Series
The LS 1 Series with a Float Diameter of .75 Fits Into Those Hard to
Reach Places...
Ultra compact size fits through small bottle or tank openings
Seamless cellular construction for a rugged float design
Ideal for food and beverage applications
Unique hex stem design minimizes potential for liming
Specifications
Maximum Pressure 150 PSI (10.3 bar) @ 70°F
Temp. Operating Range -40°F to 150°F (-40°C to 66°C)
Mounting 1/8” NPT or 7/16 - 20 UNF
Leads 22 AWG, 24” long
Recommended Minimum
Liquid SP GR .90
Float Material Seamless Cellular Polypropylene
Stem and Other Parts Polypropylene
A - actuation point is
approximately midway of float
travel in liquid with a specific
gravity of 1.0.
UL Recognized
File No. E 129277
CSA Approved
File No. LR 90981
A - actuation point is
approximately midway of
float travel in liquid with a
specific gravity of 1.0.
UL Recognized
File No. E 129277
CSA Approved
File No. LR 90981
LS 1 Series with Slosh Shield:
† “NSF Certified” - these products conform to the requirements of NSF Criteria C2 - Special
and/or Devices.
- for NSF label add prefix N to the part number when ordering.
† “NSF Certified” - these products conform to the requirements of NSF Criteria C2 - Special
and/or Devices.
- for NSF label add prefix N to the part number when ordering.
Mini LS 1 Series Ordering Numbers:
Part Number MTG Material Switch Rating
0763-024 † 1/8” NPT Polypro 20VA
1340-024 † 7/16-20 UNF Polypro 20VA
Other
Part Stem Float Wetted Switch
Number MTG Material Material Parts Rating
1347-001† 1/8” NPT Polypro Polypro Polypro 20VA
1347-002† 7/16-20 UNF Polypro Polypro Polypro 20VA
2841-024 1/8” NPT Polypro Hollow Polypro Polypro 20VA
2842-024 7/16-20 UNF Polypro Hollow Polypro Polypro 20VA
