Page 2
N/en 6.6.040.02
Our policy is one of continued research and development. We therefore reserve the right to amend,
without notice, the specifications given in this document.
VP51
2006-125d
8/13

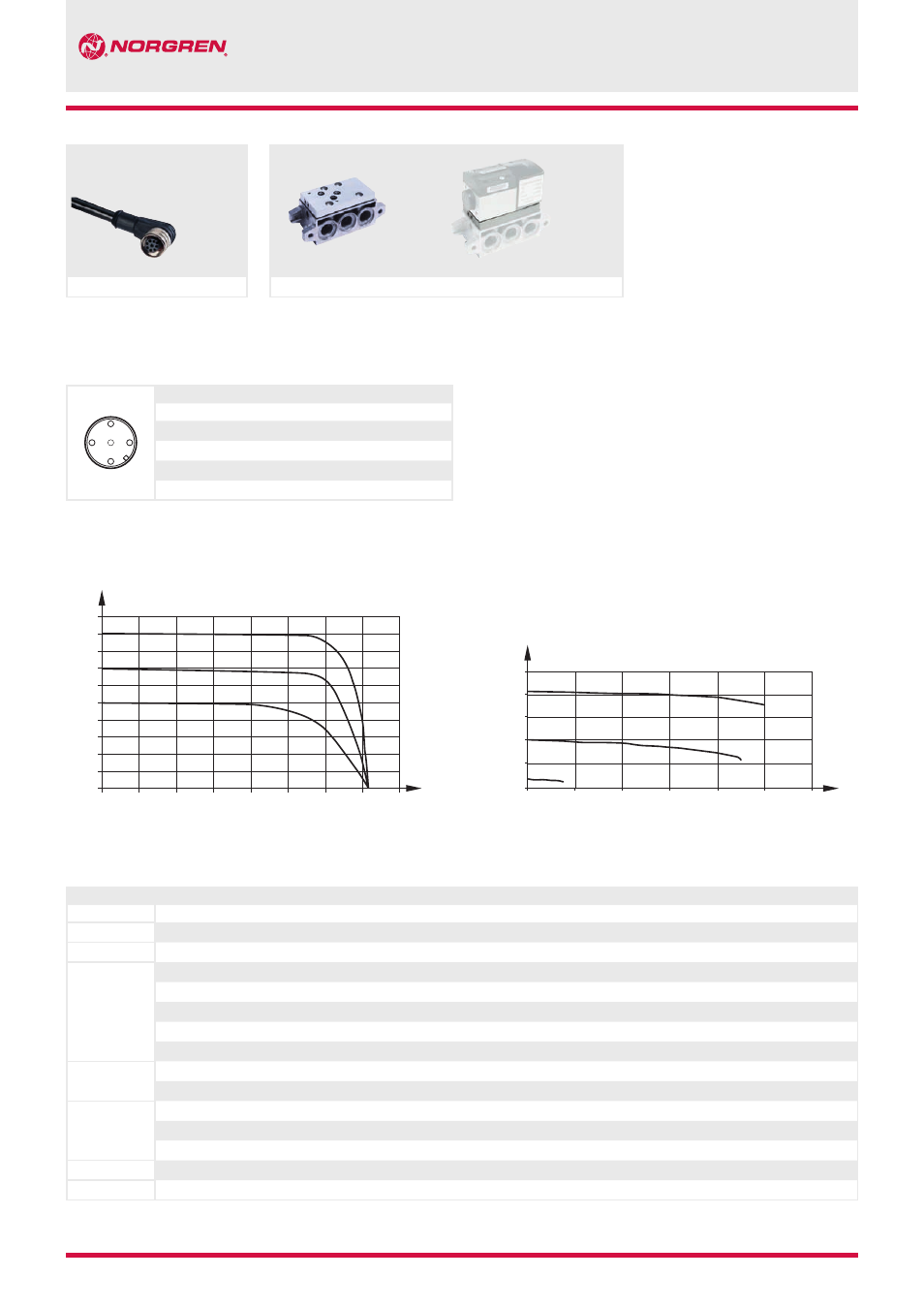

Elbow connector M12 x 1
Page 4
0250081
Pin-No.
Function
1
+24 V d.c. supply
2
0 ... 10 V feedback
3
Control signal (+VE)
4
Common (supply signal and feedback return)
5
Chassis
Setting
Options
Language
English, Español, Français, Italiano, Deutsch
Pressure units
Bar, atm, kg/cm2, kPa, psi
Password Protection
Protect against unauthorised adjustment of the valve
Off-line Set up
Min Set up
Set pressure between 0…10 Bar and Min – Max Signal
Max Set up
Set pressure between 10…0 Bar and Min – Max Signal
Speed Setting
Change the time taken to ramp between two pressures. (Volume dependent)
Dynamic Response
Allows the Integrator settle time to be set
Dither Amp
Amplitude of the dither on the spool
On-line Set up
Min Set up
Can be used for fine adjustment of output pressure at a given signal
Max Set up
Can be used for fine adjustment of output pressure at a given signal
Monitor Set up
Monitor Output
Display feedback for user information.
Green Indicator
Shows power is present and can be set to flash when the output pressure is outside specified limits
Red Indicator
Normally off. Can be set to flash if the output pressure does not reach the required value within a specific time limit. Will also flash when the unit is set to local control.
Local Control
Manual Control
Valve output can be set using the arrow keys
Factory Defaults
Option to resets the valve to the Factory default settings.
Single manifold
Page 4
ZZ5M00
Connecting plugs
Electrical connector pin looking
into the end of the instrument
Valve built in user adjustable settings
Characteristic curves
Manifold mount assembly to ISO 2 sub base
O-rings, flat seal and screws are included
1
2
5
3
4
10
9
8
7
6
5
4
3
2
1
0
0
200
400
600
800
1000 1200 1400 Nl/min
bar
10
4
2
0
6
8
200
0
400
600
800
1000
Nl/min
bar
Outlet pressure
Outlet pressure
Flow
Flow
Forward flow characteristics
(supply pressure 11 bar)
Relief flow characteristics
(supply pressure 9 bar)
