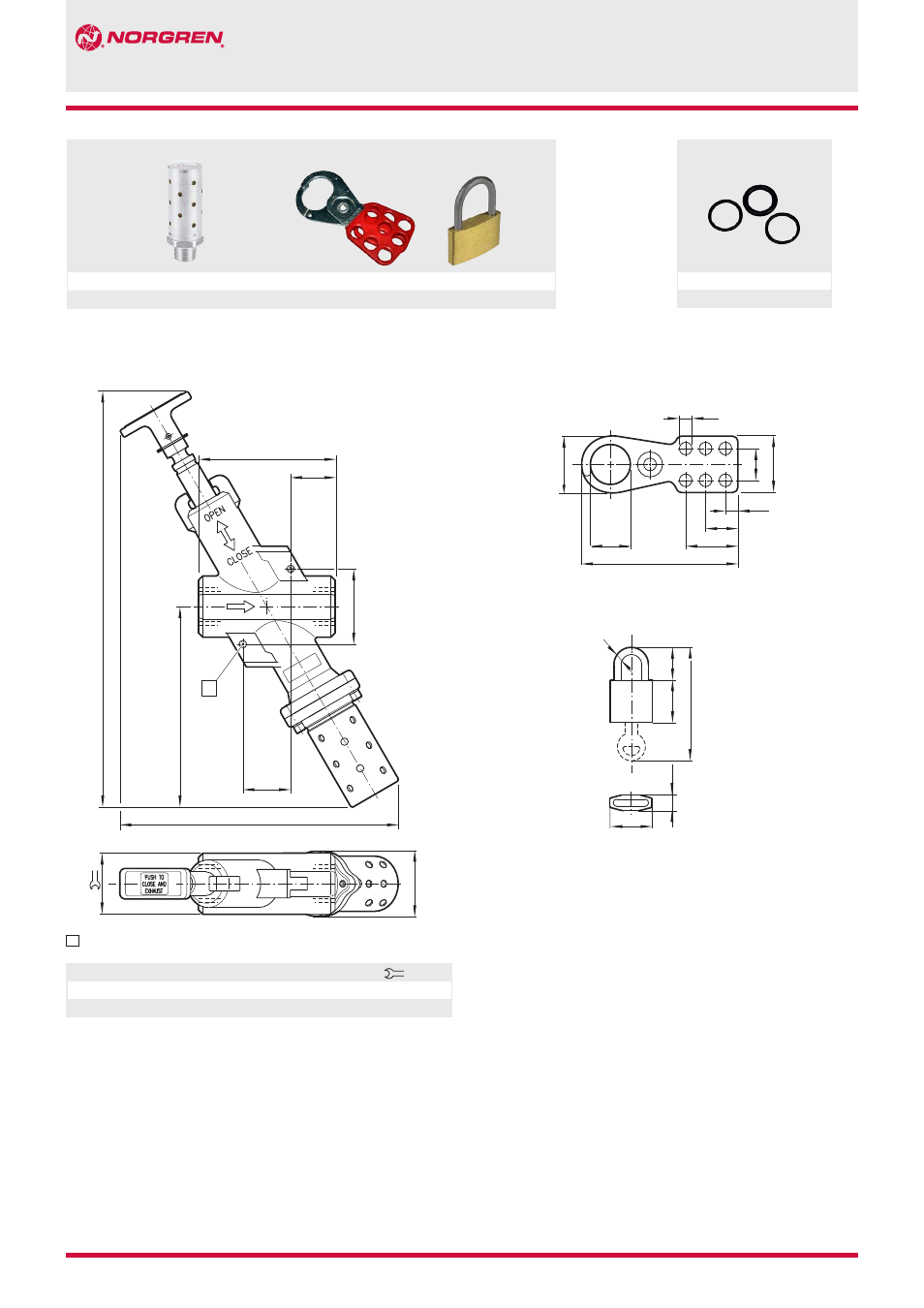

Dimensions
Valve
Lockout hasp
Padlock
Repair kits
53474-43 (NBR - 1/2” base size)
53475-34 (NBR - 1” base size)
Repair kits
Base size
Replacement silencer
ISO R thread PTF thread
Lockout hasp Padlock with two keys
1/2” MB006B MB006A 54547-01 0613633 (brass)
1” MB008B MB008A
Accessories
Basic size A B C D E F G H ø J
1/2” 102 35 32 202 299 136 57 48 48
1” 127 (131) 41 (43) 44 266 399 198 77 57 54
( ) = values for PTF version
Warning
These products are intended for use in industrial compressed air
systems only. Do not use these products where values can exceed
those listed under »Technical features/data«.
Before using these products with fluids other than those specified,
for non-industrial applications, life-support systems, or other
applications not within published specifications, consult NORGREN.
Through misuse, age, or malfunction, components used in fluid
power systems can fail in various modes.
The system designer is warned to consider the failure modes of all
component parts used in fluid power systems and to provide adequate
safeguards to prevent personal injury or damage to equipment in the
event of such failure.
System designers must provide a warning to end users in the system
instructional manual if protection against a failure mode cannot
be adequately provided.
System designers and end users are cautioned to review specific
warnings found in instruction sheets packed and shipped with
these products.
