Hardware Setup
Connectors

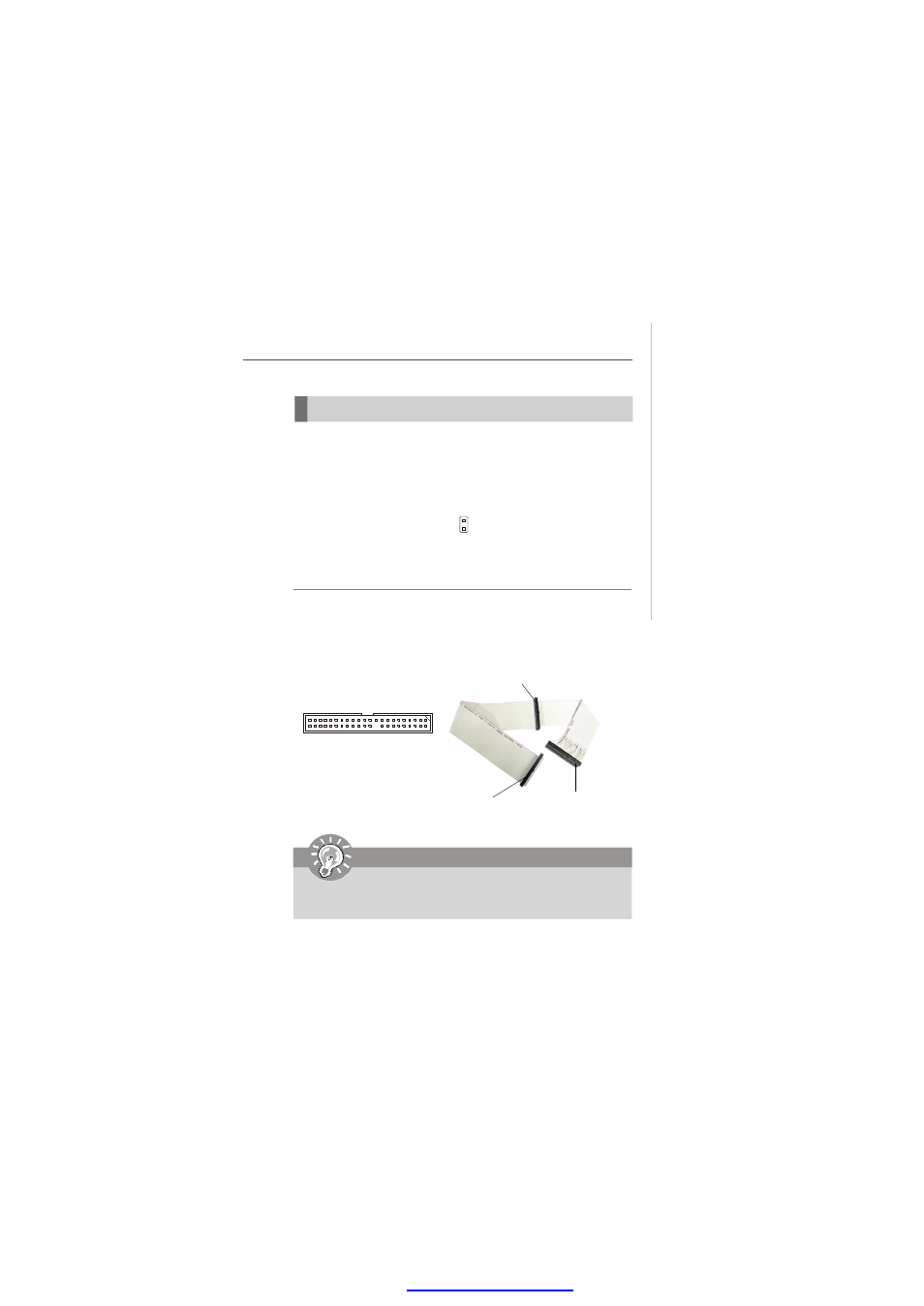

44-Pin IDE Connector: IDE1
This 44-pin IDE connector connects to an optional converter that enables connection
to one 44-pin IDE device and one 40-pin IDE device, such as hard disk drives, CD-
ROM and other IDE devices.
JCI1
1
2 CHASSIS
GND
IDE1
Connect to IDE1
Connect to 40-pin
IDE device
Connect to 44-pin
IDE device
Chassis Intrusion Connector: JCI1
This connector connects to the chassis intrusion switch cable. If the chassis is
opened, the chassis intrusion mechanism will be activated. The system will record
this status and show a warning message on the screen. To clear the warning, you
must enter the BIOS utility and clear the record.
Important
If you install two IDE devices on the same cable, you must configure the drives
separately to master / slave mode by setting jumpers. Refer to IDE device’s
documentation supplied by the vendors for jumper setting instructions.
