2-4
MS-9642 Mainboard

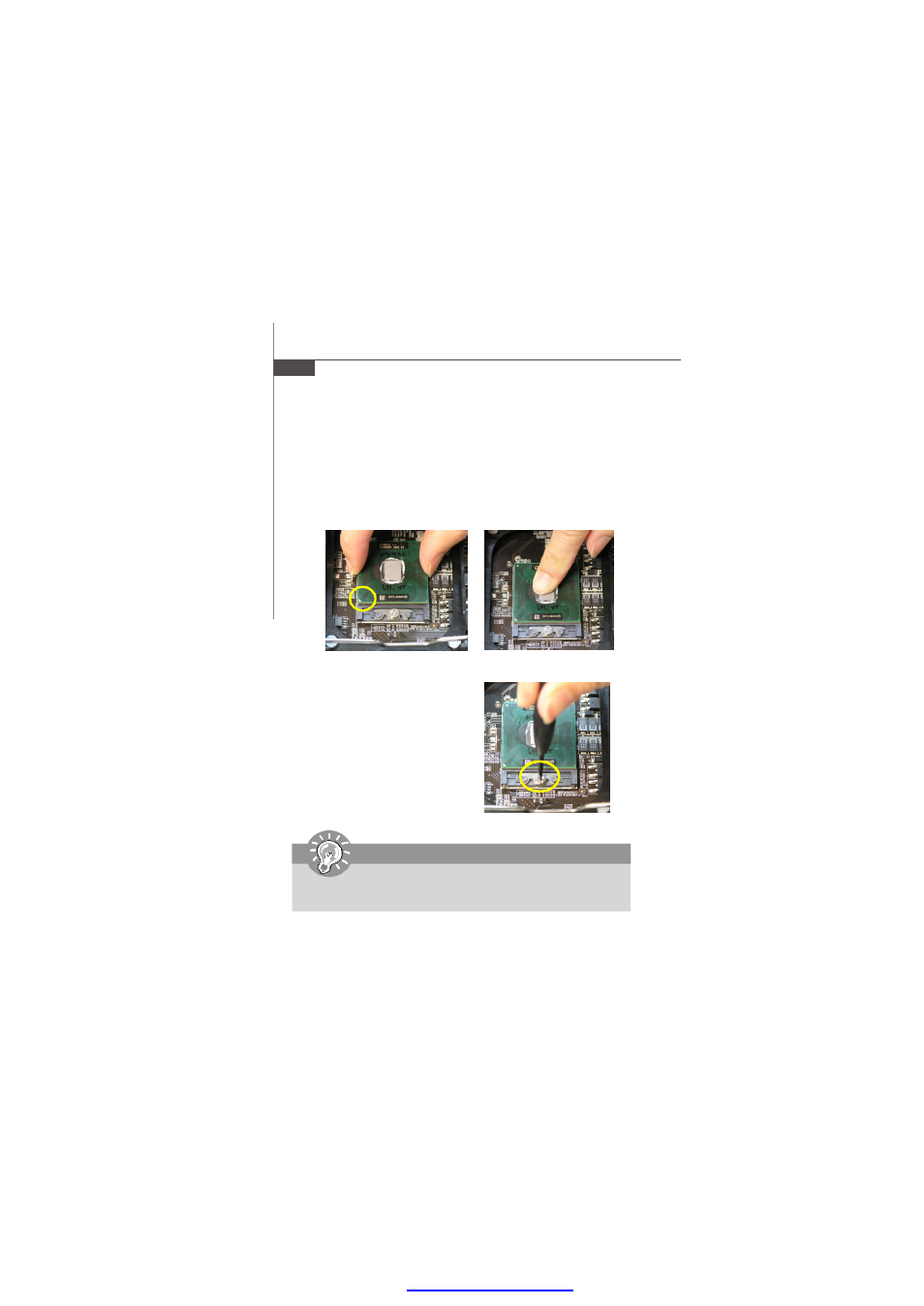

1. Locate the CPU socket on the mainboard. On the upper end of the CPU socket is
a socket actuator in the form of a slotted screw head. Make sure that you open
or close the socket with a flathead screwdriver before and after installing the
CPU.
2. Turn the socket actuator counterclockwise to open the socket. Locate the golden
arrow on the CPU and align it to the upper right corner of the socket. Put the CPU
gently down. If the socket is completely opened, the CPU pins will securely fit into
the socket.
CPU & Cooler Set Installation
3. Turn the socket actuator clockwise to
close the socket.
Important
Mainboard photos shown in this section are for demonstration only and may
differ from the actual look of your mainboard.
