MSI Fuzzy 945GME2 V4.0 - Manual (Page 24)

2-6
MS-9642 Mainboard

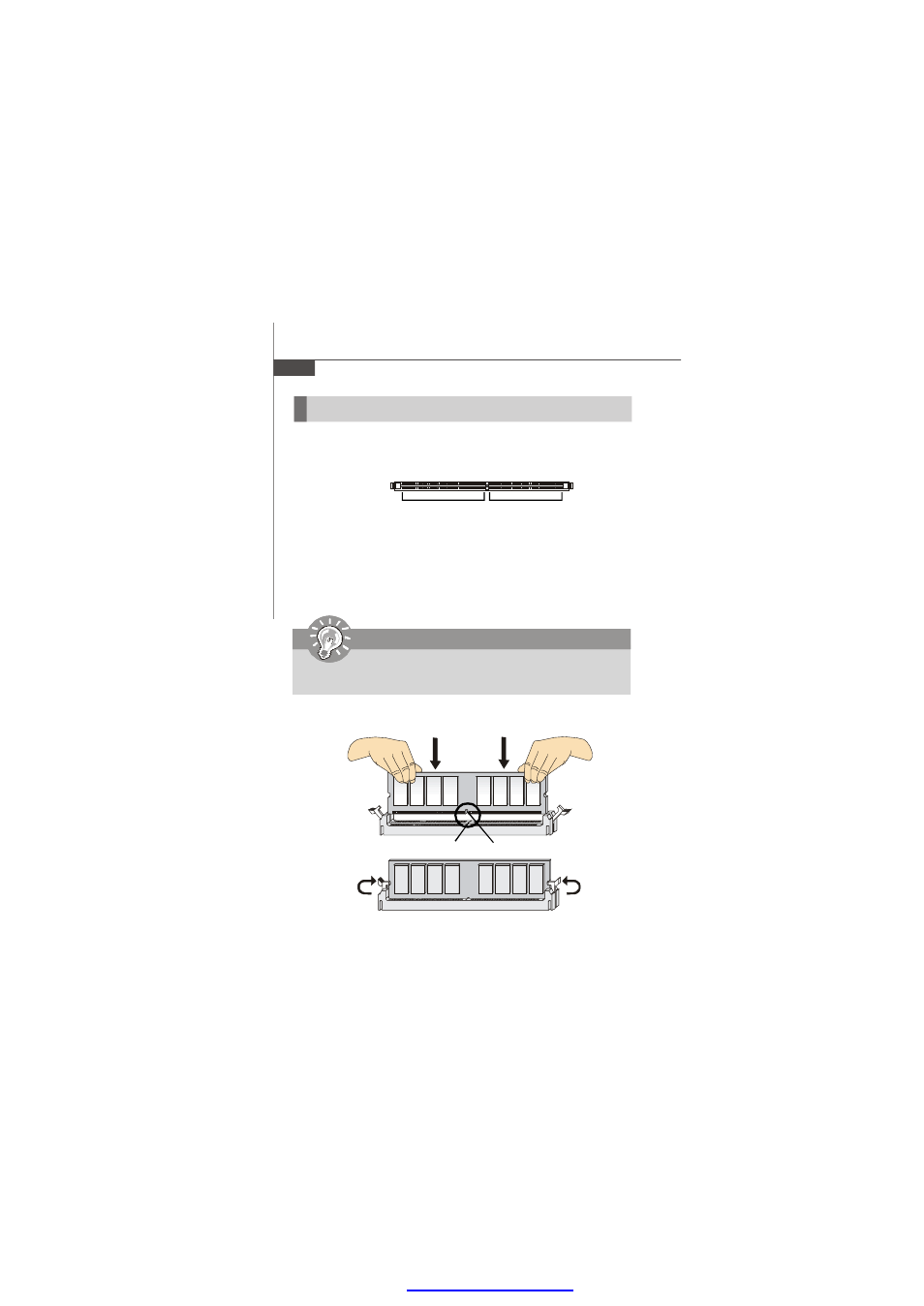

Installing Memory Modules
1. The memory module has only one notch on the center and will only fit in the right
orientation.
2. Insert the memory module vertically into the DIMM slot. Then push it in until the
golden finger on the memory module is deeply inserted in the DIMM slot.
3. The plastic clip at each side of the DIMM slot will automatically close.
Important
You can barely see the golden finger if the memory module is properly inserted
in the DIMM slot.
Memory
64x2=128 pin 56x2=112 pin
DDR2
240-pin, 1.8V
Volt Notch
The DIMM slots are intended for system memory modules.
