Hardware Setup
3
JTV0
1
5 4
2
Pin Description Pin Description
1 GND 4 COMP
2 Y 5 GND
3 C
JTV0 Pin Definition

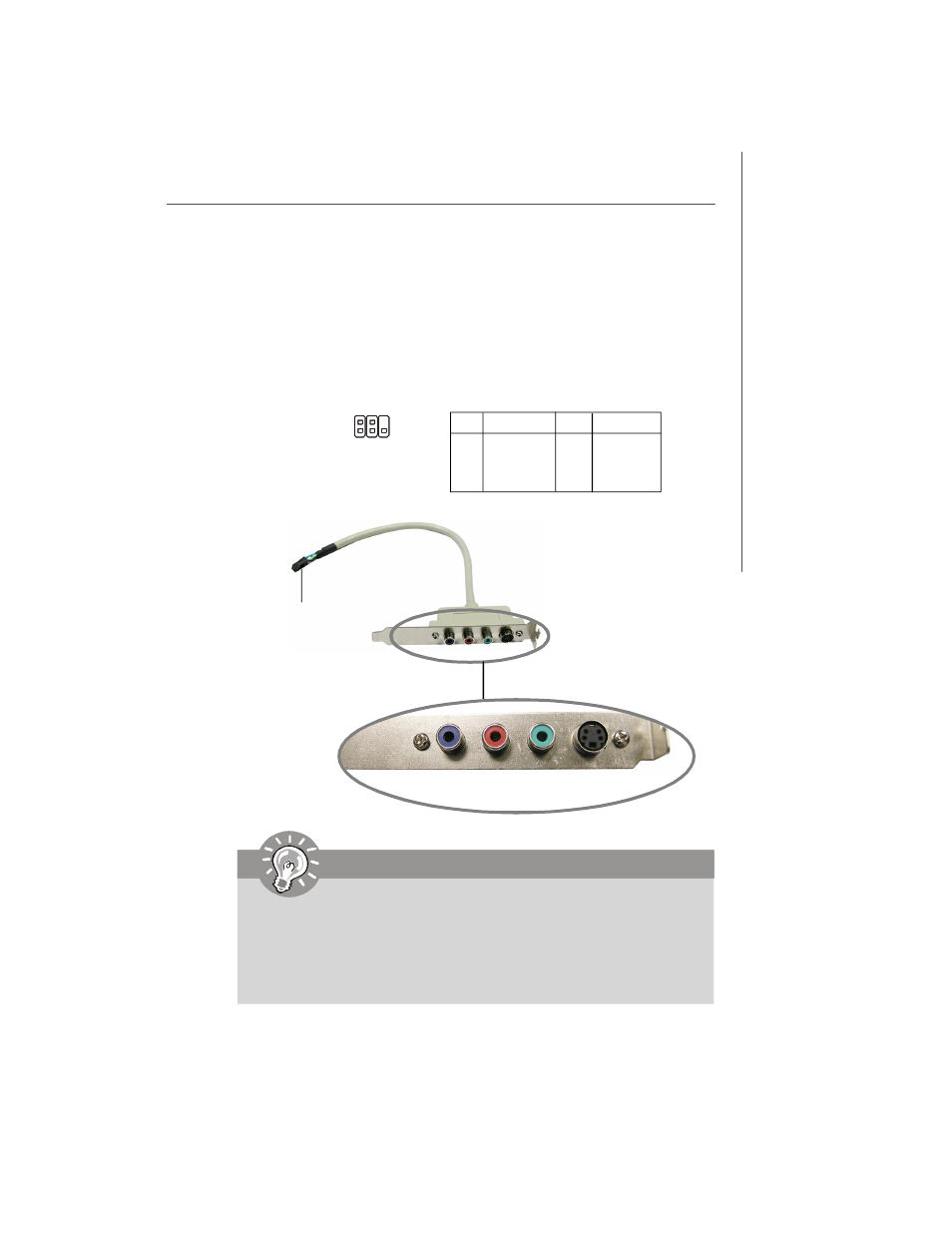

TV-Out Connector: JTV0
The mainboard optionally provides a TV-Out connector for you to attach a TV-Out
bracket that integrates HDTV-out. The TV-Out bracket offers two types of TV-Out
connectors: S-Video and RCA Composite connectors. Select the appropriate one to
connect to the standard television or the HDTV (High-Definition TeleVision) and it will
be able to display PC
’s information.
TV-Out Bracket (Optional)
Connected to JTV0
TV-Out Connector
(S-Video)
TV-Out Connector
(RCA Composite)
Important
1. Please note that the TV-Out bracket can connect to one TV only. Users
have to choose either the RCA Composite or the S-Video to connect. Si-
multaneous connection (of this bracket) to two TVs is prohibited and may
lead to the malfunction of the TVs.
2. Please refer to Appendix: U sing the TV-Out Function (HD TV-O ut
Integrated) for details.
