2-15
Hardware Setup

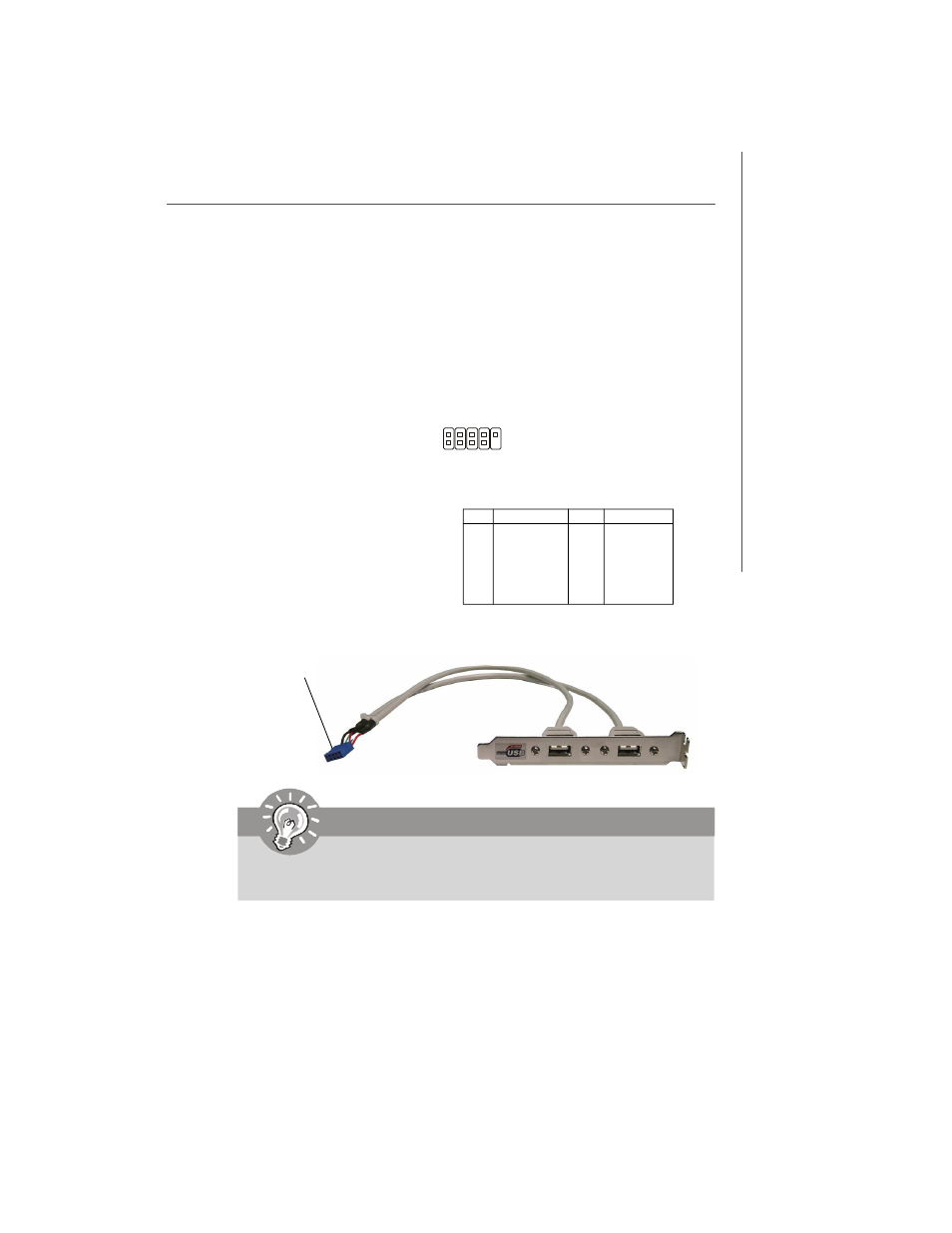

Front USB Connector: F_USB2
The mainboard provides one USB 2.0 pinheader (optional USB 2.0 bracket available)
that are compliant with Intel
® I/O Connectivity Design Guide. USB 2.0 technology
increases data transfer rate up to a maximum throughput of 480Mbps, which is 40
times faster than USB 1.1, and is ideal for connecting high-speed USB interface
peripherals such as USB HDD, digital cameras, M P3 players, printers, mo-
dems and the like.
1
2
9
10
F_USB2
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 Key (no pin) 10 USBOC
Pin Definition
Connected to F_USB2
USB 2.0 Bracket
(Optional)
Important
Note that the pins of VCC and GND must be connected correctly to avoid
possible damage.
