MSI Keeper 945GM V1.0 - Manual (Page 20)

2-7
Hardware Setup
Volt Notch
DIMM 1
(Bank 2 & 3)
S/D 128MB~1GB
Maximum System Memory Supported 128MB~2GB
DIMM 0
(Bank 0 & 1)
S/D 128MB~1GB
S: Single Side D: Double Side
Slot Memory Module Total Memory

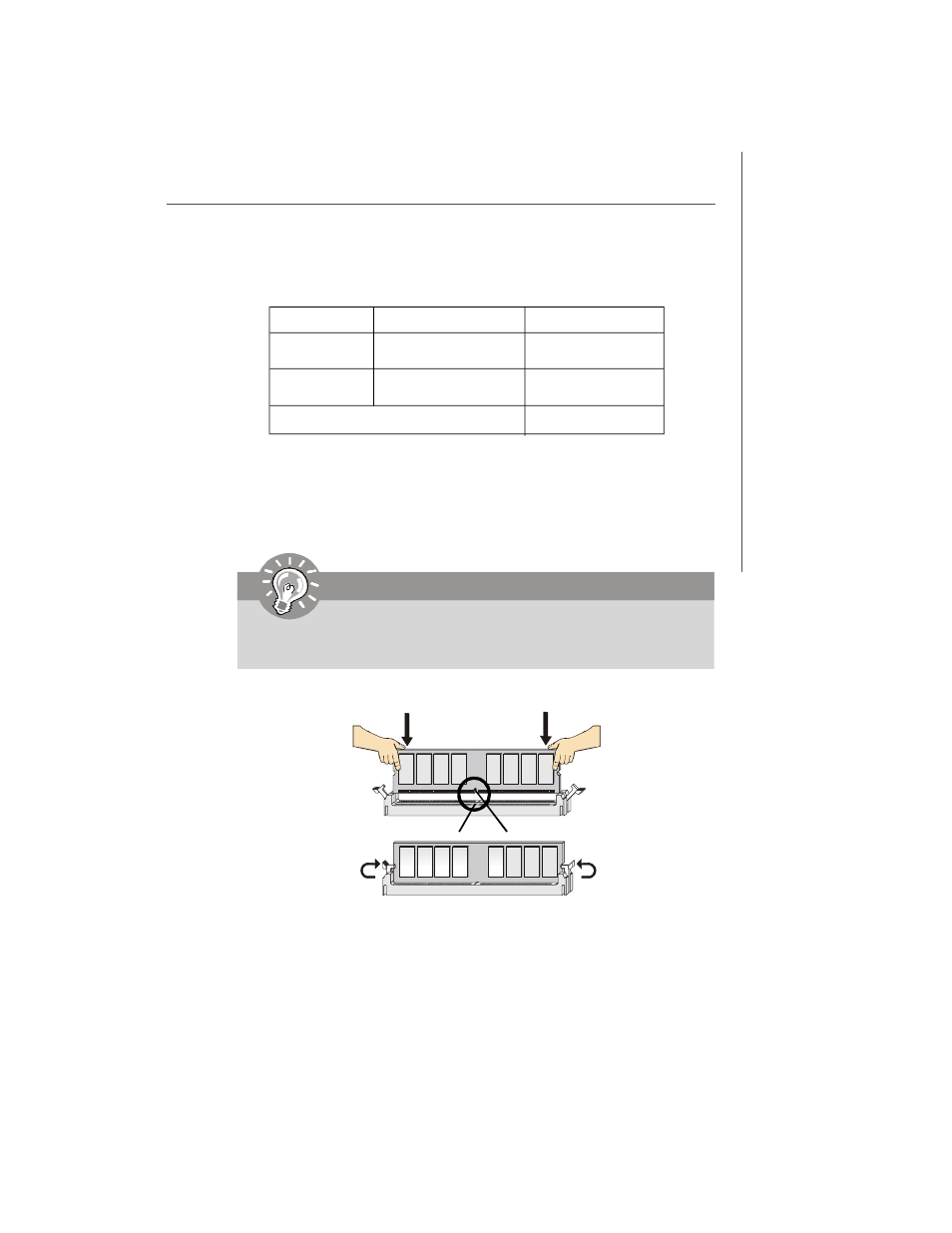

Installing DDRII Modules
1. The DDRII DIMM has only one notch on the center of module. The Module will
only fit in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in
until the golden finger on the memory module is deeply inserted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
Important
You can barely see the golden finger if the module is properly inserted in the
socket.
