2-13
Hardware Setup
PIN SIGNAL PIN SIGNAL
1 GND 2 RXN
3 RXP 4 GND
5 TXN 6 TXP
7 GND

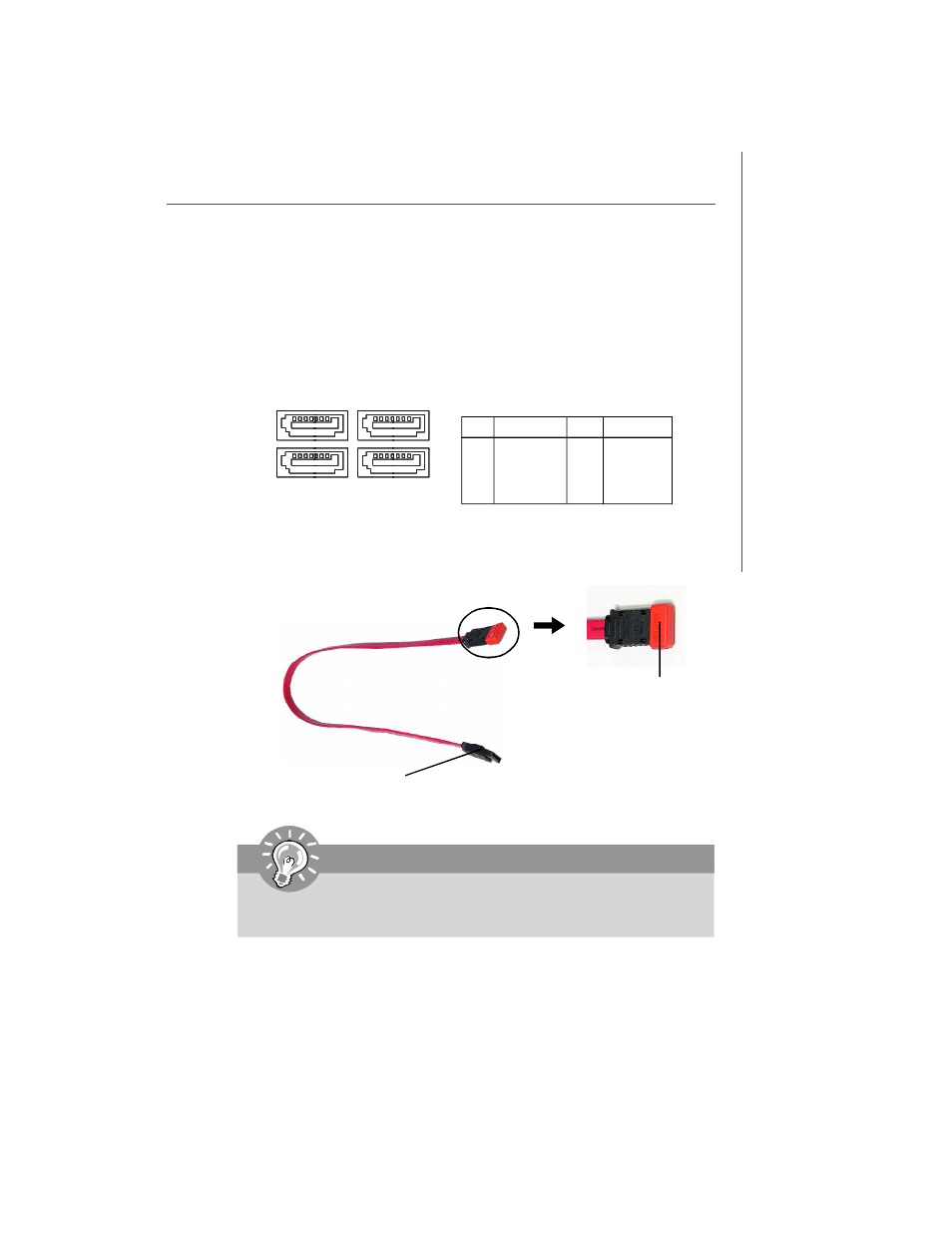

SATA1~ SATA4 Pin Definition
Connect to SATA1/2/3/4
Take out the dust cover
and connect to the hard
disk devices
Serial ATAII cable
Serial ATAII Connectors: SATA1~SATA4
SATA1~SATA4 are high-speed Serial ATA interface ports. Each supports serial ATA
data rates of 300MB/s. Both connectors are fully compliant with Serial ATA 2.0
specifications. Each Serial ATA connector can connect to 1 hard disk device.
7 1
SATA3 SATA4
SATA2 SATA1
7 1
Important
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.
