Hardware Setup
▍
MS-96D2
Hardware Setup
▍
MS-96D2
Important
In Dual-Channel mode, make sure that you install memory modules of the same
type and density in different channel DIMM slots.

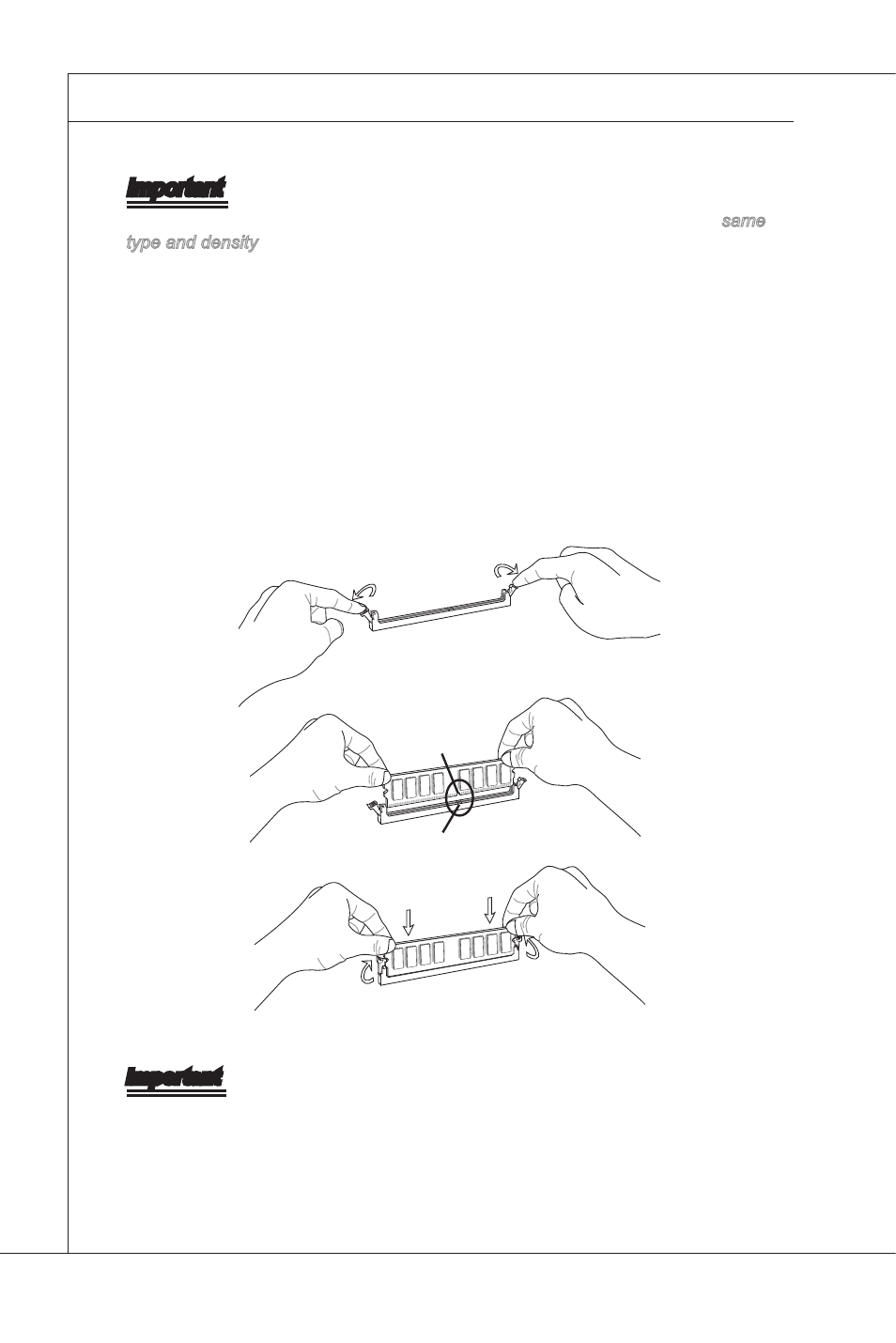

Installing Memory Modules
The memory module has only one notch on the center and will only fit in the
right orientation.
Insert the memory module vertically into the DIMM slot. Then push it in until
the golden finger on the memory module is deeply inserted in the DIMM slot.
The plastic clip at each side of the DIMM slot will automatically close when
the memory module is properly seated.
Manually check if the memory module has been locked in place by the DIMM
slot clips at the sides.
Notch
Volt
Important
You can barely see the golden finger if the memory module is properly inserted
in the DIMM slot.
1.
2.
3.
