MS-7618 Mainboard

▍

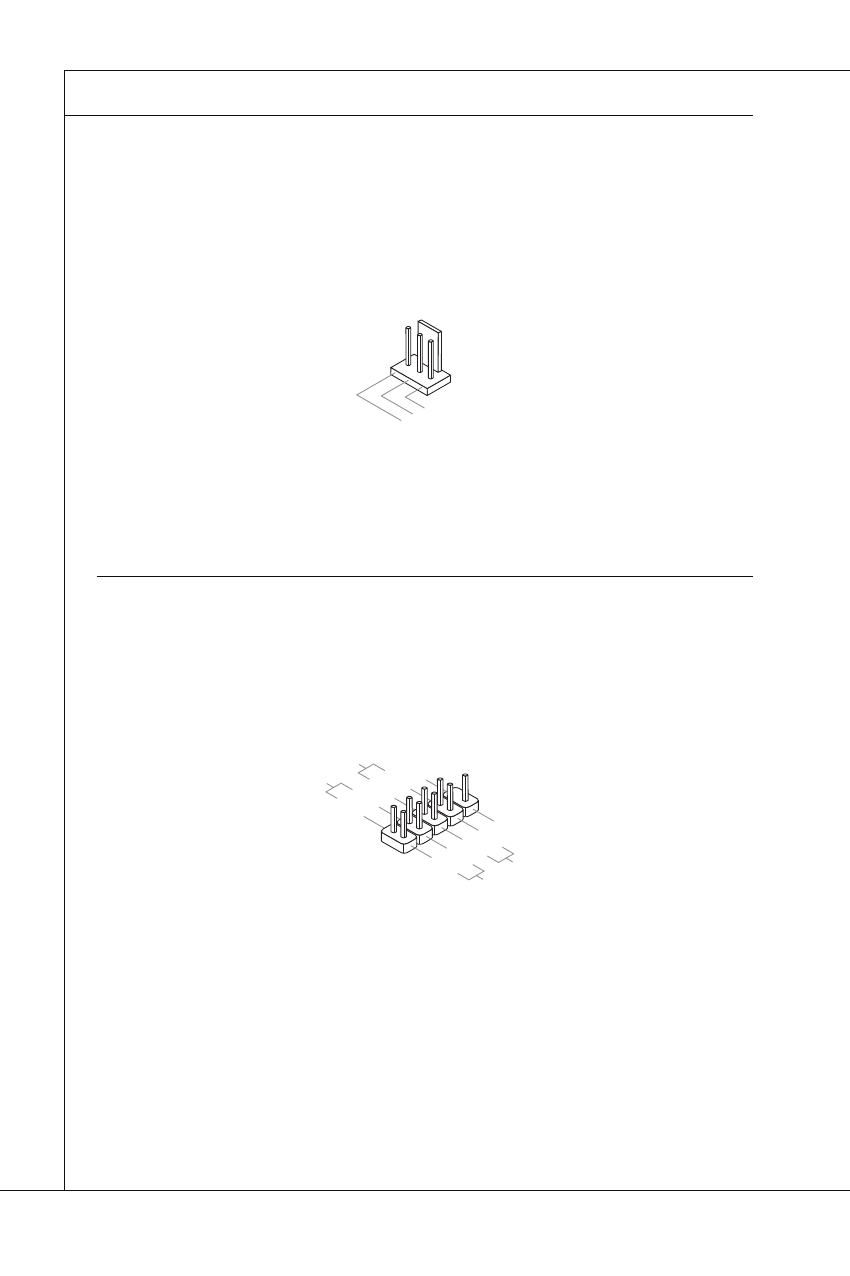

Fan Power Connectors: SYSFAN1~2

The fan power connectors support system cooling fan with +12V. When connecting the

wire to the connectors, always note that the red wire is the positive and should be con-

nected to the +12V; the black wire is Ground and should be connected to GND. If the

mainboard has a System Hardware Monitor chipset on-board, you must use a specially

designed fan with speed sensor to take advantage of the CPU fan control.

1.G

roun

2.+1

3.S

ens

Front Panel Connectors: JFP1

The connector is for electrical connection to the front panel switches and LEDs. The

JFP1 is compliant with Intel

Front Panel I/O Connectivity Design Guide.

1.+

3.-

5.-

Rese

t S

witc

HDD

Switch

LED

7.+

9.Reser

ved

8.-

6.+

4.-

2.+
