General Description
The V300 Stroke Rate Controller provides preci-
sion flow control for FMI variable speed "V" Series
pumps. The V300 accomplishes this by varying
the pump stroke rate from 5% to 100% of the
drive’s rated speed range of 90 to 1800 Strokes
per Minute (SPM) or 5-50 strokes. The complete
pump system consists of the V300 Controller and
a variable speed "V" Series Pump. The V300 and
pump are connected via a single cable (standard
length is 4 meters while optional extension cables
up to 20 meters are readily available).
The pump is comprised of a 90 volt DC pump drive
module (PDM) with integrally mounted pump head
module (PHM), and is available in two configura-
tions, QV and RHV, to accommodate FMI's full
range of pump head sizes.
V300 Features:
• 3 1/2 Digit LCD displays percent of Flow/Speed.
• Selectable Manual or Analog flow rate control.
• Manual setting of flow rate with 0.1%
adjustability

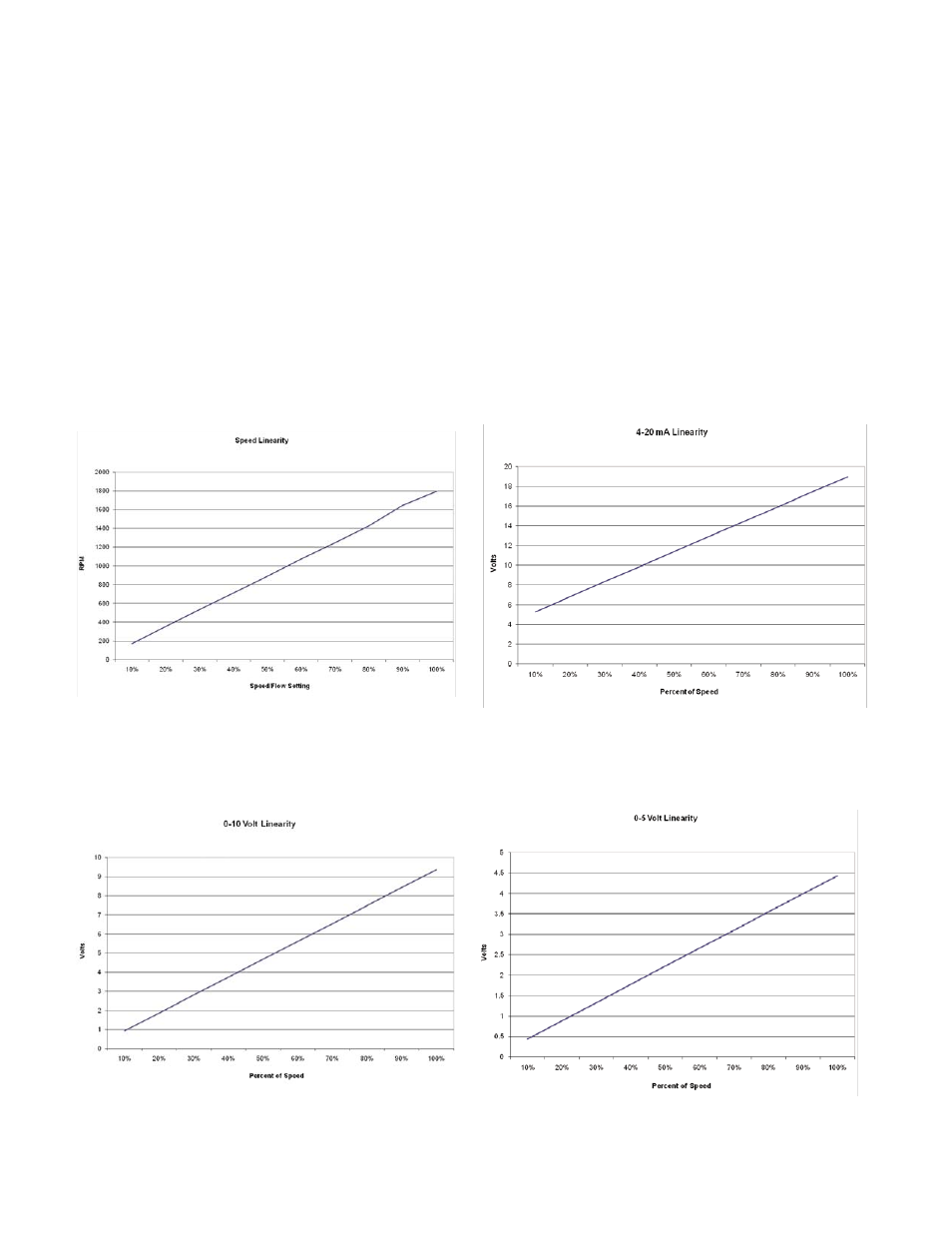

• Analog Input selectable 4-20 mA, 0-5 VDC, and
0-10 VDC input for communication with proces in-
strumentation.
• Start, Stop, and Reverse Flow while maintaining
flow settings.
• Current fold back eliminates stalled motor/ elec-
tronics damage.
• Universal Power accepts 100-240 VAC 50/60 Hz
• Quick connections for power, analog input, and
pump modules.• Rugged, An odized Aluminum
Enclosure designed for bench-top or wall
mounting.
10
IN-Q431-09A
V300 STROKE RATE FOR
CONTROLLER
FOR
MODELS QV, Q2V, QVG50, & RHV
For more information refer to our W300 Instruction manual available at our website at www.fmipump.com under literature.
