2.4 Setup Window
The evaluation software provides access to the CS5464's internal registers through the Setup window.
See Figure 8. The user can enter the Setup window by pulling down the Menu menu and selecting Setup
Window, or by pressing on the keyboard.
In the Setup window, all of the CS5464's registers are displayed in hexadecimal notation and are decoded
to provide easier readability. Refer to the CS5464 data sheet for information on register functionality and
definitions. See Figure 8.

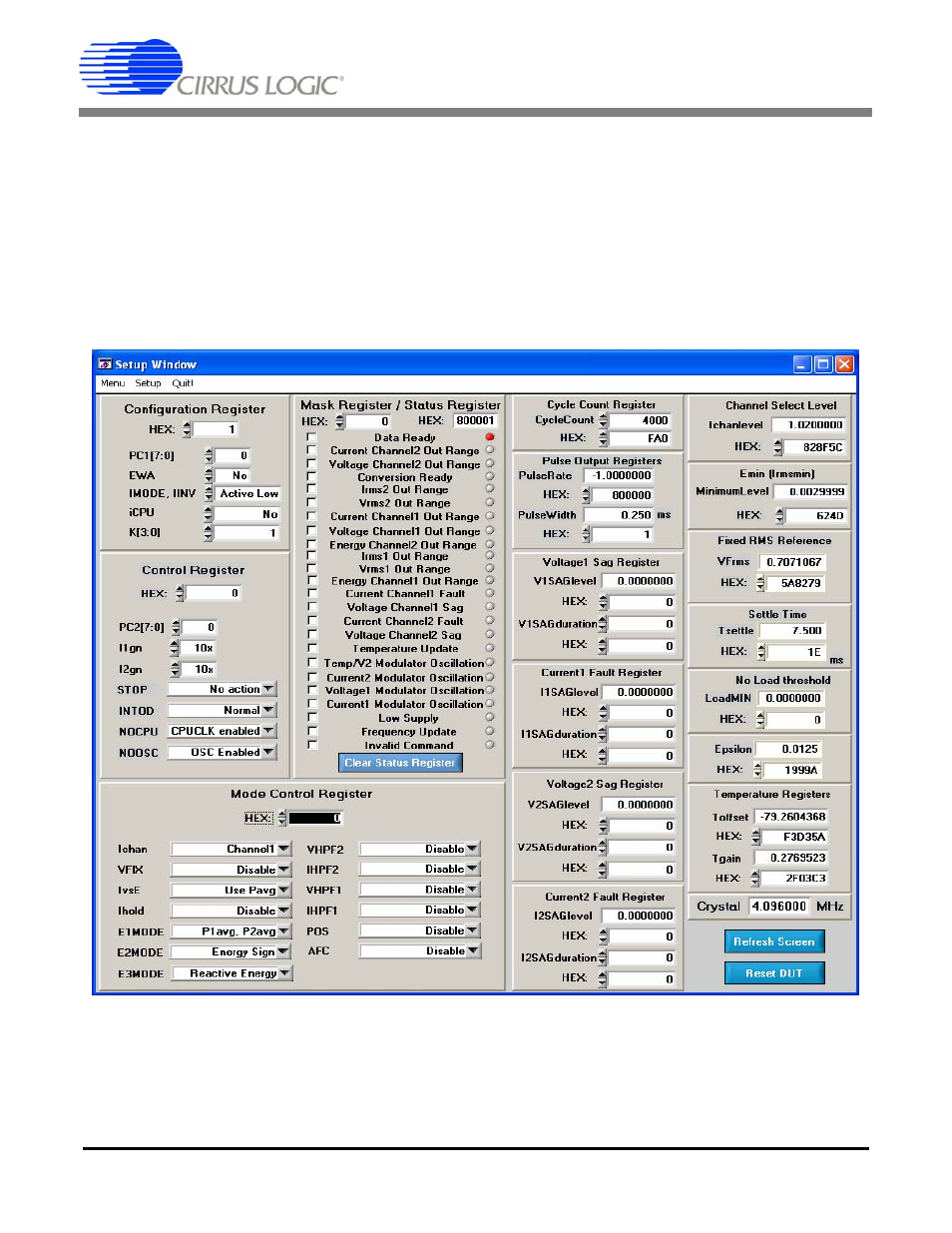

Figure 8. Setup Window
