CDB5464U

10

DS847DB1

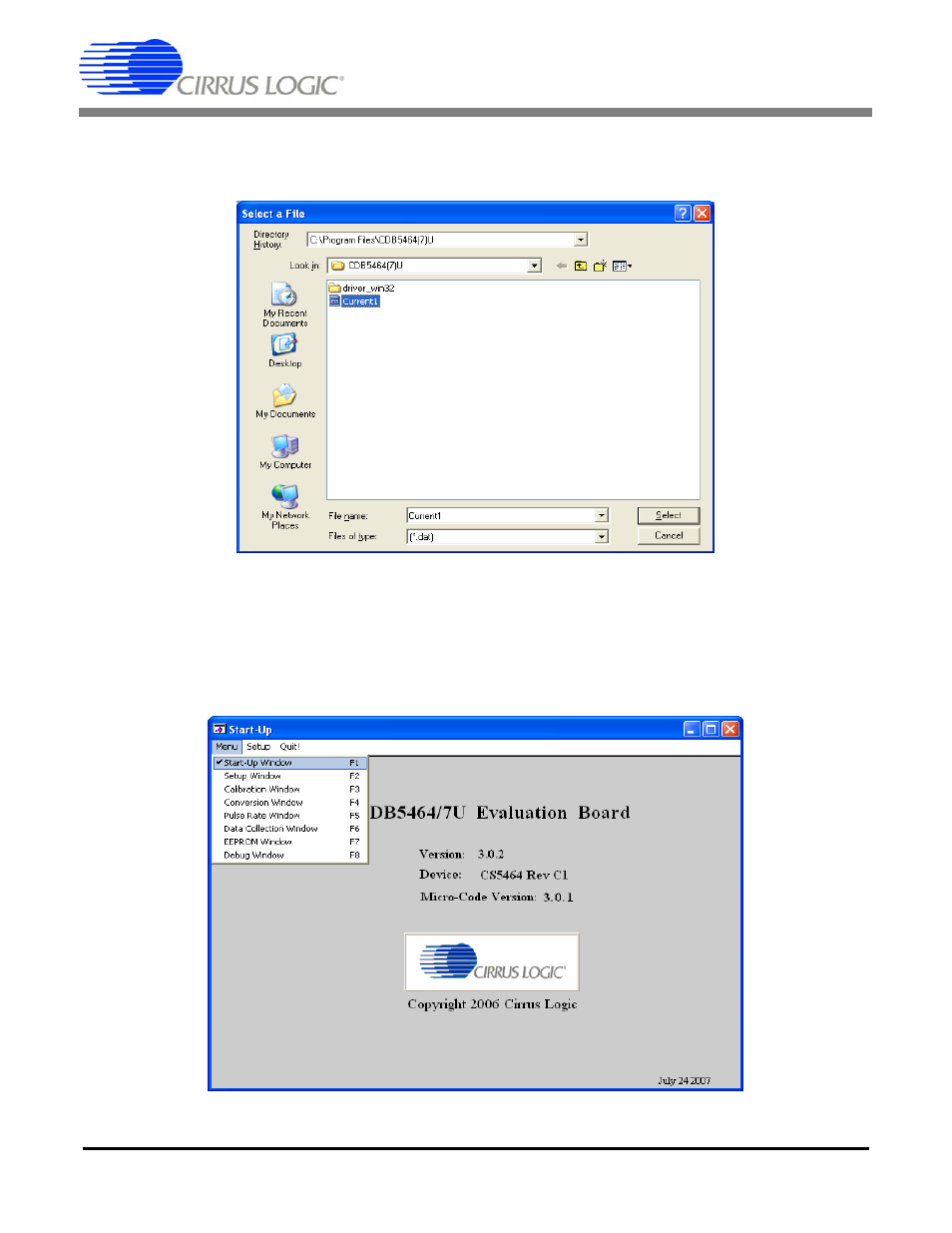

If the Data from Disk item in the Setup menu is selected, a file selection window will appear as shown in
Figure 5. User can select a pre-saved data file for further analysis using time domain, FFT, and histogram
plots in Data Collection Window of the software.

Figure 5. Data from Disc File Selection Window

2.3.2

Menu Pull-down

Excluding the Start-Up window, the Menu pull-down provides 7 options: Setup Window, Calibration Win-
dow
, Conversion Window, Pulse Rate Window, Data Collection Window, EEPROM Window, and Debug
Window
. Each window provides a means to evaluate the different functions and performance of the
CS5464. Each option has an associated function key (, , etc.). See Figure 6.

Figure 6. Menu Pull-down Options
