CRD5463PM
8
DS805RD2
Quit allows the user to exit the evaluation software. Upon selecting Quit, a message windows appears
and queries if exiting the evaluation software is desired.

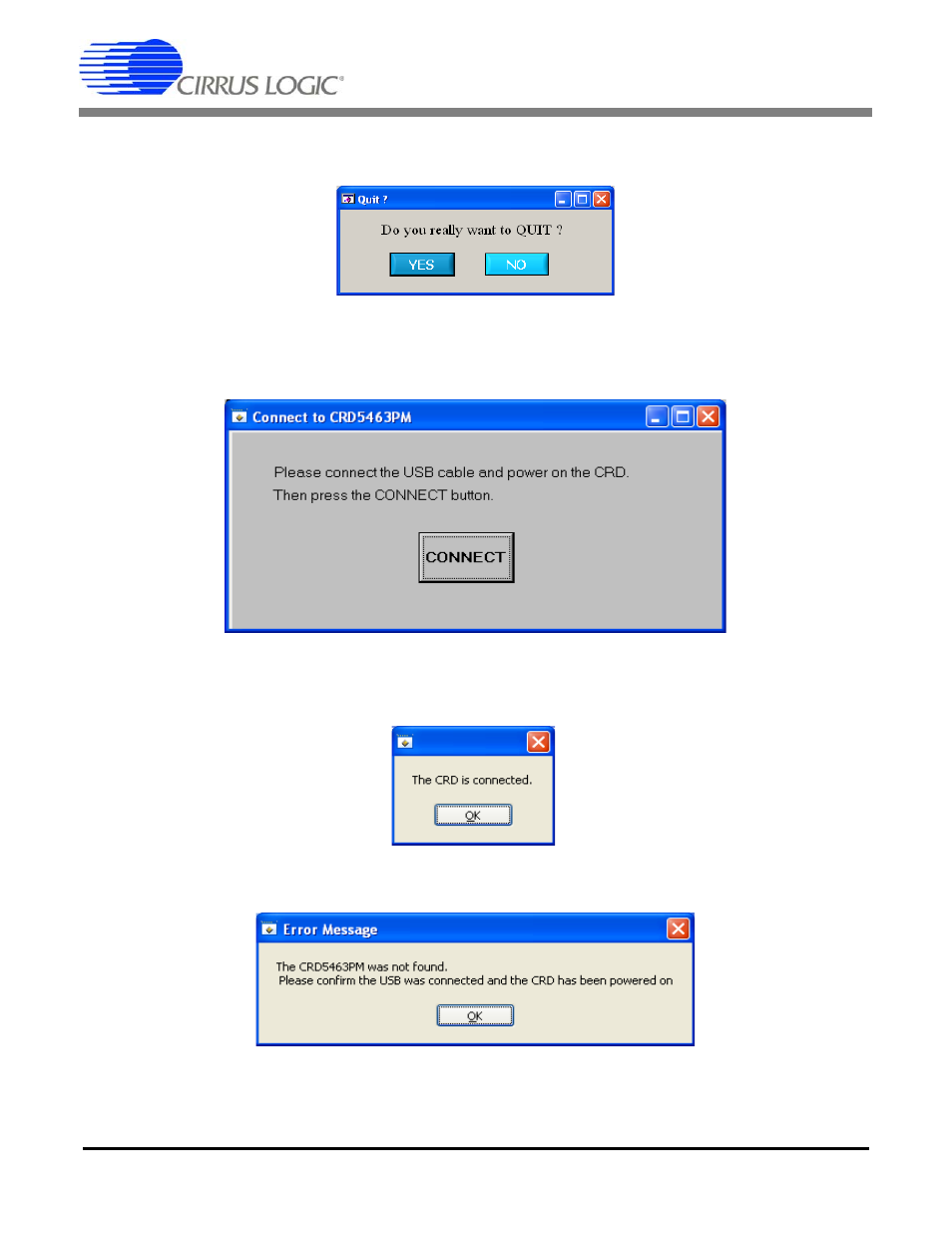

Figure 8. CRD5463PM GUI Quit Dialog
4.4 Connect
After Connect to the CRD is selected under this menu, a sub-window will appear.
Figure 9. CRD5463PM GUI Connect to CRD5463PM Window
Follow the instructions on the Connect to CRD5463PM window and the The CRD is connected. message
will pop up if the connection has been established correctly.
Figure 10. CRD5463PM GUI Successful Connection Message
Otherwise a error message will appear, indicating that the initial communication has failed.
Figure 11. CRD5463PM GUI Connection Error Message
Check to verify that the USB cable and power cord are connected properly and the power switch is at the
ON position.
