Cirrus Logic CRD5463PM User Manual
Features, General description

Copyright
Cirrus Logic, Inc. 2010
(All Rights Reserved)

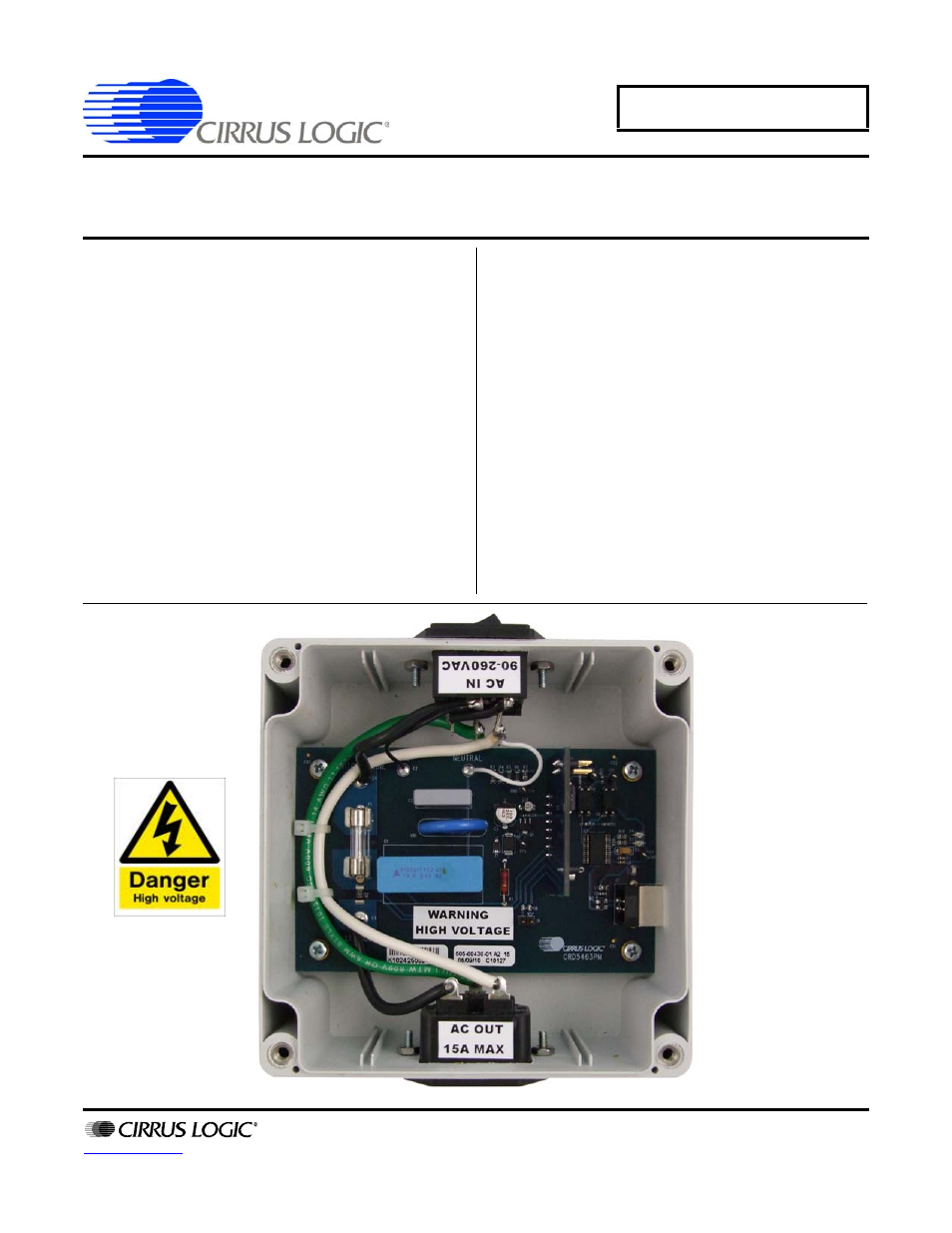

Actual Size:
120mm x 120mm x 60mm
AC Load
AC Line
Input/Switch
USB Port
CRD5463PM
CRD5463PM Power Monitor
Reference Design and Software
Features
Easy Plug-and-play Design
USB Communication with PC
Real-time Measurements:
– Line Voltage
– Load Current
– Active Power
– Reactive Power
– Apparent Power
– Power Factor
– Line Frequency
– Temperature
Operational Voltage: 90 ~ 260 VAC
Maximum Load Current: 15 A RMS
Active Power Measurement Accuracy:
– 0.2%, 3 ~ 3900 W
Lab Windows™/CVI™ GUI Software
Factory Calibrated, Re-calibration Capable
General Description
The CRD5463PM demonstrates the CS5463 power
measurement IC. It has an integrated AC-DC power supply,
voltage and current sensors, and isolated UART/USB
interface. Working with the GUI software, it provides accurate
real-time measurements of line voltage, load current, line
frequency, active power, reactive power, apparent power,
power factor, and temperature.
The CRD5463PM includes two power cords, a USB cable, and
a plug adaptor. When used with a PC, the CRD5463PM
immediately becomes a high-precision power meter. The
UART interface communication protocol, GUI, and MCU
software source codes are also available from Cirrus Logic.
The CRD5463PM is a useful design reference and evaluation
tool for customers to develop power metering/monitoring
systems that use the CS5463 IC.
ORDERING INFORMATION
CRD5463PM Power Monitor Reference Design
OCT ‘10
DS805RD2
Document Outline
- Features
- 1. Characteristics and Specifications
- 2. System Overview
- 3. SOFTWARE CONTROL
- 4. Installation Procedure
- 5. Schematic
- 6. Bill Of Materials
- 7. Board LayouT
- 8. Revision History
