CS485xx Firmware User’s Manual:

General Overview and Common Firmware Modules

Contents

 Document Strategy

 Overview

 Firmware Messaging

 OS Firmware Module

 Audio Manager Firmware Module

 PCM Firmware Module

 Low Power Mode

 Watchdog Timer

 Document Revisions

Overview

AN298 provides a description of the operation of firmware
for the CS485xx family of DSPs. This document gives a
general overview to the family of CS485xx Firmware
User’s Manuals designated by the general name
AN298[X][Y]; where [X] = MPM (Matrix Processing
Module), VPM (Virtual Processing Module), PPM (Post
Processing Module), and [Y] = A,B,C, etc. Note that the
CS485xx family of DSPs does not contain a compressed
data decoder.

More specifically, the purpose of this document is to serve
as an introduction to the various DSP Firmware designed
specifically to run on the CS485xx DSP. This document will
attempt to explain frequently used terminology and, at the
same time, systematically explain the OS operation and
communication for the CS485xx.

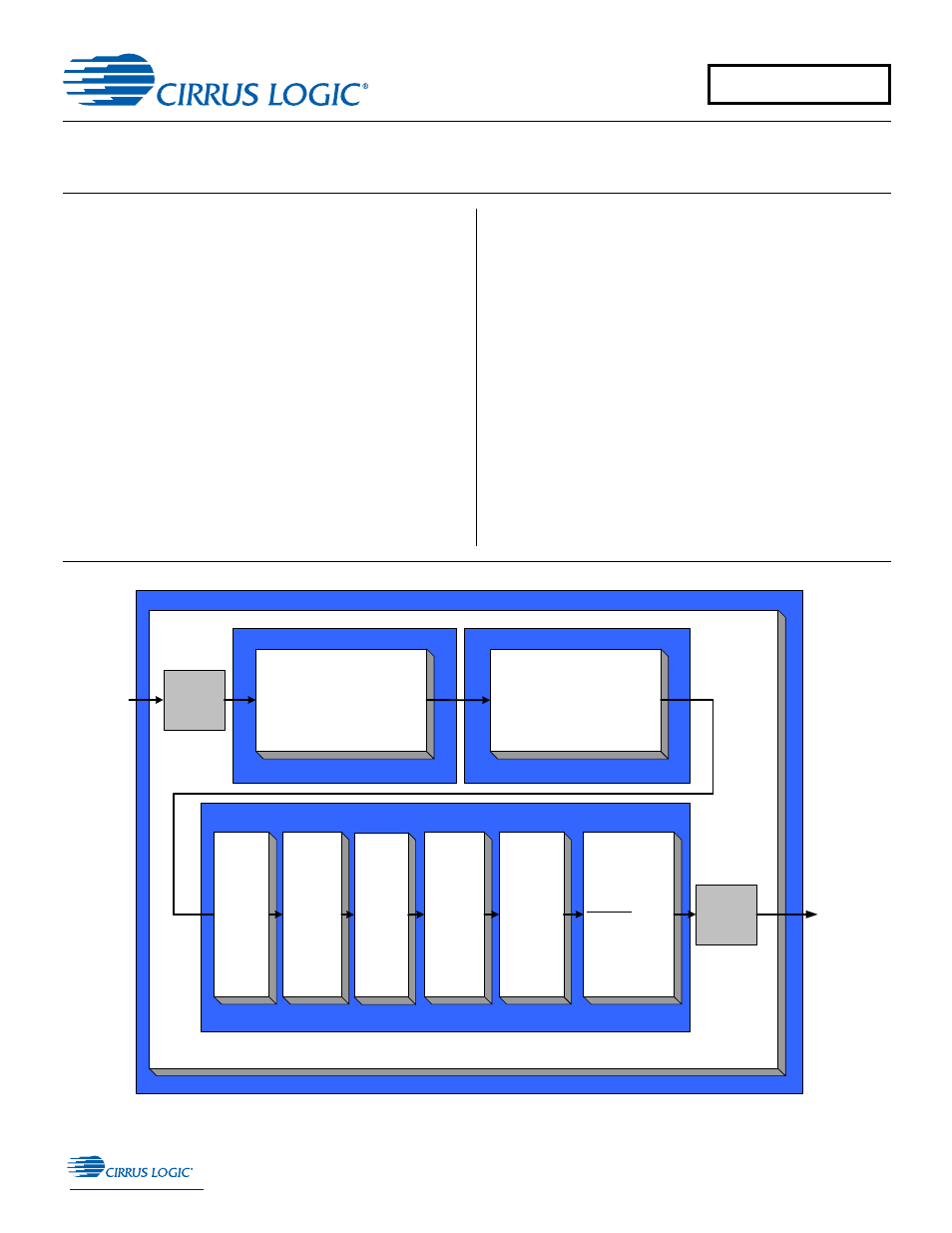

CS485xx Block Diagram

Mid-Processor Overlay

PCM Outputs

Post-Processor Overlay (with APP loaded)

ID = 0x83

ID = 0xD9

ID = 0xD5

ID = 0xD4

Tone

Control
Module

Re-Eq

Module

Bass

Management

Module

Parametric

EQ

Module

Delay

Module

Audio Manager

Module

Includes:
Gain (master)
Mute (master)
Channel Trim
Channel Remap

Up-sampler

Mid-Processor Module

e.g. PLII, PLIIx, Neo6, Crossbar,

Viva+, COMS2, Neural Surround,

Circle Surround 2

Virtualizer-Processor

Module

e.g. DVS2, DH2, SRS TSXT,

Audistry

Virtualizer -Processor Overlay

Mid-Processor Overlay

PCM inputs

Down-

sampler

AN298

AN298RC14

MAR '13
