Copyright

Cirrus Logic, Inc. 2009

(All Rights Reserved)

http://www.cirrus.com

CS4207 HD Audio CODEC Development Platform

Features

Demonstrates Recommended Layout and
Grounding Arrangements

Analog I/O Use Standard 1/8” (3.5 mm) or 1/4”
(6.35 mm) Jacks With Presence Detection

Analog Inputs (Passive)

Single-ended and Differential MIC Inputs

Single-ended Stereo Line-level Input

Analog Outputs (Passive)

Stereo Headphone Output with Test Loads

Single-ended and Differential Line Outputs

Digital I/O

Optical S/PDIF I/O Jacks

Digital MIC Input Headers

HD Audio Bus Headers

CS4207 GPIO Header

Powered by HDA Bus Connection to PC

Optionally Powered by Bench Supply or PC
Peripheral Power Supply Cable (Molex)

Configured by Hardware Jumpers

Power Supply Sources, Analog I/O Settings

Current Sense Resistors for CS4207 Supplies

Description

The CDB4207 is a flexible development platform de-
signed for easy evaluation of the CS4207 HD Audio
CODEC. Evaluation requires a PC with an HD Audio
Bus connector and an analog or digital audio signal
source for recording. Analog I/O is provided via 1/8” or
1/4” jacks. S/PDIF I/O is provided via optical connec-
tors. Two identical HD Audio Bus headers are provided
for connection to a PC.

The CDB4207 is configured via hardware jumper set-
tings to set up the analog I/O circuitry and select a
source for each CS4207 power supply rail. The analog
inputs and outputs support several signal types for com-
patibility with a variety of signal sources and analyzers.
The CS4207 can be powered from the HD Audio Bus
header, a PC peripheral power supply cable, or external
power supplies. Current sense resistors are included for
easy power calculations during system development.

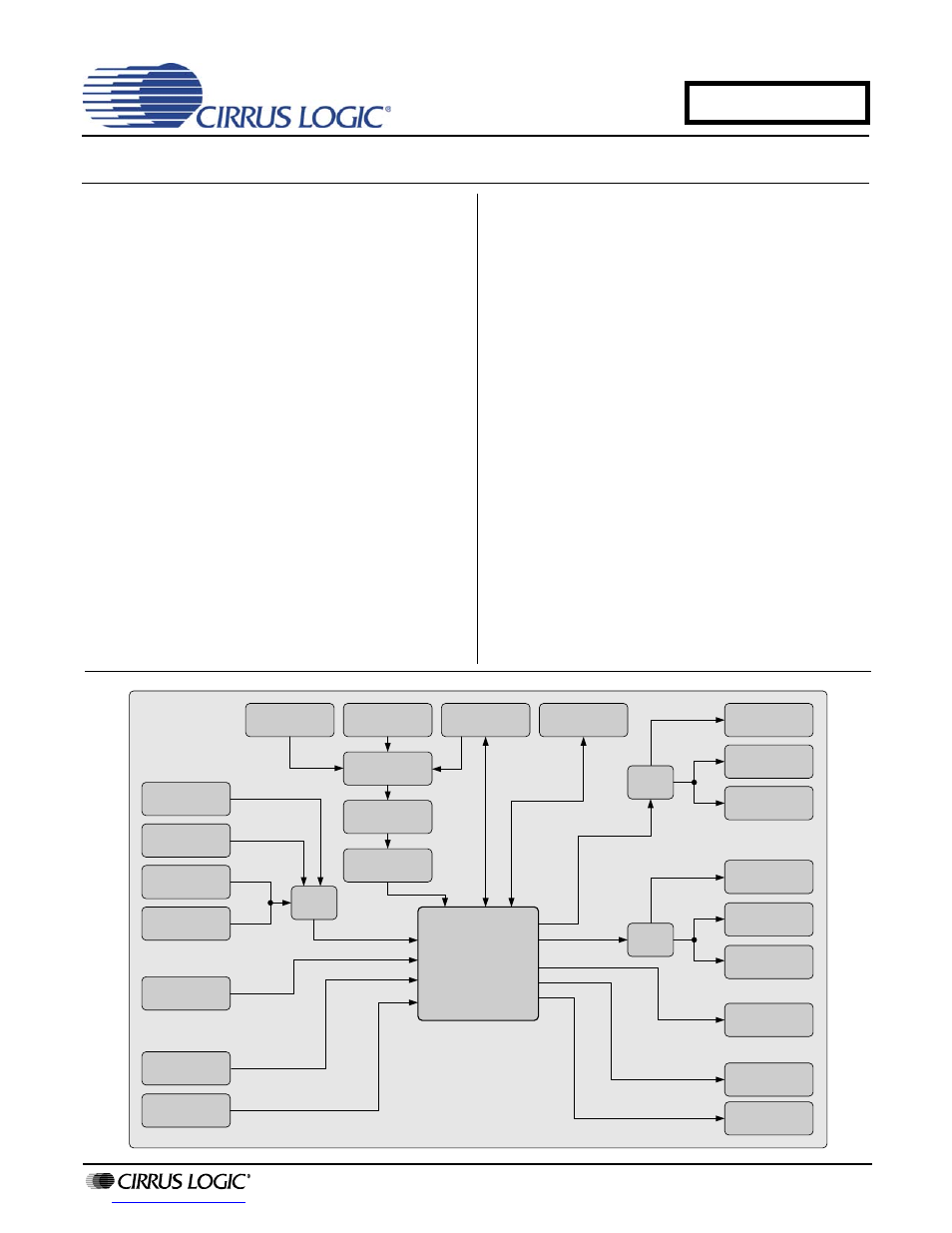

ORDERING INFORMATION

CDB4207

Evaluation Board

CS4207

Lineout 1

Stereo

MICIN Mono

MICIN Stereo

Line In Stereo

Lineout 2

Stereo

Lineout 2

Balanced Left

Lineout 2

Balanced Right

*

these connectors have presence detection

Headphone

Output

Optical

S/PDIF In

Optical

S/PDIF Out 1

Optical

S/PDIF Out 2

HD Audio Bus

Headers

CS4207 GPIO

Header

CS4207

Supplies

Regulators

Current Sense

Resistors

Digital Mic

Headers

External Bench

Supplies

PC Peripheral

Power

Jumper

Select

MICIN Balanced

Left

MICIN Balanced

Right

Jumper

Select

Lineout 1

Balanced Left

Lineout 1

Balanced Right

Jumper

Select

*

*

*

*

*

CDB4207

NOV '09

DS880DB1
