ANALOG CHARACTERISTICS
Notes: 4. Guaranteed by design and/or characterization.
5. Tested with a full scale input signal of 31.25 Hz.
Parameter Symbol
CS3301A
Unit Min Typ Max
Noise Performance
Input Voltage Noise f
0
= 0.1 Hz to 10 Hz VN
PP
- 0.18 0.40
µV
p-p
Input Voltage Noise Density f
0
= 0.1 Hz to 2 kHz VN
D
- 8.5 12.0
Input Current Noise Density ( Note 4 ) IN
D
- 100 -
Distortion Performance
Total Harmonic Distortion ( Note 5 ) x1
x2
x4
x8
x16
x32
x64
THD
-
-
-
-
-
-
- -121
-120
-120
-120
-120
-119
-116
-112
-
-
-
-
-
-
dB
Linearity ( Note 5 ) x1
x2
x4
x8
x16
x32
x64
LIN
-
-
-
-
-
-
- 0.0000891
0.0001000
0.0001000
0.0001000
0.0001000
0.0001122
0.0001585
0.0002512
-
-
-
-
-
-
%
nV/ Hz
fA/ Hz
CS3301A In-Band Noise
0
5
10
15
20
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Frequency (Hz)
No
is
e
D
e
n
s
it
y (n
V/
rt
Hz)
CS3301A Wide Band Noise
0
50
100
150
200
250
300
0.1 1 10 100 1000 10000 100000 1E+06
Frequency (Hz)
N
o
ise Den
s
it
y
(nV
/rtHz)

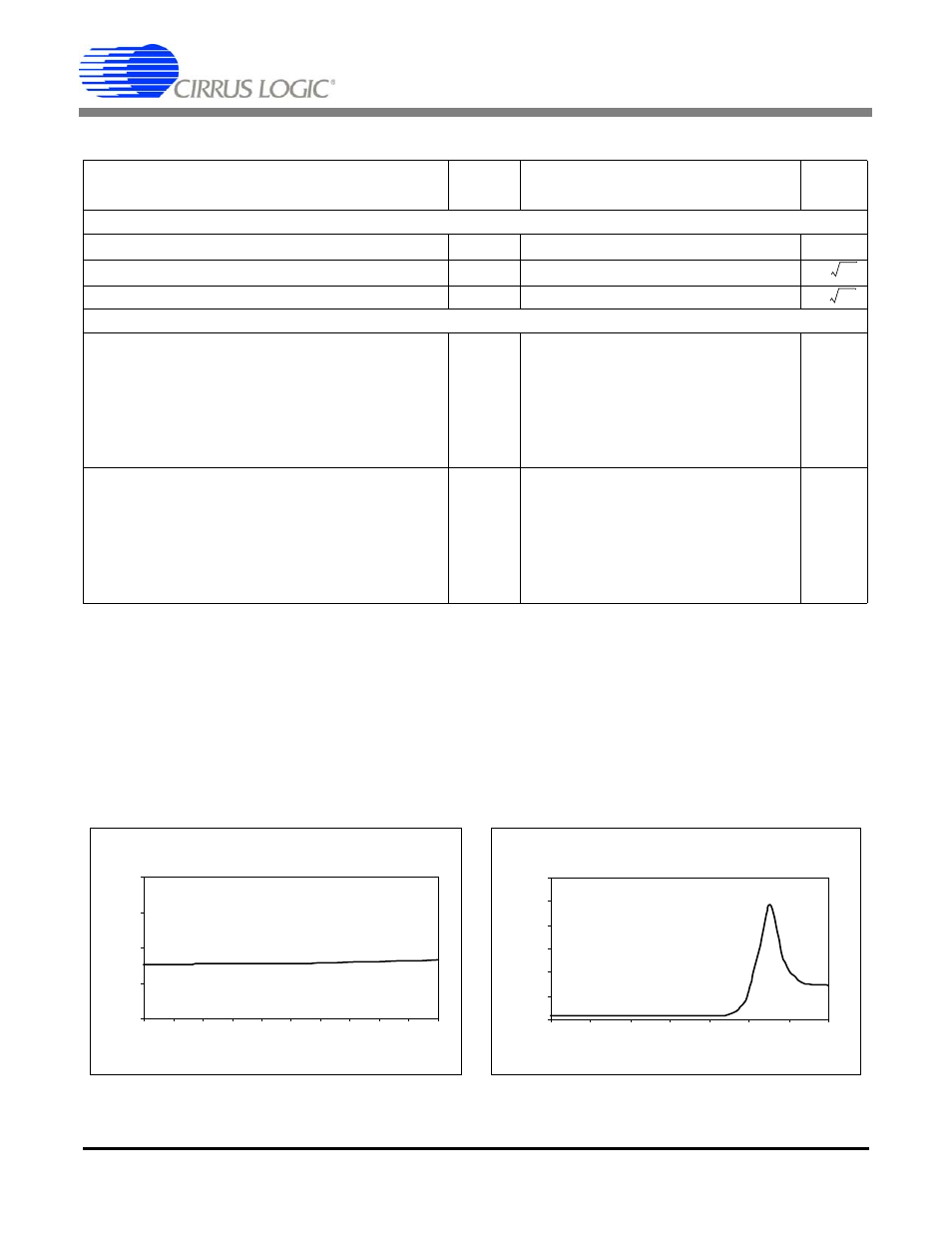

Figure 1. CS3301A Noise Performance
