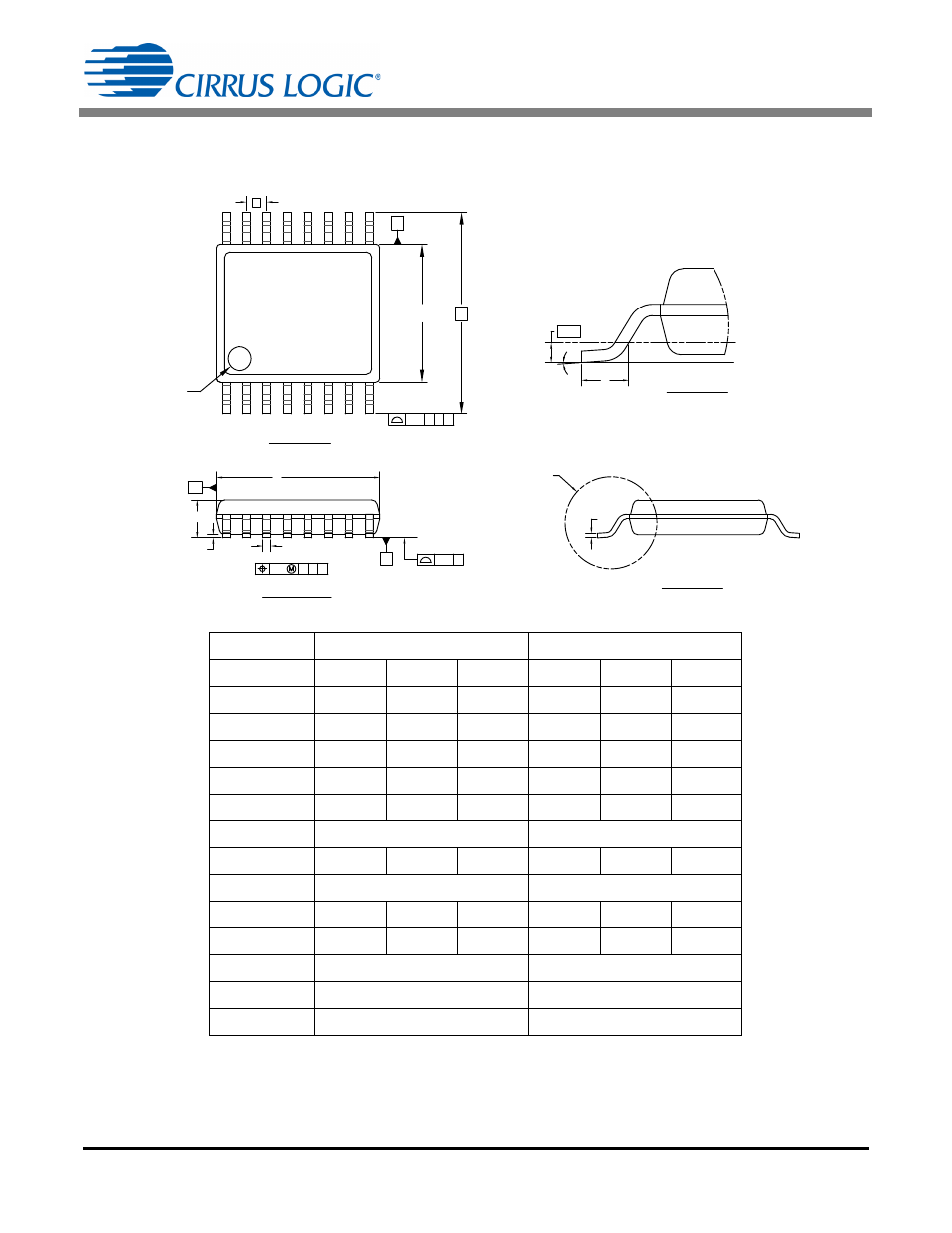

6. PACKAGE DRAWING
1. Controlling dimensions are in millimeters.
2. Dimensioning and tolerances per ASME Y14.5M.
3. This drawing conforms to JEDEC outline MO-153, variation AB.
4. Recommended reflow profile is per JEDEC/IPC J-STD-020.
mm inch
Dimension MIN NOM MAX MIN NOM MAX
A - - - - 1.20 - - - - 0.047
A1 0.05 - - 0.15 0.002 - - 0.006
b 0.19 - - 0.30 0.007 - - 0.012
C 0.09 - - 0.20 0.004 - - 0.008
D 4.90 5.00 5.10 0.193 0.197 0.201
E 6.40 BSC 0.252 BSC
E1 4.30 4.40 4.50 0.169 0.173 0.177
e 0.65 BSC 0.026 BSC
L 0.45 0.60 0.75 0.018 0.024 0.030
Θ 0° - - 8° 0° - - 8°
aaa 0.10 0.004
bbb 0.10 0.004
ddd 0.20 0.008
4&"5*/(1-"/&
1*/
*/%*$"503
& &
D
F
#
%
"
"
C
$
"
CCC $ # "
%&5"*-"
5017*&8
4*%&7*&8
&/%7*&8
Y
EEE $ # "
Y5JQT
%&5"*-"
("6(&1-"/&
- T
Y
BBB $
16-PIN TSSOP (173 MIL BODY)
