10. Special instructions for integrated pressure equalising valve ...

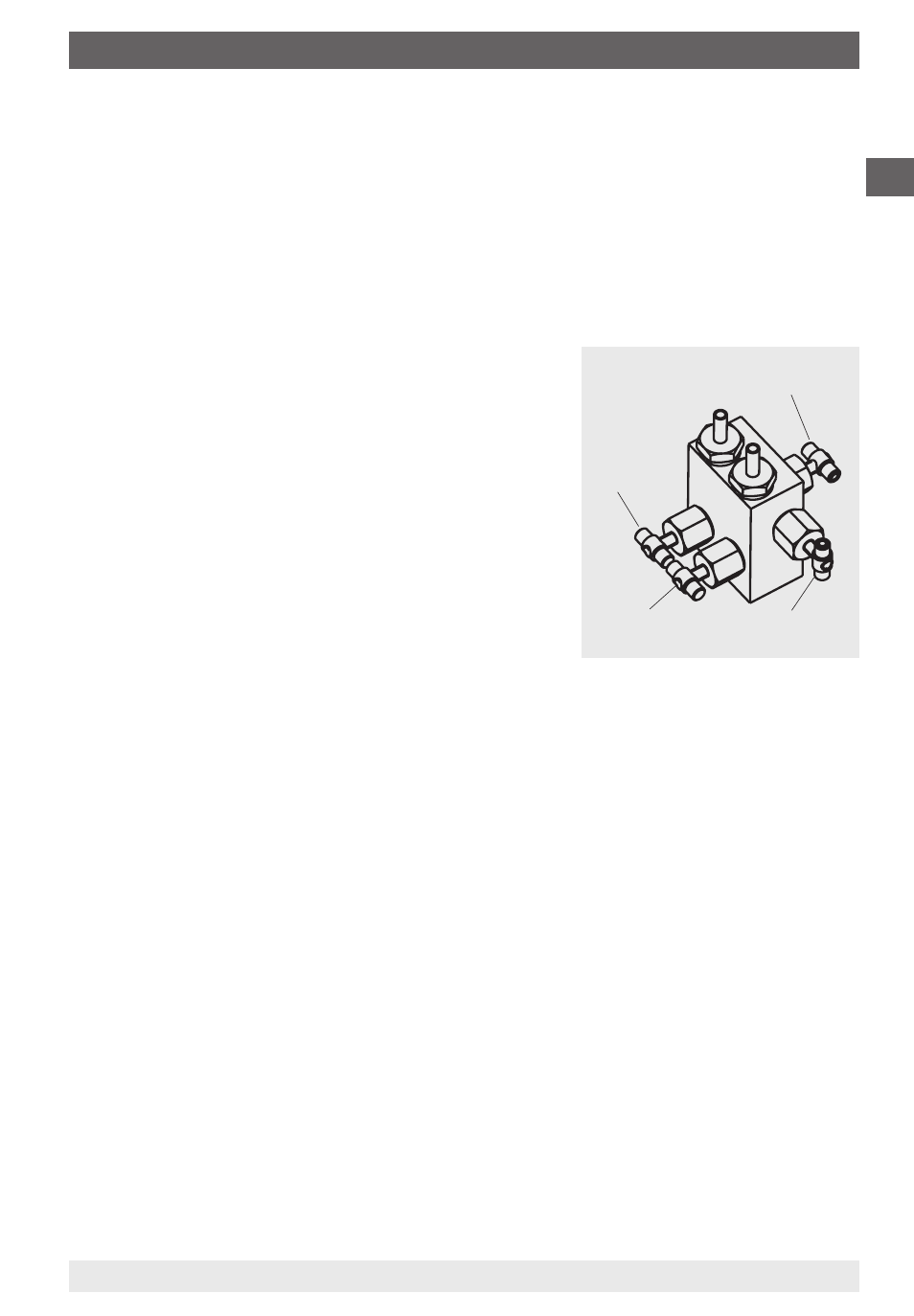

Gauge valve,
high pressure
j
-side
Gauge valve, low
pressure i-side
Pressure equa-
lising valve
Valve for purging
or bleeding air
2279453 08/2009 GB/D/F
WIKA Operating Instructions Differential Pressure Transmitter DELTA-trans 13
10.2 Four-way valve manifold
Functions
Shut off j- and i-process line for removing the transmitter from working
processes
Pressure equalisation for zero point control on working processes
Process line air bleeding
10.2.1 Handling instructions



Sequence of operations to start measuring
1. Open pressure equalising valve (middle
valve)
2. Open shut-off valve for the minus media
chamber (i) left valve
3. Open shut-off valve for the plus media
chamber (j) right valve
4. Close pressure equalising valve
Sequence of operations at the end of the
measuring operation (also for partial shut-
down of the system)
1. Open pressure equalising valve


2. Close shut-off valve for the minus media chamber (i)
3. Close shut-off valve for the plus media chamber (j)
Sequence of operations to remove the transmitter during working processes
1. Open pressure equalising valve
2. Close shut-off valve for the minus media chamber (i)
3. Close shut-off valve for the plus media chamber (j)
4.
Open valve for purging or air bleeding

