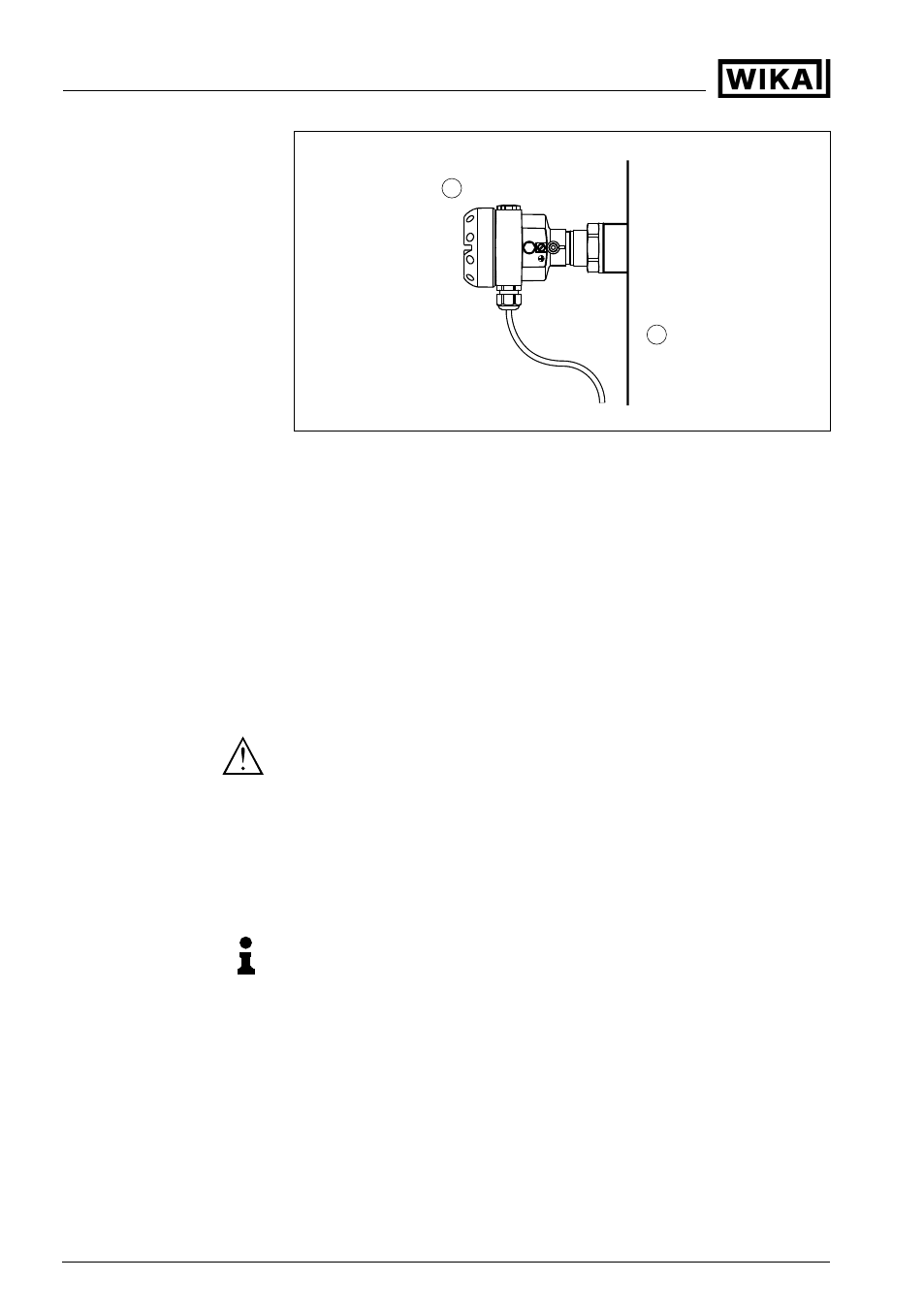

Fig. 4: Temperature ranges
1 Process temperature
2 Ambient temperature
Make sure that the upper temperature limits for the environment of
electronics housing and connection cable specified in chapter
"T
echnical data" are not exceeded.
Instruments in the version "Oil and grease free for oxygen" should be
unpacked just before mounting. After the protective cover of the
process fitting has been removed, the label "O₂" on the process fitting
is visible.
Danger:
Avoid oil, grease or contamination. Explosion danger!
4 .2 Mounting instructions
IPT-1* functions in any installation position. It is mounted according to
the same directives as a manometer (DIN EN 839-2).
2)
Information:
We recommend using lock fittings, measuring instrument holders and
siphons from the line of WIKA accessories.
4 .3 Mounting steps
To mount IPT-1*, a welded socket is necessary. Use components from
the line of WIKA mounting accessories.
à Note the applicable welding standards (segment welding proce-
dure) when welding the socket.
2) Probable position correction see chapter "Setup steps".
Oxygen applications
Mounting position
Welding the socket
