19

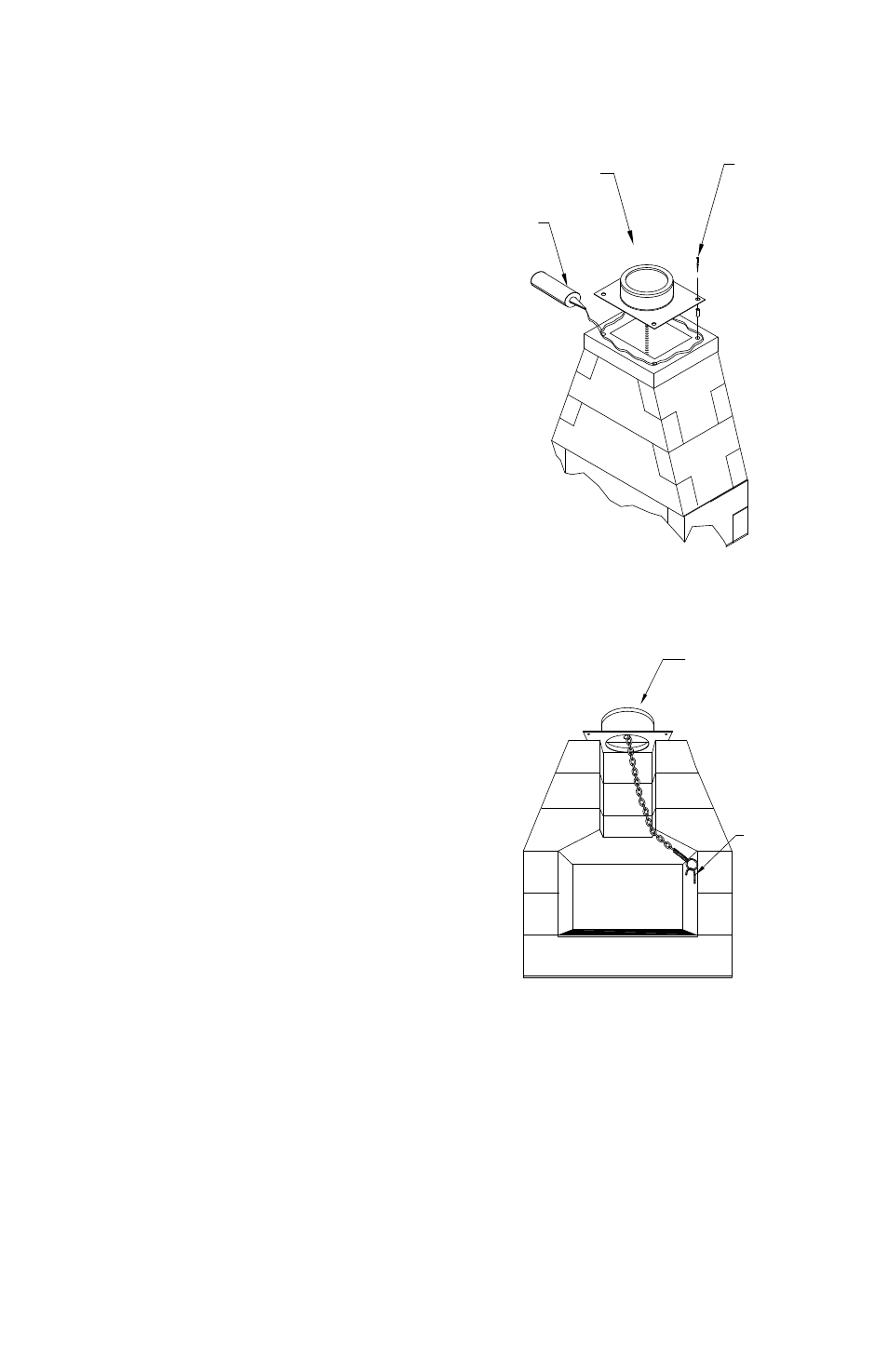

Figure 24
MASONRY
ANCHORS
ANCHOR PLATE
OR ANCHOR
PLATE WITH
DAMPER
HI-TEMP
SEALANT
tension is needed to prevent the damper plate
from rattling when closed. Mount the Lintel
Hook to the masonry with the screws provided.
4. Attach Chimney: Attach the first Chimney
Section onto the Anchor Plate by using the
sheet metal screws provided.
5. Finish Chimney: Install the rest of the
chimney as directed in the Ceiling Supported
Installation section, Steps 4 through 11.
Refer to Figure 1 and Table 4 for chimney
height requirements. Always maintain at least
2 inches of clearance to combustible materials,
and enclose the chimney where it passes
through occupied areas. The 2-inch clearance
is an air space; do not fill that clearance space
with any materials. Use a Wall Strap for every
four (4) feet of chimney height.
Figure 25
ANCHOR PLATE
WITH DAMPER
NOTE:
DAMPER PLATE
IS CLOSED WHEN
CHAIN IS HOOKED
ON LINTEL HOOK
LINTEL HOOK
