KRAMER: SIMPLE CREATIVE TECHNOLOGY
Defining the TP-145/TP-146
6
(660ft) with a Kramer TP-141/145 transmitter over TP cabling. In addition, the
TP-146 features:
• Level and Equalization control for the UXGA signal
• The capability to change the polarity of the vertical and horizontal sync signals
• 24 bit 48kHz S/PDIF digital audio
Figure 2 and Table 2 define the TP-146 UXGA/Audio/Data Line Receiver.

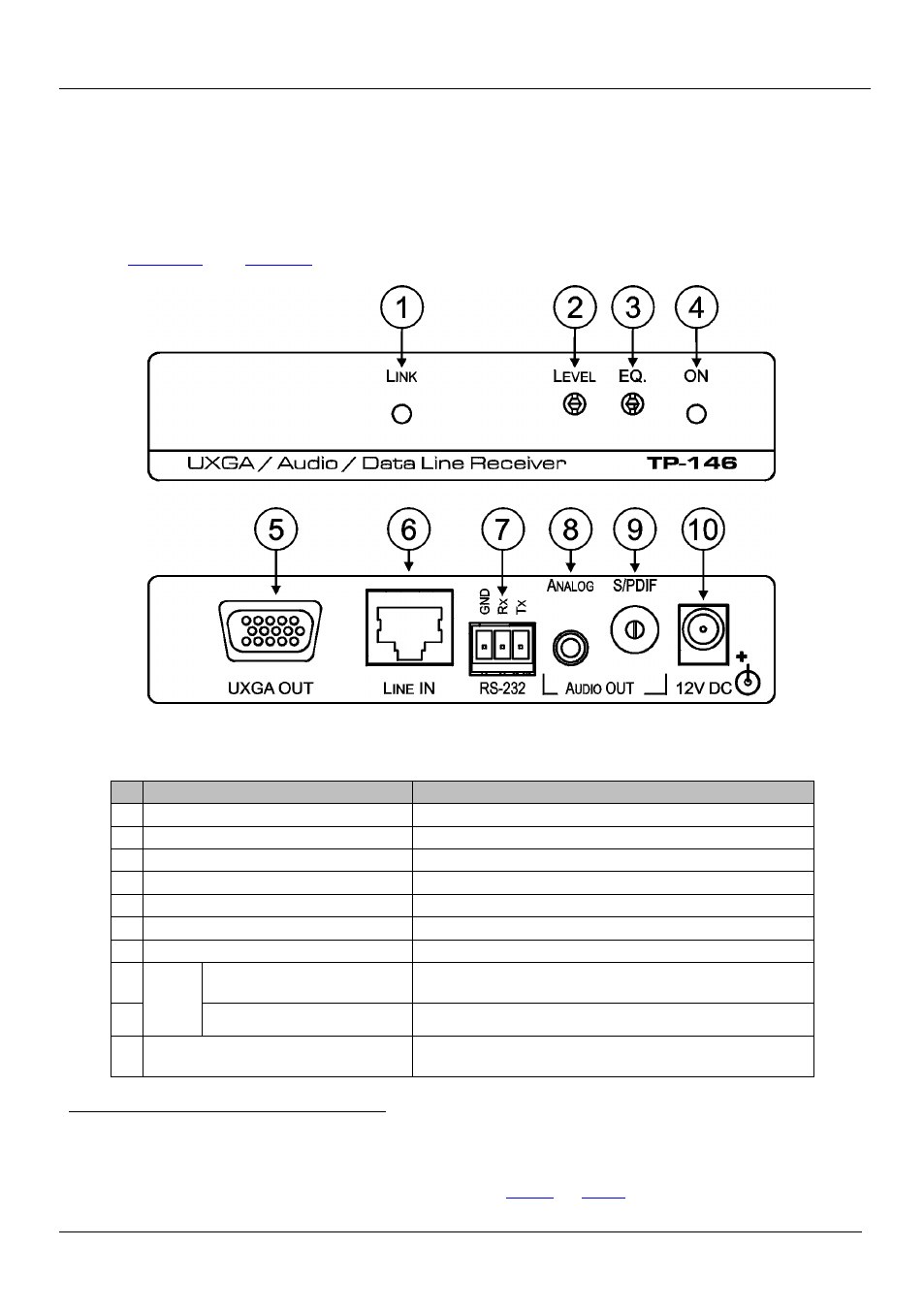

Figure 2: TP-146 UXGA/Audio/Data Line Receiver Front and Rear Panels
Table 2: TP-146 UXGA/Audio/Data Line Receiver Front and Rear Panel Features
# Feature Function
1 LINK LED Lights green when a link is established
2 LEVEL Trimmer Adjusts the output signal level
3 EQ.
1
Adjusts the cable compensation equalization level Trimmer
4 ON LED Lights green when the unit receives power
5 UXGA OUT 15-pin HD (F) Connector Connect to the UXGA acceptor
6 LINE IN RJ-45 Connector Connect to the LINE OUT RJ-45 connector
2
7
on the TP-145
RS-232 Terminal Block Connect to the controlled unit
8
AUDIO
OUT
ANALOG 3.5mm Mini
Connector
Connect to the analog audio acceptor
9 S/PDIF RCA Connector Connect to the digital audio acceptor
10 12V DC Connector Connect to the supplied +12V DC power adapter. Center pin
positive
1 Degradation and UXGA signal loss can result from using long cables (due to stray capacitance), sometimes leading to a total loss of
sharpness in high-resolution signals
2 Using a TP cable with RJ-45 connectors at both ends (pinout is defined in Figure 6 and Table 5 )
