8 TP-125xl/TP-126xl - Connecting the TP-125xl and TP-126xl
5 Connecting the TP-125xl and TP-126xl
Switch off the power to all devices before connecting them to your
TP-125xl/TP-126xl. After connecting your TP-125xl/TP-126xl, connect
the power to the transmitter and receiver and then switch on the power
to the other devices.

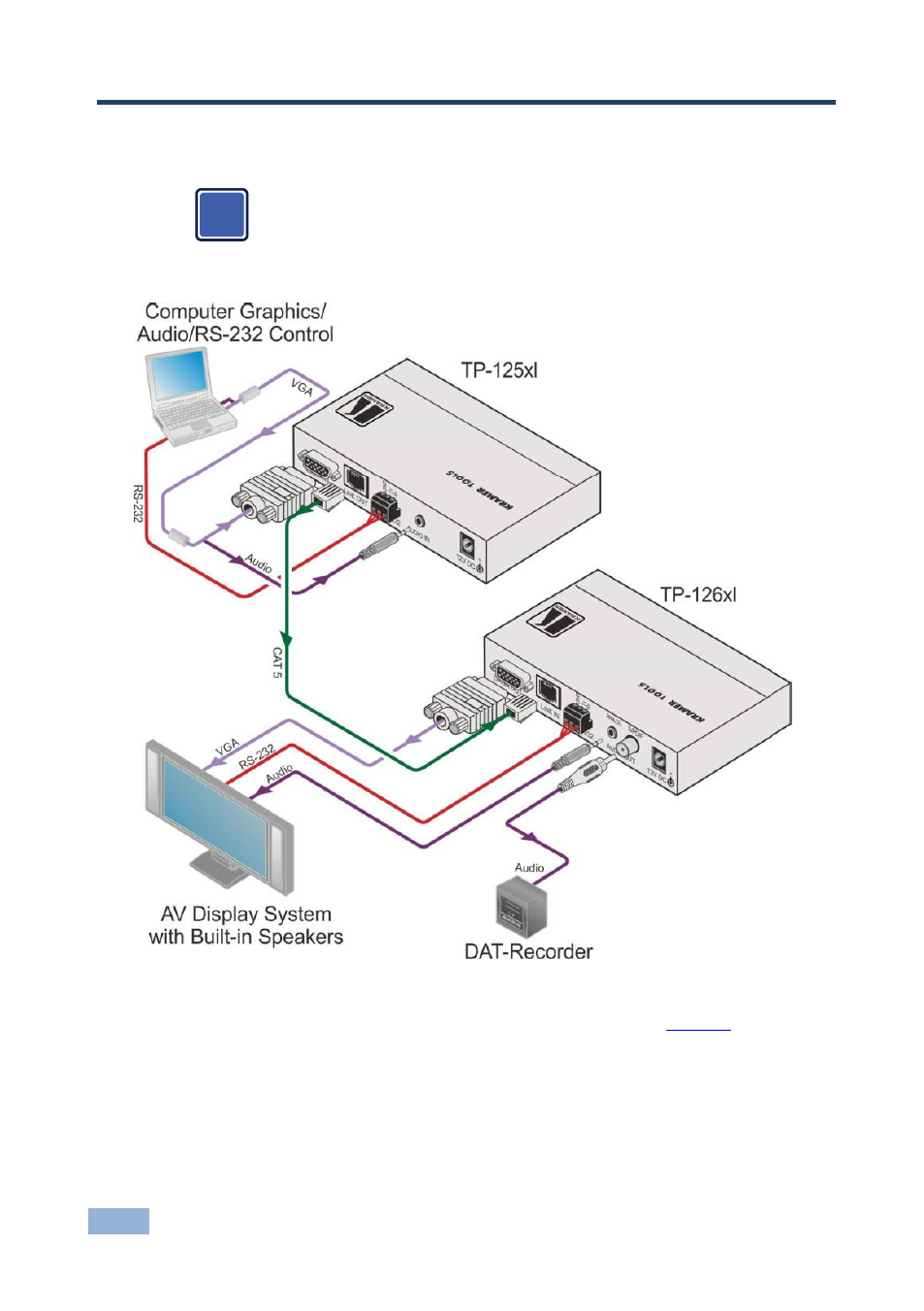

Figure 5: Connecting the TP-125xl Transmitter and TP-126xl Receiver
To connect the TP-125xl and the TP-126xl as illustrated in Figure 5 :
1. On the TP-125xl, connect:

The computer graphics video source, (for example, the graphics output
from a laptop) to the UXGA In 15-pin HD connector (F)
i
