TP-125xl/TP-126xl - Defining the TP-125xl/TP-126xl Line Transmitter and Receiver 7
7
4.2 Defining the TP-126xl UXGA/Audio/Data Line Receiver

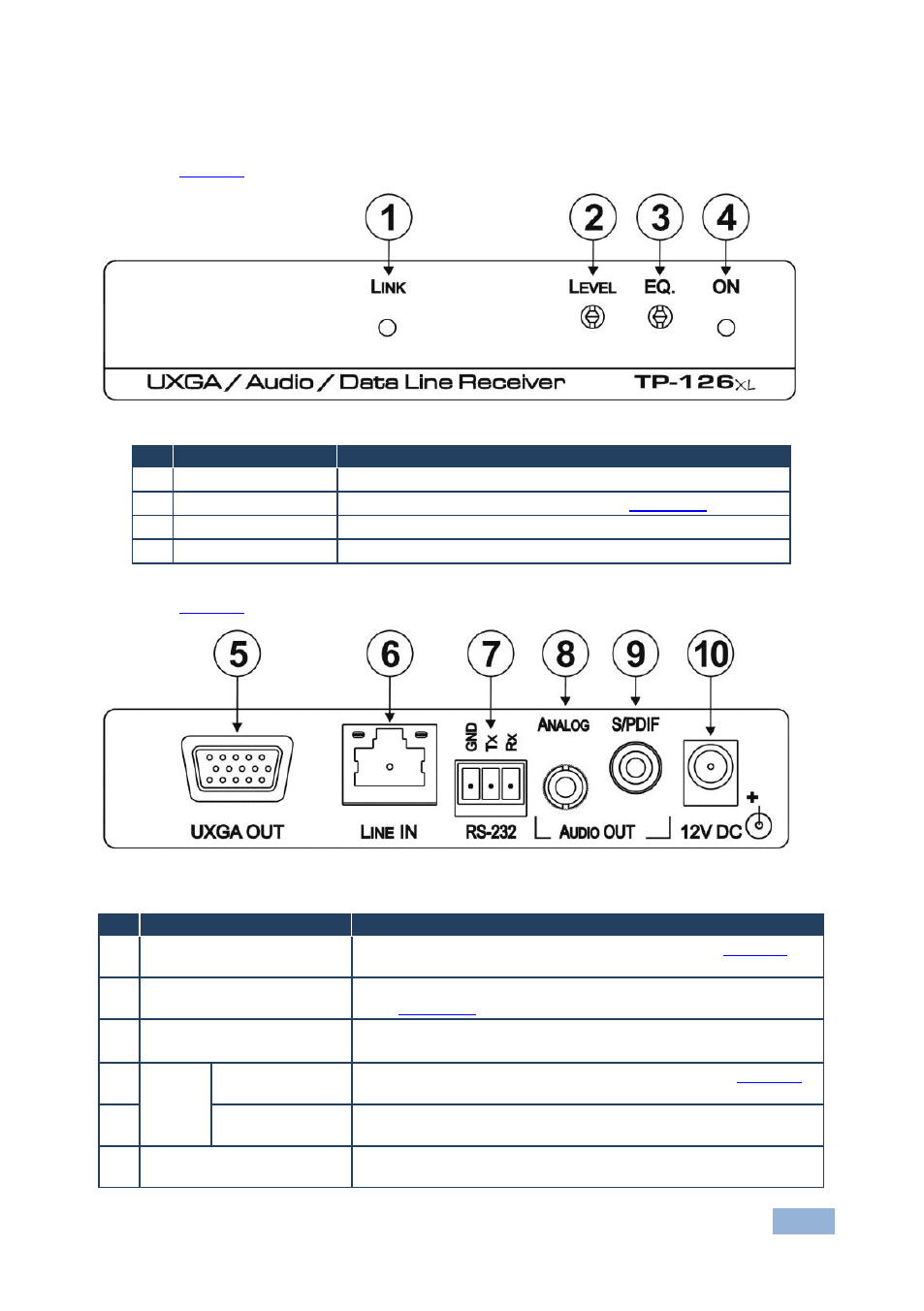

Figure 3 defines the front panel of the TP-126xl.
Figure 3: TP-126xl UXGA/Audio/Data Line Receiver Front Panel
# Feature Function
1 LINK LED Lights green when the TP link is established
2 LEVEL Trimmer Use to adjust the output signal level (see Section 6.2 )
3 EQ. Trimmer Use to adjust the cable compensation equalization level
4 ON LED Lights green when the device is powered on
Figure 4 defines the rear panel of the TP-126xl.
Figure 4: TP-126xl UXGA/Audio/Data Line Receiver Rear Panel
# Feature Function
5 UXGA OUT 15-pin HD
Connector (F) Connect to a computer graphics video acceptor (see Section 5 )
6 LINE IN RJ-45 Connector Connect to the Line Out RJ-45 connector on the TP-125xl
(See
Section 2.3 )
7 RS-232 Serial Port 3-pin
Terminal Block Connect to the RS-232 device to be controlled.
Note: The RS-232 link is bidirectional
8
AUDIO
OUT
ANALOG 3.5mm
Mini Jack Connect to an unbalanced, stereo audio acceptor (see Section 5 )
9 S/PDIF RCA
Connector Connect to a digital audio acceptor
10 12V DC Power Connector Connect to one of the supplied +12V DC power adapters. Center
pin positive
