Connecting a Video Line Transmitter/ Receiver System
5

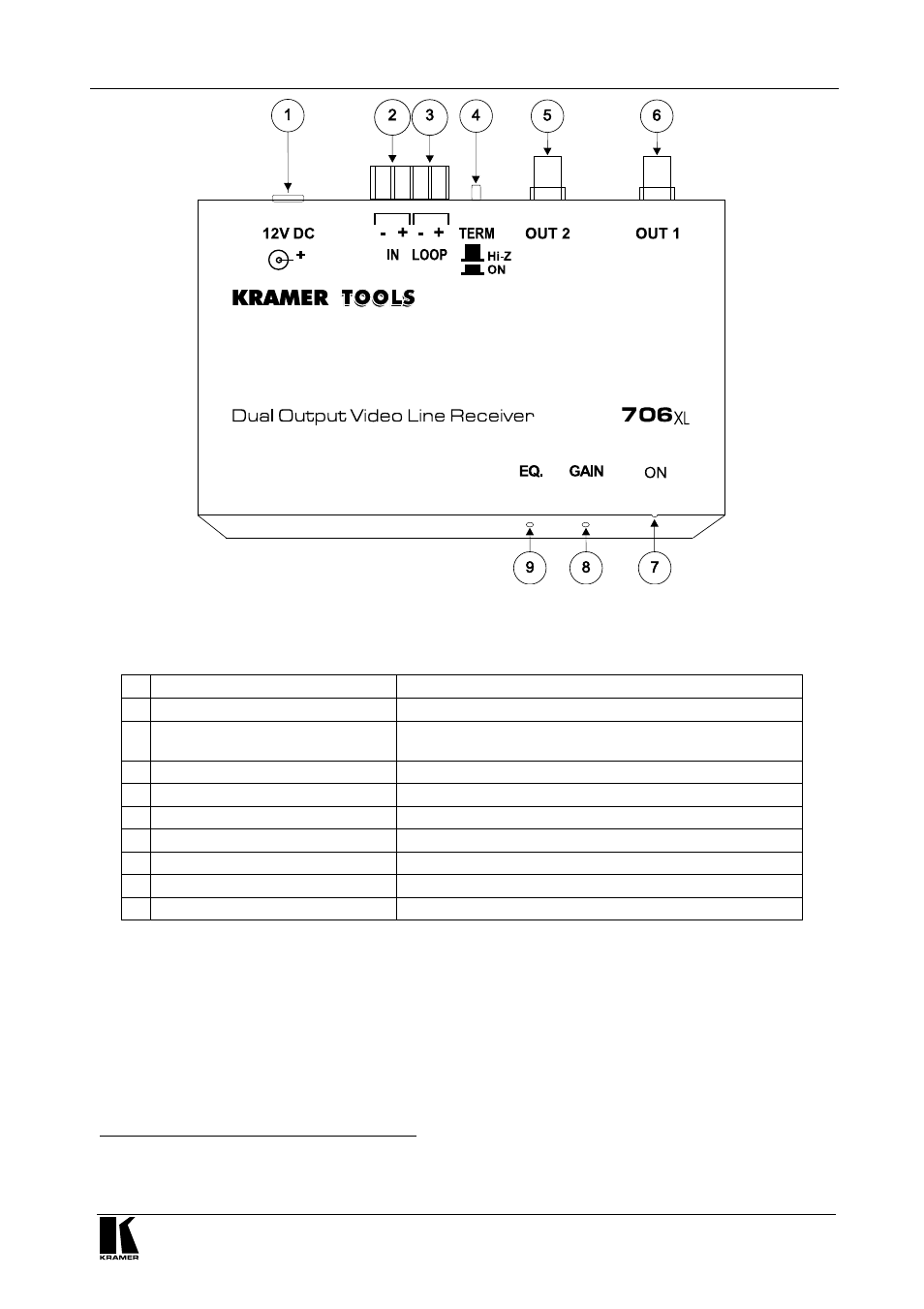

Figure 3: 706xl Dual Output Video Line Receiver
Table 4: 706xl Dual Output Video Line Receiver Features
# Feature Function
1 12 VDC +12V DC connector for powering the unit
2 IN Terminal Block Connector Connects to an output connector on a 705xl Dual Video
Line Transmitter or on a 703xl Quad Video Line Transmitter
3 LOOP Terminal Block Connector For looping (if required) the TP line
4 TERM Button
Pushing in terminates TP line; releasing selects Hi-Z 1
5 OUT 2 BNC Connector Connects to the composite video acceptor 2
6 OUT 1 BNC Connector Connects to the composite video acceptor 1
7 ON LED Illuminates when receiving power
8 GAIN Trimmer Adjusts 2 the output signal level
9 EQ. Trimmer Adjusts 2 the cable compensation equalization level
5 Connecting a Video Line Transmitter/ Receiver System
Sections 5.1 and 5.2 describe how to connect a dual video line transmitter/
receiver system, and a quad video line transmitter/ receiver system,
respectively.
1 For looping select Hi-Z
2 Insert a screwdriver into the hole and carefully rotate it, to trim the level
