FC-340 - Connecting the FC-340
6.3 Connecting the Balanced/Unbalanced Stereo Audio
Output
This section illustrates how to wire the devices to the balanced audio output:

A balanced stereo output connection, see Figure 6

An unbalanced stereo output connection, see Figure 7

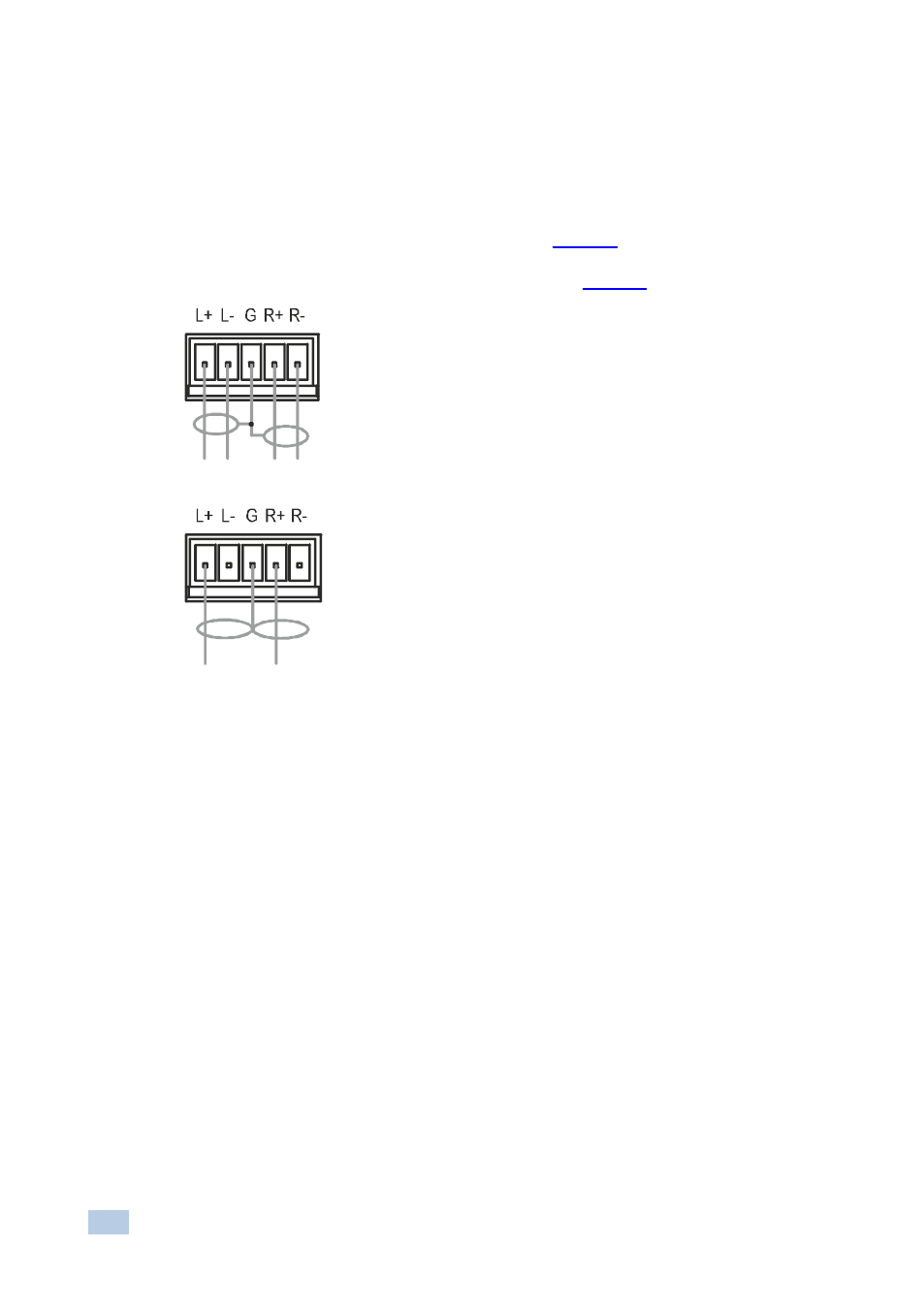

Figure 6: Balanced Stereo Audio Connection
Figure 7: Unbalanced Stereo Audio Connection
