Your RC-7B / RC-7BE

4 Your RC-7B / RC-7BE

This section defines the:

Front panel of the

RC-7B (see section 4.1)

Front panel of the

RC-7BE (see section 4.2)

Side panel of the

RC-7B and RC-7BE (see section 4.3)

4.1 Defining the RC-7B Front Panel

Figure 1 and Table 1 define the

RC-7B front panel:

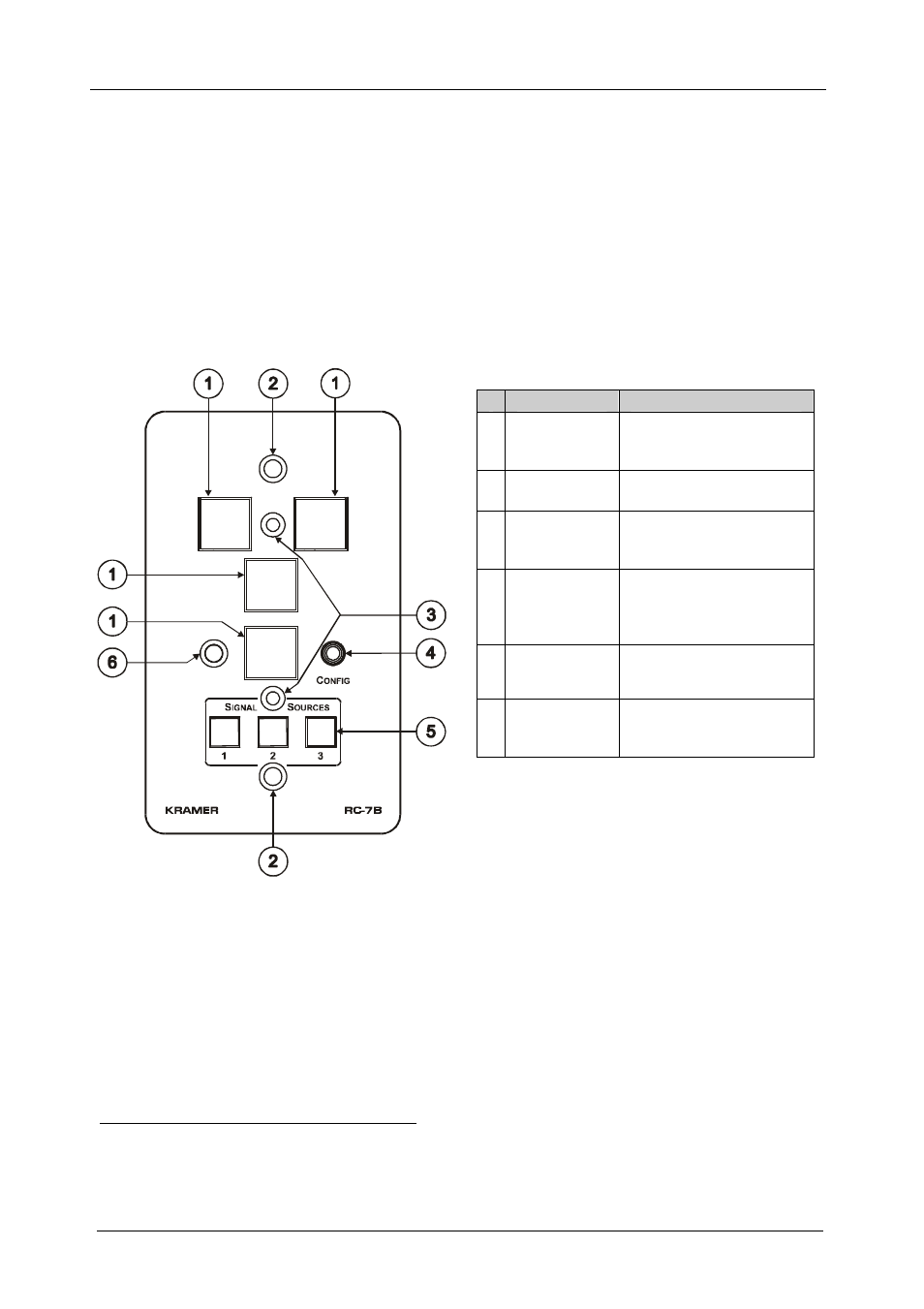

Figure 1: RC-7B Front Panel

Table 1: RC-7B Front Panel

# Feature

Function

1 Configurable

Control

Buttons (4)

Macro Buttons for

controlling the room and

the A/V equipment

2 Mounting

holes (2)

For fastening the controller

in place

3 Faceplate

Attachment

Holes (2)

For attaching the faceplate

to the controller

CONFIG

Port

on 3.5mm jack

connector

Used for Windows®-based

configuration software

(driver downloads, firmware

updates and so on)

SIGNAL

SOURCES

Buttons

Select the input source

(from 1 to 3)

6 IR IN

Receiver

Accepts IR remote

commands (for the

IR-learner feature)

1 These screws should not be removed during or after mounting
2 Via the front panel, without having to remove the RC-7B from its mounting
3 Letting you configure the RC-7B directly from the remote transmitter without the need for software
