Using Your Media / Room Controller
8
5 Using Your Media / Room Controller
1

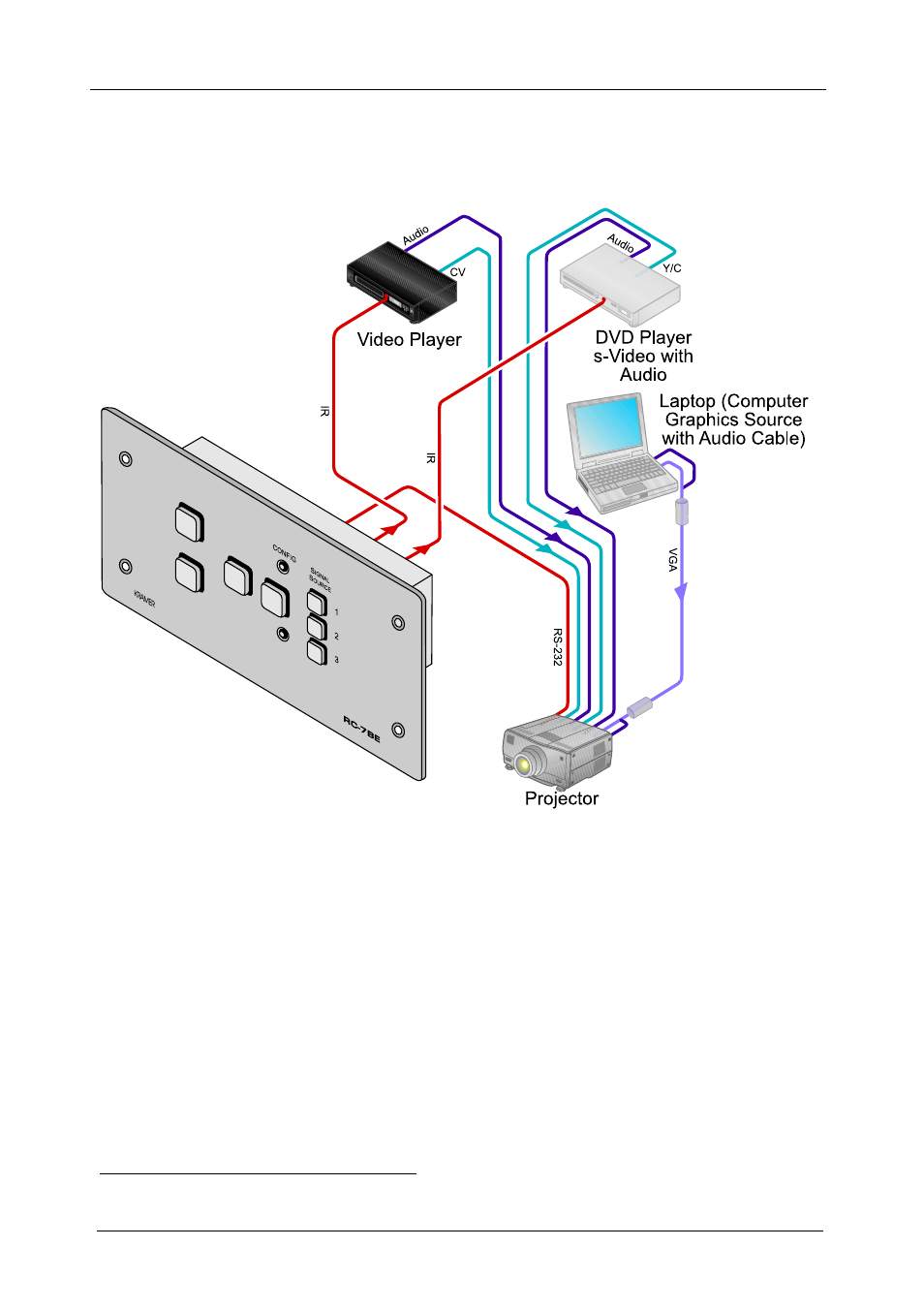

The example in Figure 5 shows a front view perspective of a typical
RC-7BE configuration. It connects to the projector via IR or RS-232:
Figure 5: RC-7BE (Front Perspective) Configuration
1 From this section on, all the information is relevant to both the RC-7B and the RC-7BE, unless noted otherwise
