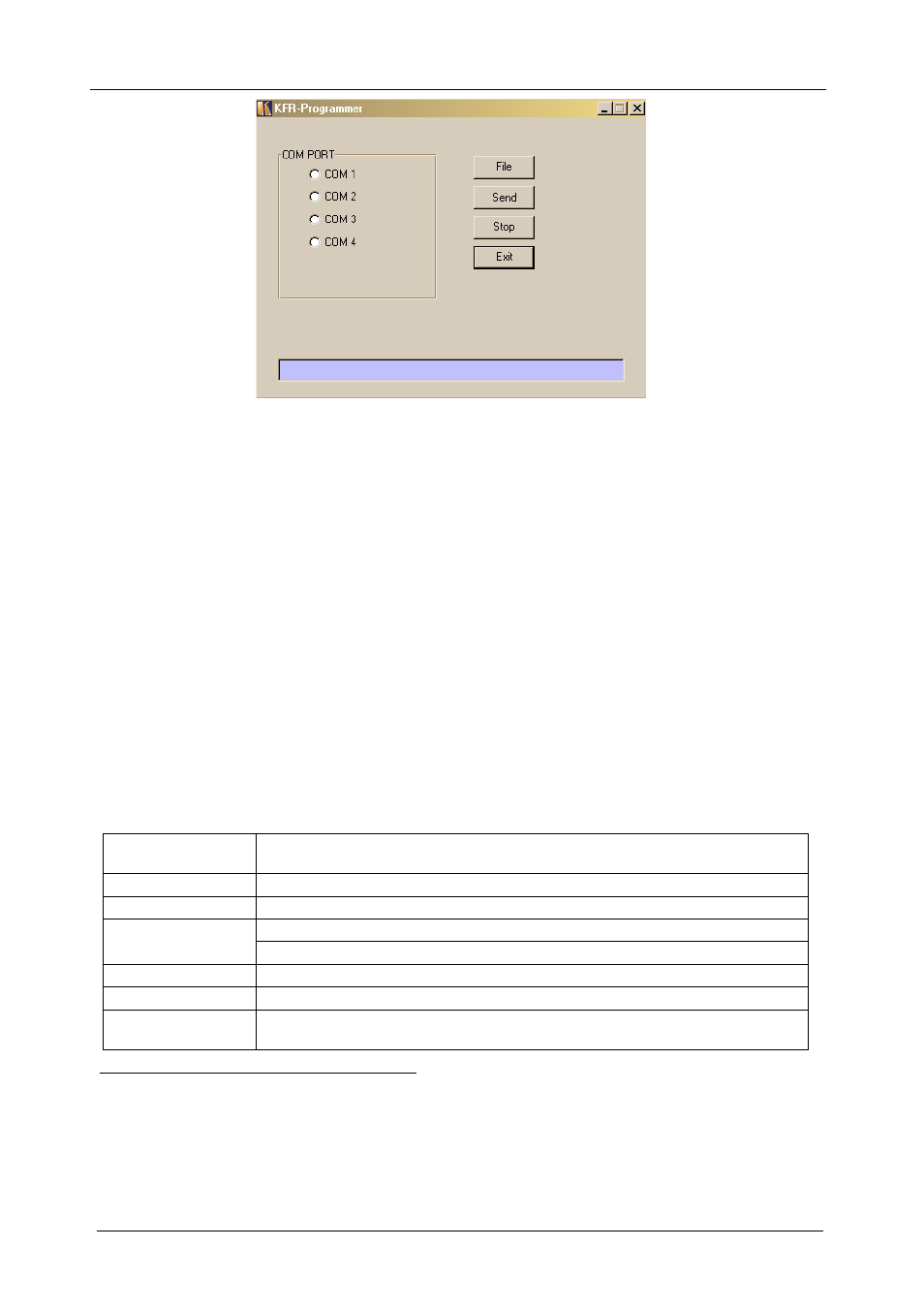

Figure 9: The KFR-Programmer Window
2. Select the required COM Port 1 .
3. Click the File button to select the .s19 firmware file included in the package.
4. Click the Send button to download the file. The Send button lights red.
5. Wait until downloading is completed and the red Send button turns off.
6. Disconnect the power on the RC device.
7. Set the PROGRAM switch to OFF.
8. Connect the power on the RC device.
7 Technical Specifications
Table 4 defines the technical specifications:
Table 4: Technical Specifications
2
of the RC-7B / RC-7BE
PORTS: 2 bi-directional RS-232 on terminal block connectors; 1 RS-485 on a terminal
block connector; Config. jack connector for RS-232 configuration and control
OUTPUTS: 2 IR emitters on terminal block connectors
POWER SOURCE: 12 VDC, 155mA
DIMENSIONS:
RC-7B: 7.1cm x 4.4cm x 13.7cm (2.8" x 1.75" x 5.39", W, D, H)
RC-7BE: 15.1cm x 4.4cm x 8.6cm (5.94" x 1.75" x 3.39", W, D, H)
WEIGHT: 0.3kg (0.67lbs.) approx
ACCESSORIES: Power supply, Windows®-based Kramer control and configuration software
OPTIONS: Dual IR emitter cable 3 , single IR emitter cable 4 , IR extension cable, CONFIG.
cable 5
1 To which the RC device is connected on your PC
2 Specifications are subject to change without notice
3 C-A35M/2IRE
4 C-A35M/IRE
5 C-A35M/D9F-6
