Installing the Configuration Software
5
4.4 Connecting the IR-OUT

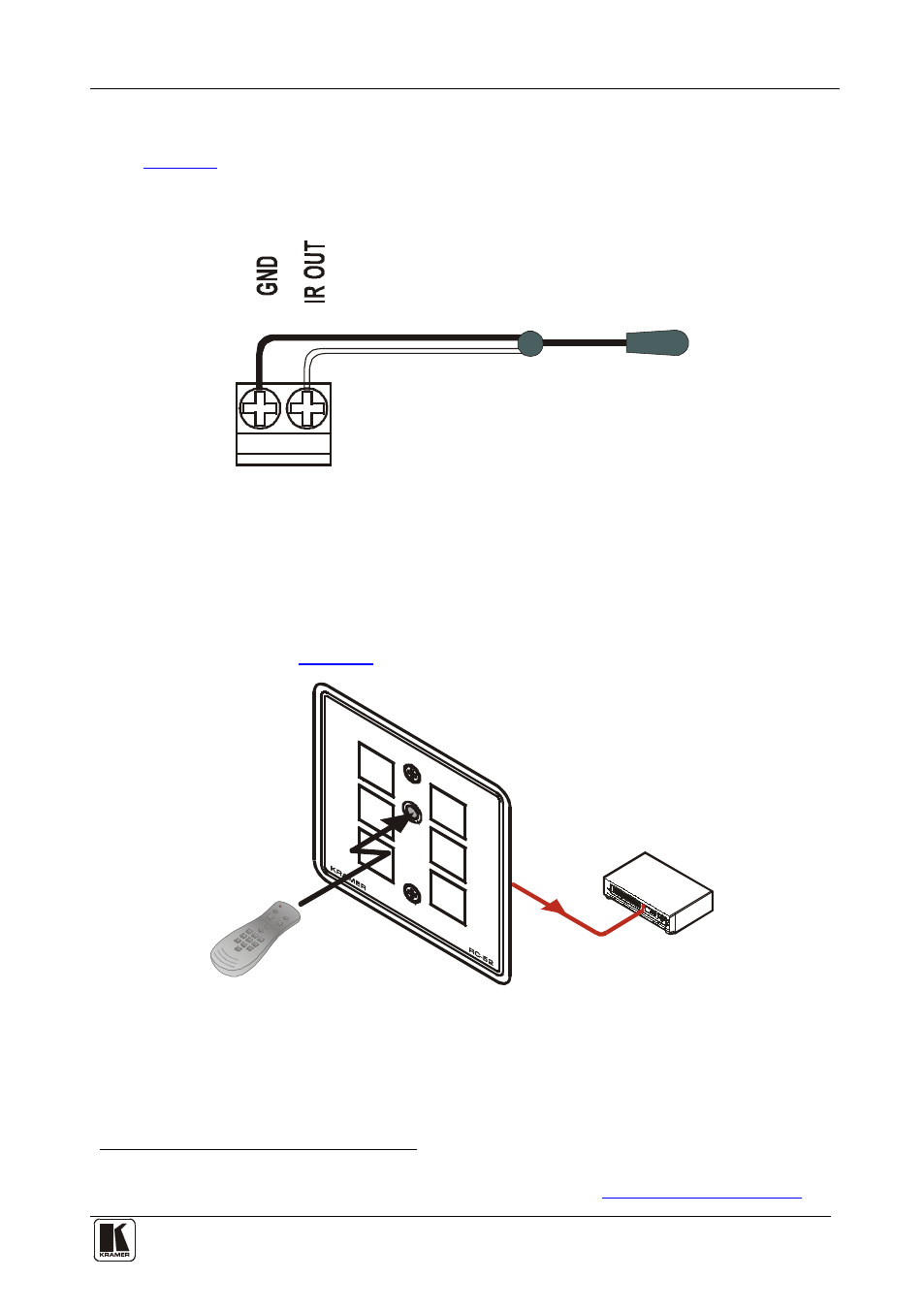

Figure 4 shows how to connect the IR emitter 1 . The white striped side
connects to IR OUT, the black side connects to the Ground, and the LED
Emitter Shell is affixed to the IR sensor window with the adhesive layer.
Figure 4: IR Emitter Wiring
4.5 Using the RC-52N as an IR Repeater
Once the RC-52N is mounted and powered, and the IR emitter is connected
to an A/V equipment machine (for example, a DVD), you can use it as an IR
signal repeater, to extend the IR signal to that machine, which has no direct
line-of-sight (see Figure 5 ).
DVD
Player
IR
Figure 5: IR Repeater Operation
5 Installing the Configuration Software
Download the K-Config configuration software from our Web site and install
it (refer to the K-Config guide 2
1 Using the Kramer 3.5mm to IR Emitter Control Cable (C-A35/IRE-10)
).
2 Download up-to-date Kramer user manuals and guides from the Internet at this URL: http://www.kramerelectronics.com
