Your RC-52N
4
4.2 The RC-52N Rear Panel

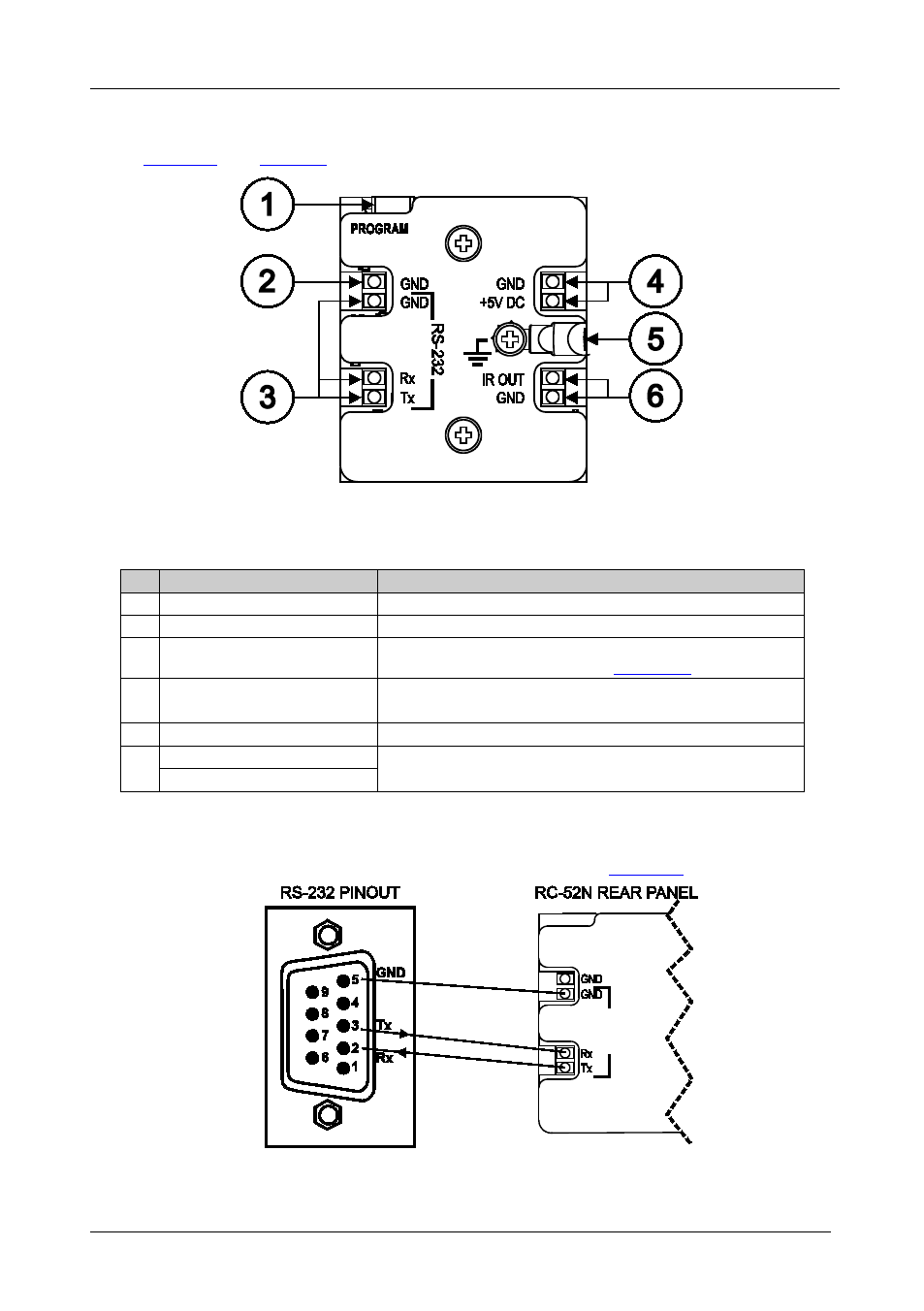

Figure 2 and Table 1 define the RC-52N rear panel:
Figure 2: RC-52N Rear Panel
Table 1: Features and Functions of the RC-52N
# Feature Function
1 Program USB Connector Connect to a computer for unit configuration
2 GND PIN Not used
3 RS-232 Terminal Block
Connector
Connect to the RS-232 connector on the A/V equipment or a
PC or other Serial Controller, see Section 4.3
4 GND PIN Connects (-) to the Ground
+5V PIN Connects (+) to the connector for powering the unit
5 Grounding Screw Connect to grounding wire
6 IR OUT PIN
Connect to an IR emitter cable
GND PIN
4.3 The RS-232 PINOUT
The RS-232 9-pin D-sub port PINOUT is defined in Figure 3 :
Figure 3: RS-232 PINOUT
