VS-81H - Overview 7
V
S
-8
1H
– O
ver
vi
ew
7

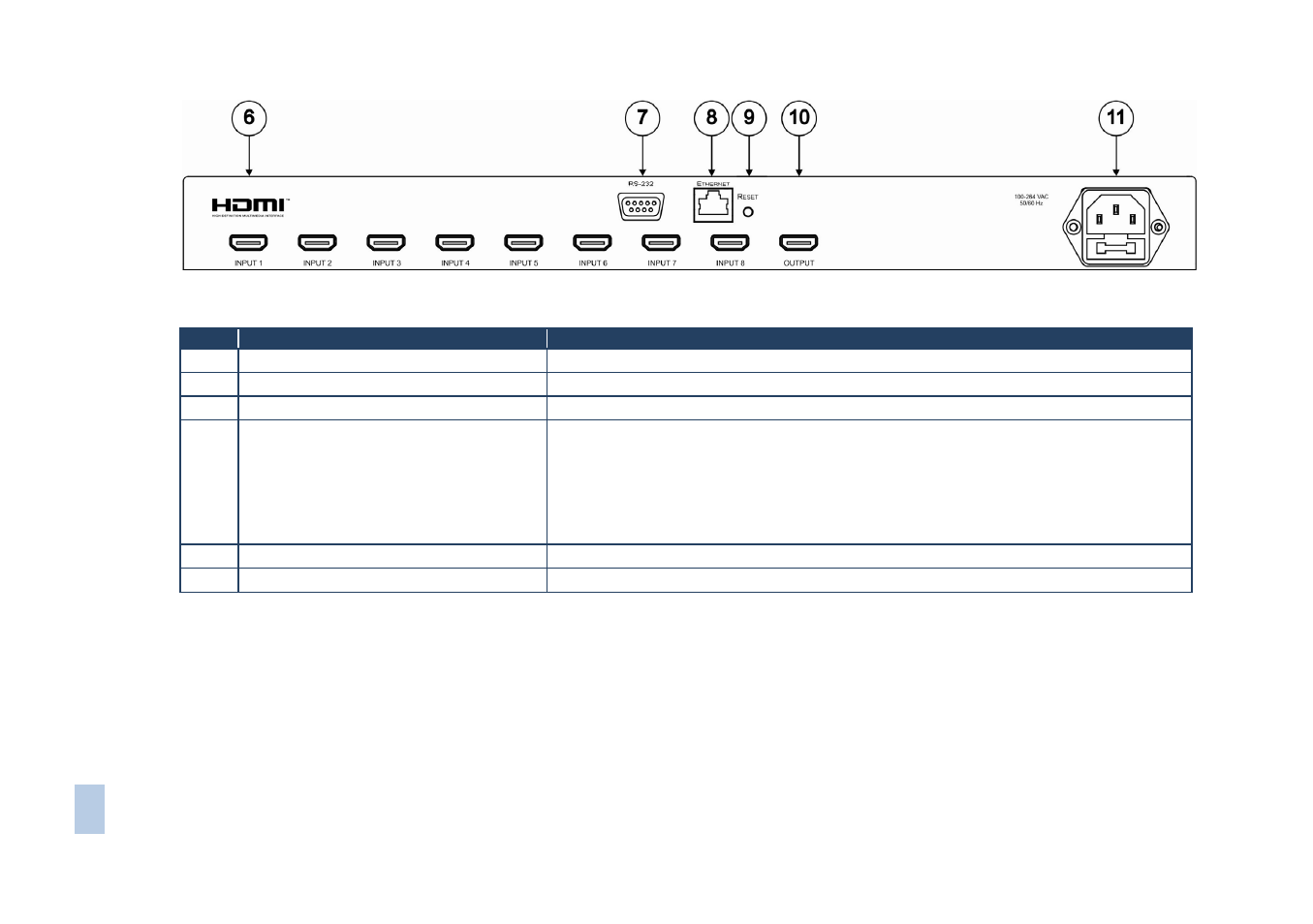

Figure 2: VS-81H 8x1 HDMI Switcher Rear Panel
# Feature Function
6 INPUT HDMI Connectors Connect to the HDMI sources (from 1 to 8)
7 RS-232 9-pin D-sub Connector Connects to a PC or an RS-232 remote controller
8 ETHERNET Connector Connects to a PC, Ethernet controller or network
9 RESET Button Press to reset to the factory default definitions:
First disconnect the power cord and then connect it again while pressing the RESET button. The
unit powers up and loads the factory default definitions into its memory.
IP number − 192.168.1.39
Mask – 255.255.255.0
Gateway – 192.168.1.1
10 OUTPUT HDMI Connector Connects to the HDMI acceptor
11 Power Connector with Fuse AC connector enabling power supply to the unit
