6 VS-42HN - Overview

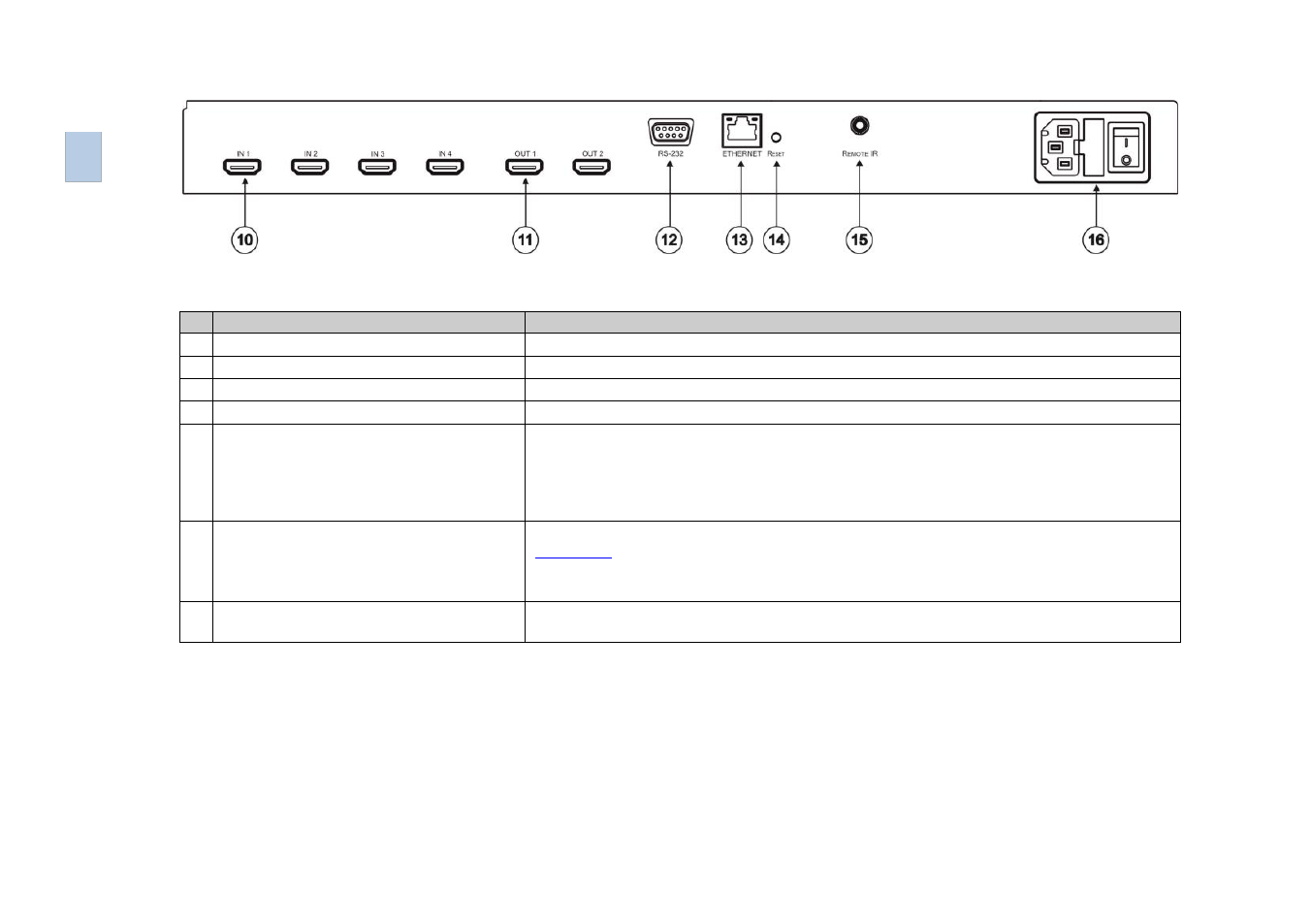

Figure 2: VS-42HN 4x2 HDMI Matrix Switcher Rear Panel
# Feature Function
10 IN HDMI Connectors (1 to 4) Connect to up to 4 HDMI sources
11 OUT HDMI Connector (1 to 2) Connect to the first and second HDMI acceptors
12 RS-232 9-pin D-sub Serial Port Connector Connect to a PC/serial controller
13 ETHERNET RJ-45 Connector Connect to a PC via a LAN
14 RESET Button Press to reset to factory default definitions:
IP number

192.168.1.39, Mask – 255.255.0.0, Gateway – 0.0.0.0
First, disconnect the power cord and then connect it again while pressing the ETH Factory Reset
button. The unit powers up and loads its memory with the factory default definitions and erases all
stored preset
15 REMOTE IR Opening Connect to an external IR receiver for controlling the device via an IR remote controller (see
Section 3.2 )
Covered by a cap. The 3.5mm jack at the end of the internal IR connection cable fits into this
opening
16 Mains Power Connector, Fuse and Power
Switch Plug in the power cord and switch the device on and off
