Controlling the VS-33Vxl 3x1 Video Switcher
6
6 Controlling the VS-33Vxl 3x1 Video Switcher
You can control the VS-33Vxl via the:
• Input selector buttons, see section 6.1
• Contact closure REMOTE connector, see section 6.2
6.1 Controlling via the Input Selector Buttons
To switch an input to the output, press the appropriate input selector button
(that is, 1, 2 or 3).
6.2 Controlling via the Contact Closure REMOTE Connector
The contact closure REMOTE control pins operate in a similar way to the
input selector buttons. Using the contact closure REMOTE control lets you
route an input to the output by remote control. To do so, temporarily connect the
required input (from 1 to 3) pin on the REMOTE terminal block connector to
the +V pin.
DO NOT connect more than one PIN to the +V PIN at the same time
For example, to route input 2 to the output, as the example in Figure 3 illustrates,
momentarily touch input # 2 to the +V pin.

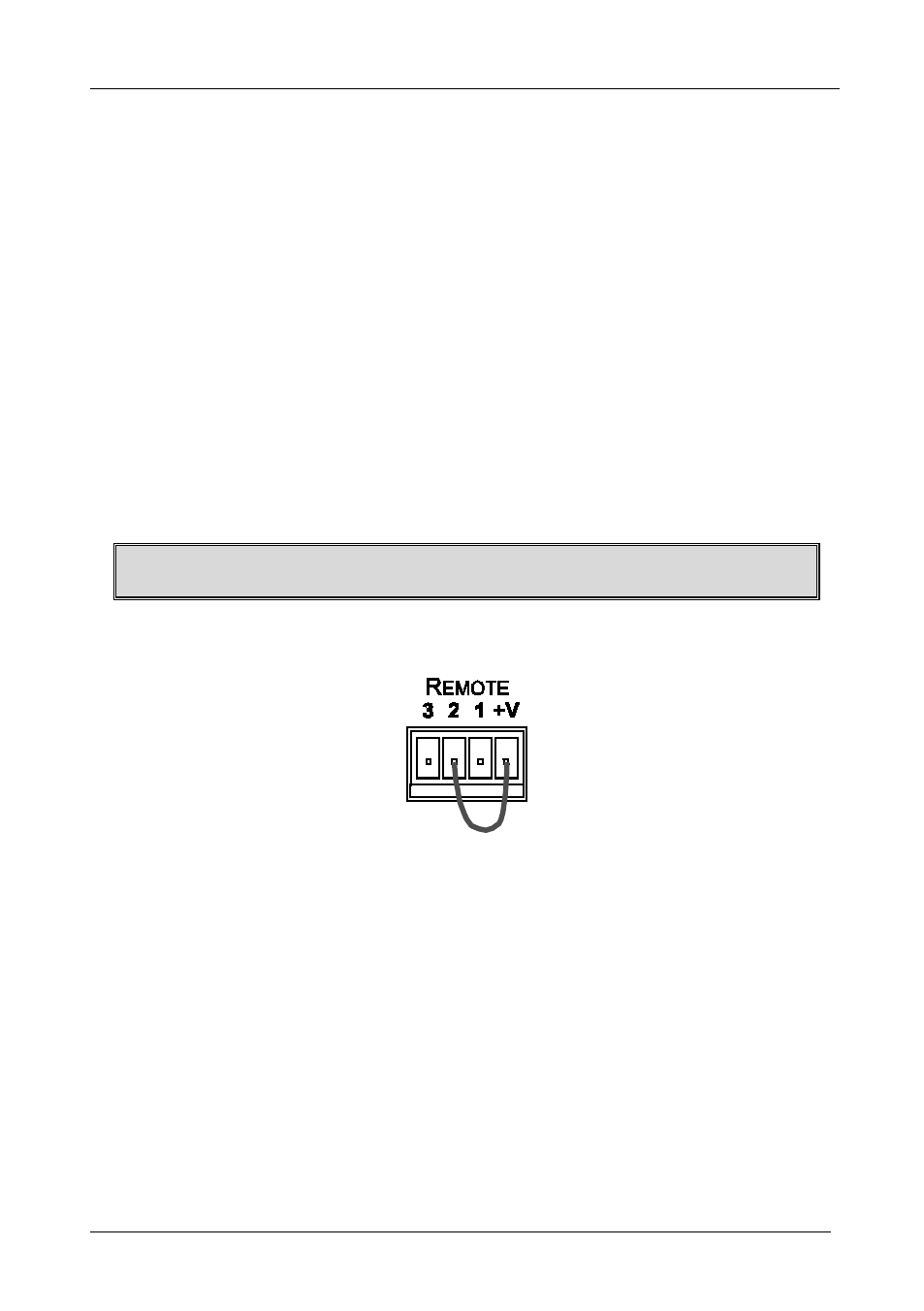

Figure 3: Using the REMOTE Connector
