Your VS 33Vxl 3x1 Video Switcher
4
4 Your VS 33Vxl 3x1 Video Switcher

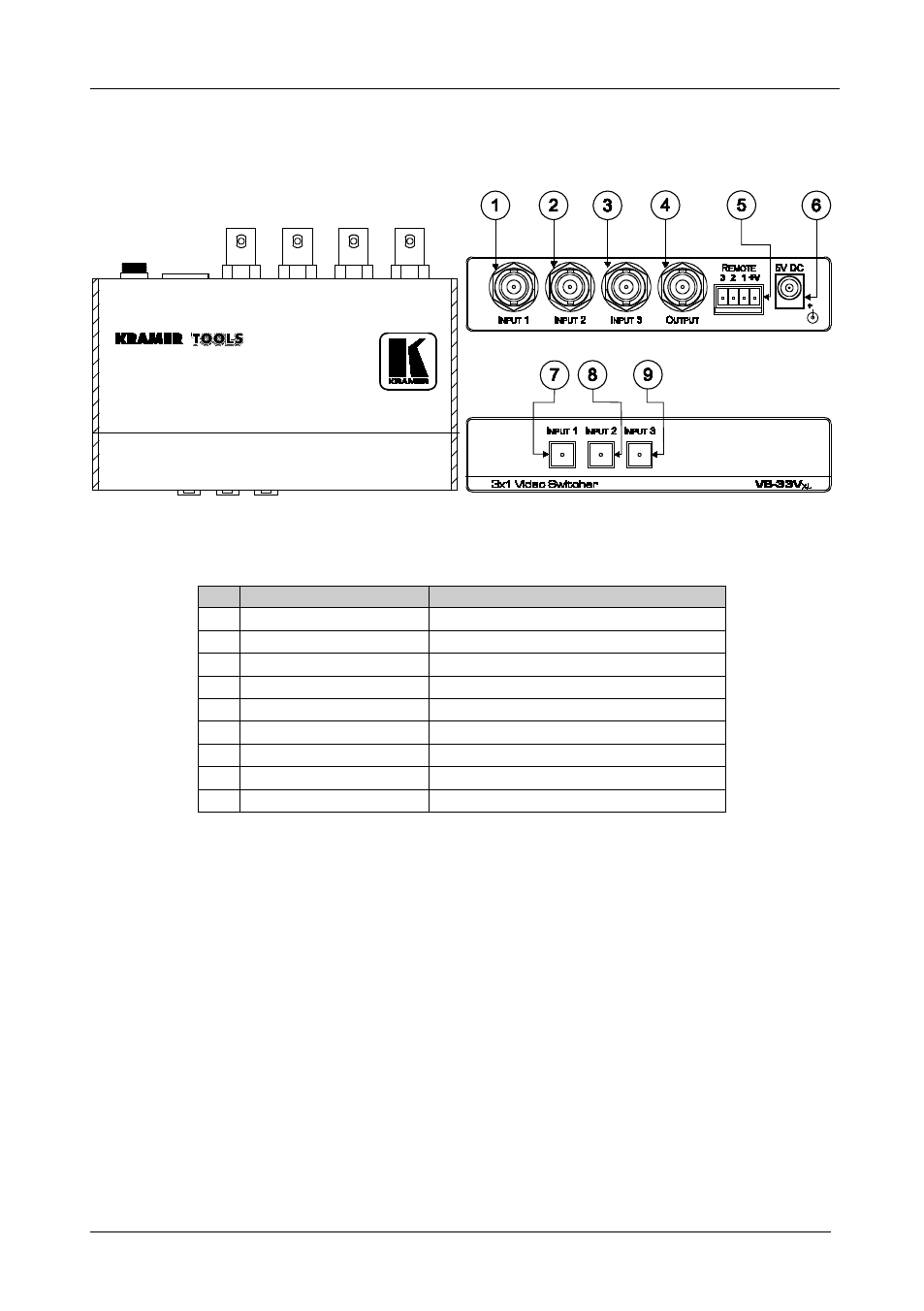

Figure 1 and Table 1 define the VS-33Vxl 3x1 Video Switcher:
Figure 1: VS-33Vxl 3x1 Video Switcher
Table 1: VS-33Vxl 3x1 Video Switcher Features
# Feature Function
1 INPUT 1 BNC Connector Connect to the composite video source 1
2 INPUT 2 BNC Connector Connect to the composite video source 2
3 INPUT 3 BNC Connector Connect to the composite video source 3
4 OUTPUT BNC Connector Connect to the composite video acceptor
5 REMOTE Terminal Block Connect to dry contact switches
6 5V DC +5V DC connector for powering the unit
7 INPUT 1 Button Press to select composite video source 1
8 INPUT 2 Button Press to select composite video source 2
9 INPUT 3 Button Press to select composite video source 3
