Operating the VS-2DVA 2x1 DVI / XGA / Audio Switcher
8
6 Operating the VS-2DVA 2x1 DVI / XGA / Audio Switcher
The VS-2DVA automatically selects DVI INPUT 1 and XGA INPUT 1 when
the VS-2DVA is turned ON (see Figure 4):

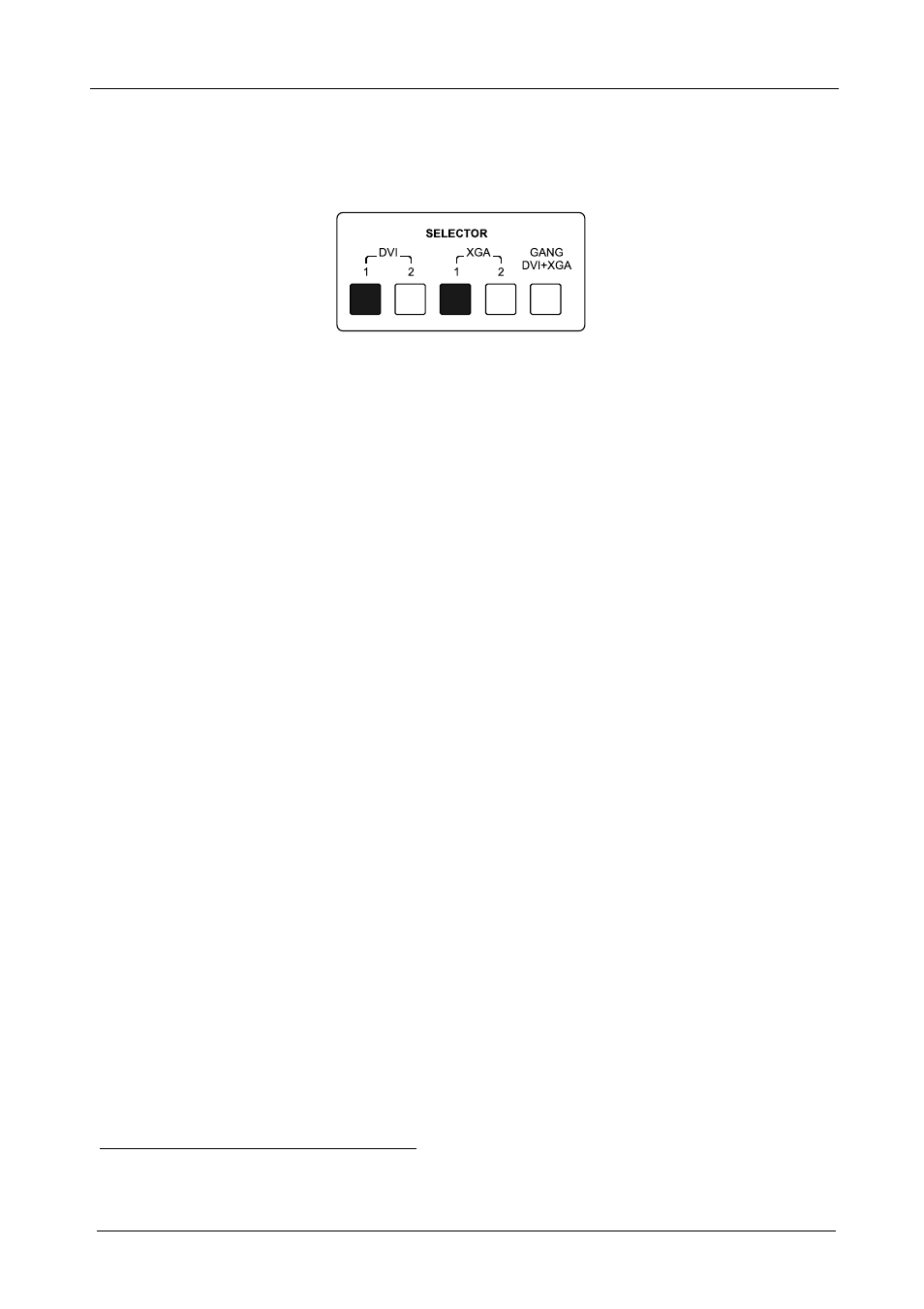

Figure 4: Initial Status of the SELECTOR Buttons
You can switch one of the two DVI inputs 1 to the corresponding DVI output 2 ,
and one of the two XGA inputs 1 to the corresponding XGA output 2 , either:
Separately, see section 6.1
Together (Ganged), see section 6.2
6.1 Switching DVI and XGA Signals Separately
To switch a DVI input and an XGA input in two separate actions:
If the GANG (DVI + XGA) button is illuminated, press to toggle for
separate selection. The button no longer illuminates
Press one of the two DVI SELECTOR buttons
The pressed button illuminates, indicating selection and outputting of that
video and audio source
Press one of the two XGA Selector buttons
The pressed button illuminates, indicating selection and outputting of that
video and audio source
6.2 Switching DVI and XGA Signals Together (Ganged)
To switch a DVI input and an XGA input in a combined action:
If the GANG (DVI + XGA) button is not illuminated, then press to toggle
for GANGED operation
The button is now illuminated
Press one of the two DVI or XGA SELECTOR buttons
The pressed button illuminates, together with the XGA or DVI
SELECTOR button corresponding to the same input number, indicating
selection and outputting of those video and audio sources
1 With its unbalanced stereo audio input
2 Together with the unbalanced stereo audio output
