Using the VS-211HDxl
6

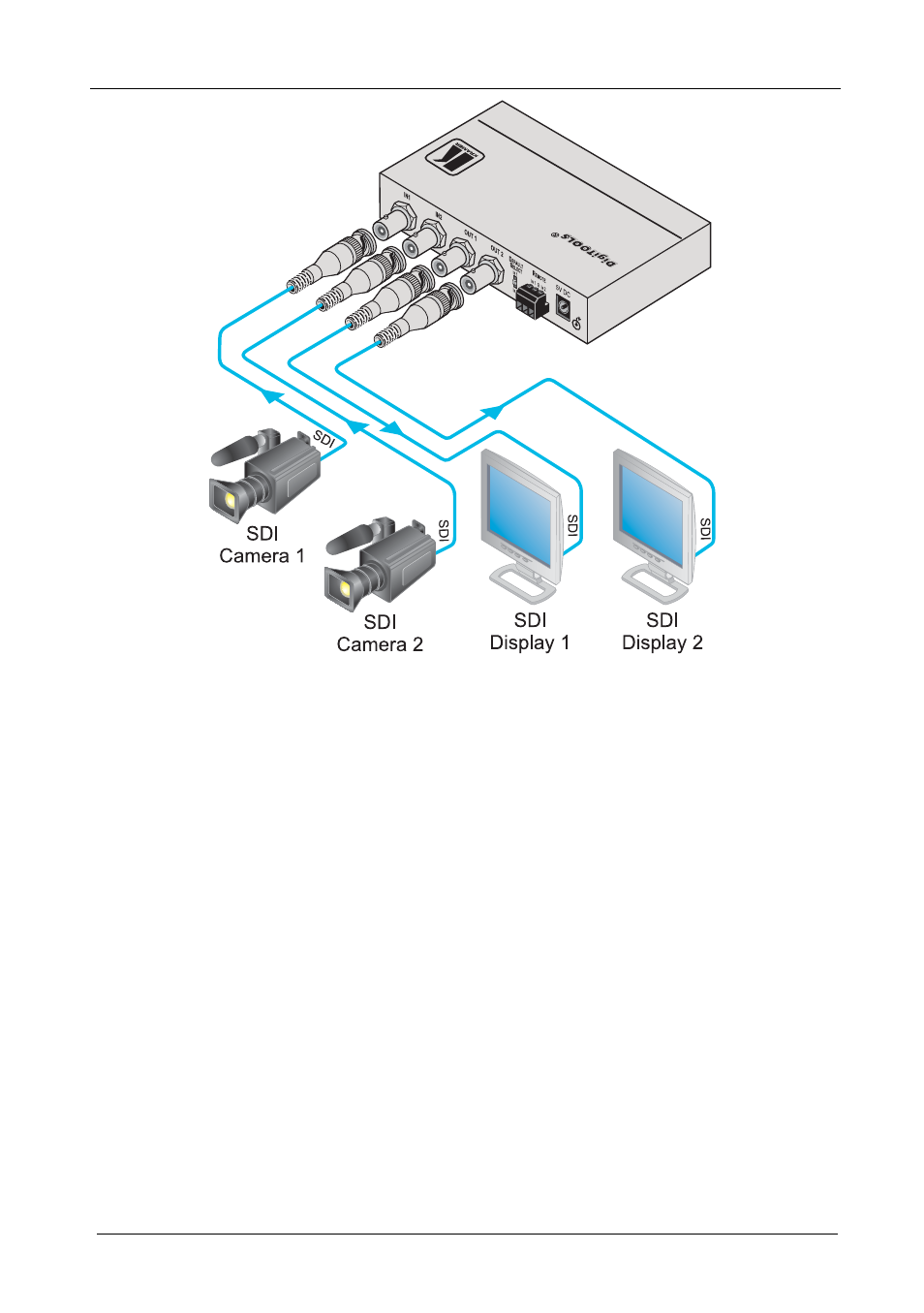

Figure 2: VS-211HDxl 3G HD-SDI Automatic Standby Switcher Connections
5.2 Selecting the Default Master Source Signal
When active input sources are connected to IN 1 and IN 2, the DEFAULT
INPUT switch setting determines the default master input source.
• If the master input signal is not detected, the VS-211HDxl
automatically activates the standby input
• If IN 1 is the default input and it fails, IN 2 activates
• If IN 2 is the default input and it fails, IN 1 activates
• If the master input reactivates while the standby input is active,
the unit automatically switches back to the master input
• If IN 2 is active while IN 1 is the default input and IN 1
reactivates, IN 1 reactivates
• If IN 1 is active while IN 2 is the default input and IN 2
reactivates, IN 2 reactivates
