Your VS-211HDxl 3G HD-SDI Automatic Standby Switcher
4
4 Your VS-211HDxl 3G HD-SDI Automatic Standby
Switcher

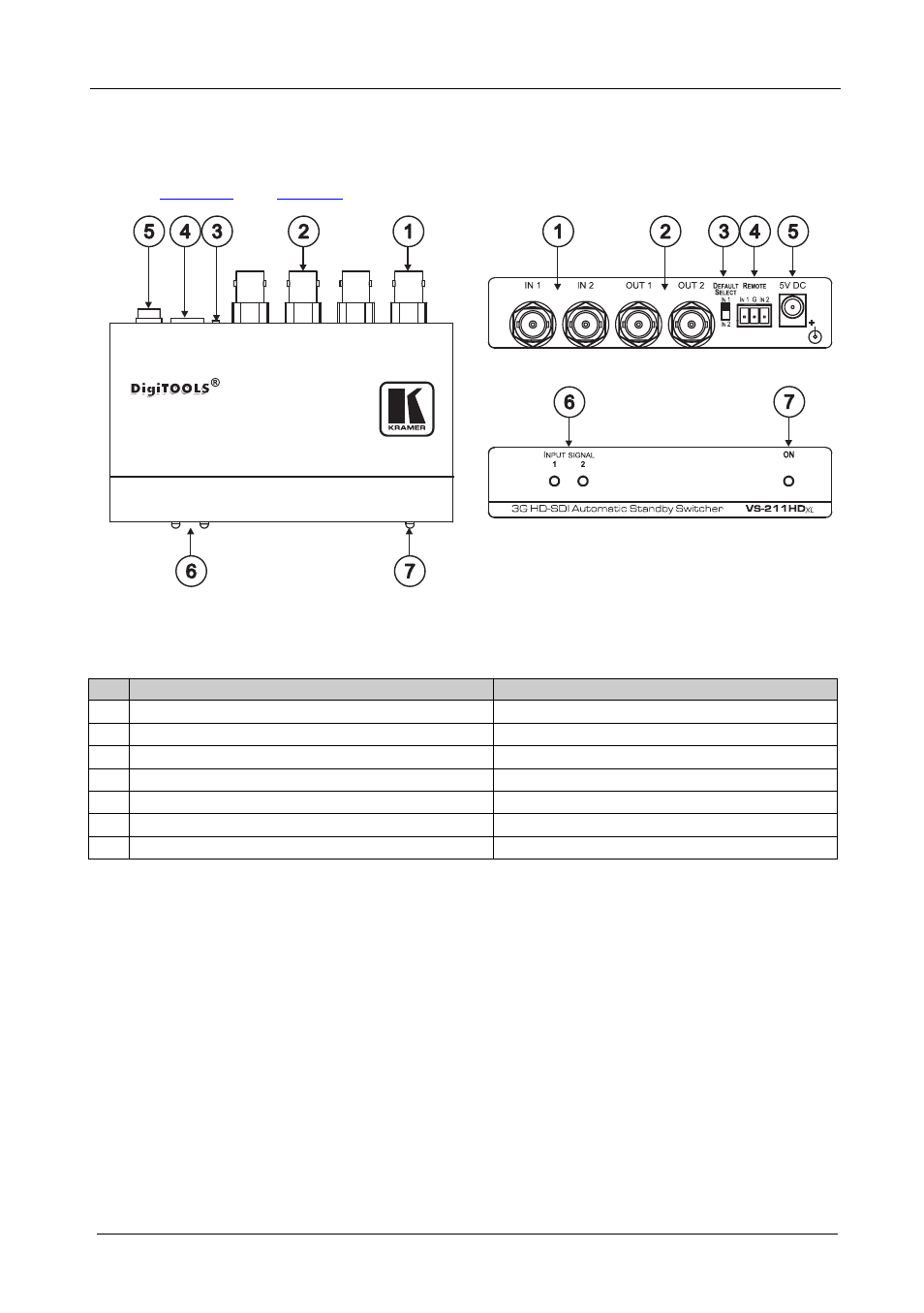

Figure 1 and Table 1 define the VS-211HDxl:
Figure 1: VS-211HDxl 3G HD-SDI Automatic Standby Switcher
Table 1: VS-211HDxl 3G HD-SDI Automatic Standby Switcher Features
# Feature Function
1 IN 1, IN 2 BNC Connectors Connect the SDI input sources 1 and 2
2 OUT 1, OUT 2 BNC Connectors Connect the SDI output acceptors 1 and 2
3 DEFAULT INPUT Switch Switch to select the default input (IN 1 or IN 2)
4 REMOTE IN 1 and IN 2 Terminal Block Connectors Connect to a contact closure switch
5 5V DC +5V DC connector for powering the unit
6 INPUT SIGNAL 1,2 LEDs Illuminates when input is active
7 ON LED Illuminates when receiving power
