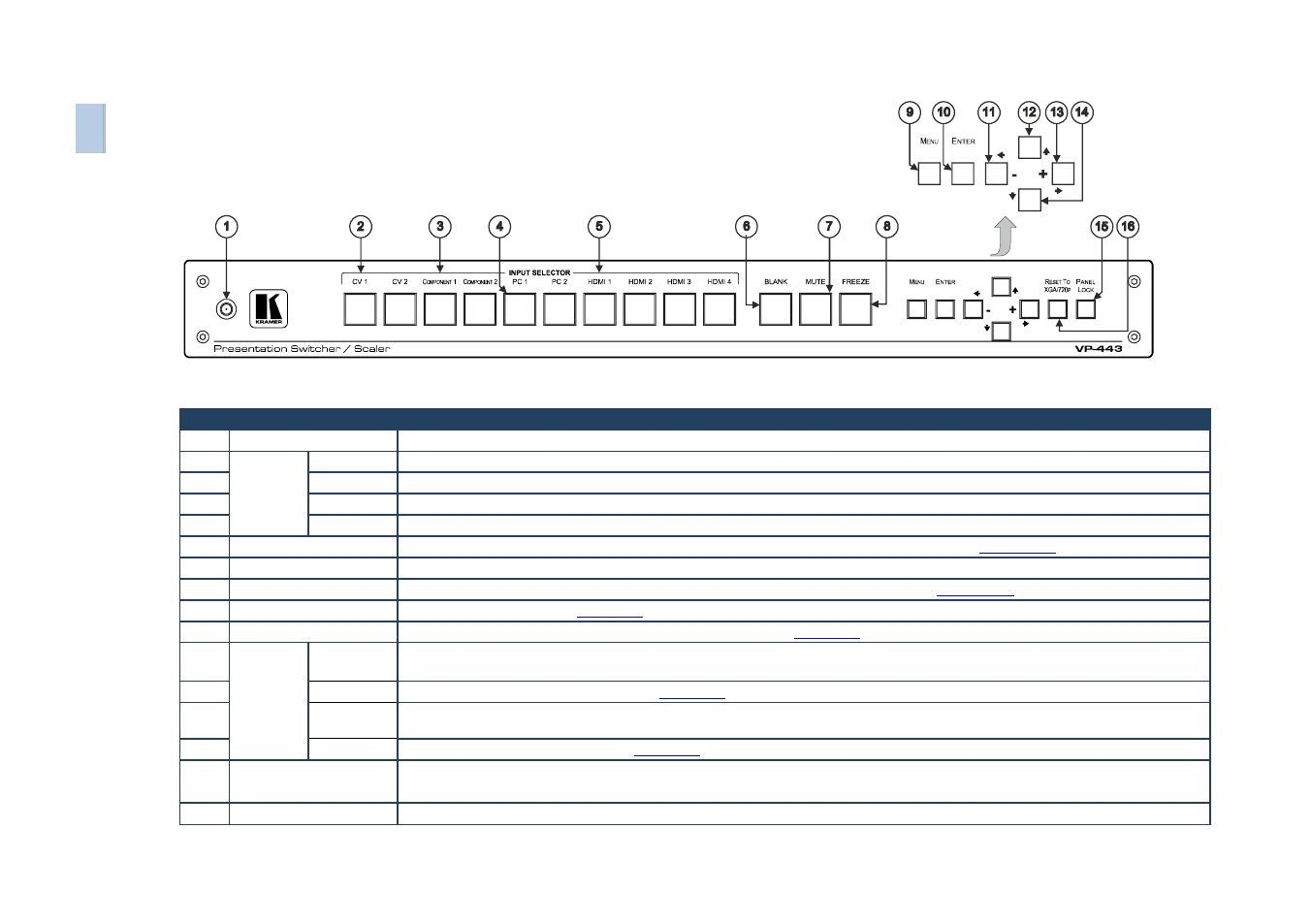

Figure 1: VP-443 Presentation Switcher/Scaler Front Panel
# Feature Function
1 IR Receiver Receives signals from the remote control transmitter
2 INPUT
Selector
Buttons CV Press to select the composite video 1 input (from 1 to 2)
3 Component Press to select the component video input (from 1 to 2)
4 PC Press to select the computer graphics input (from 1 to 2)
5 HDMI Press to select the HDMI input (from 1 to 4)
6 BLANK Button Press to toggle between a blank screen and the display; can be programmed to follow MUTE (see Section 6.2.3 )
7 MUTE Button Press to toggle between muting (blocking out the sound) and enabling the audio output
8 FREEZE Button Press to freeze/unfreeze the output video image; can be programmed to follow MUTE (see Section 6.2.3 )
9 MENU Button Displays the OSD menu (see Section 6.2 )
10 ENTER Button Press to accept changes and change the SETUP parameters (see Section 6.2 )
11 Navigation
Buttons /- Button Press to decrease numerical values or select from several definitions
When not within the OSD menu mode, press to reduce volume (for embedded HDMI inputs, this does not affect the embedded output)
12  Button Press to move up the menu list values (see Section 6.2 )
13 /+ Button Press to increase numerical values or select from several definitions
When not within the OSD menu mode, press to increase volume (for embedded HDMI inputs, this does not affect the embedded output)
14  Button Press to move down the menu list (see Section 6.2 )
15 RESET TO XGA/720p
Button Press to reset the video resolution to XGA or 720p
Press and hold for about 2 seconds to reset to XGA; or press and hold for about 5 seconds to reset to 720p
16 PANEL LOCK Button Press and hold for about 2 seconds to lock/unlock the front panel buttons
