12
K R A M E R
E lectron ics
MATRIX ROUTING SWITCHER
3 MATRIX HOOK-UP

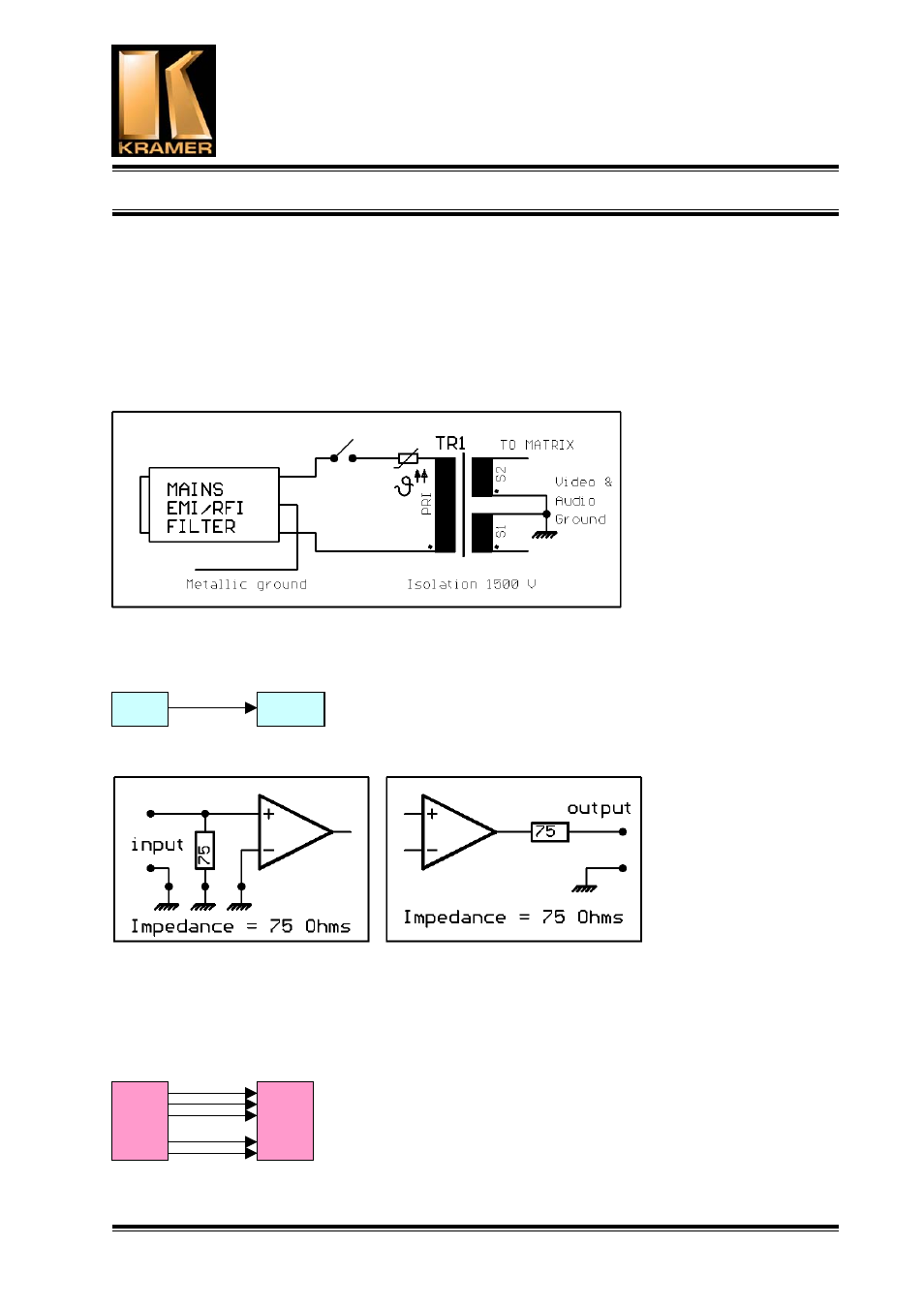

3.1 MAINS AND GROUND ISOLATION
The electric ground of all the plugs are the same, but isolated from the rack.
The rack is directly grounded by the mains cable.
3.2 VIDEO
Video inputs and outputs are standards plugs BNC 75 Ohms.
Electric equivalent plan :
3.3 RGBhv
RGBHV inputs and outputs are standard plugs : BNC.
R,G, and B signals are analogs under 75 Ohms. Level = 1V
H and V are logicals under 1 Kohms. Level = 2V to 5V
BNC BNC
BNC BNC
