6 SID-X2N - Defining the SID-X2N Step-in Commander
4 Defining the SID-X2N Step-in Commander

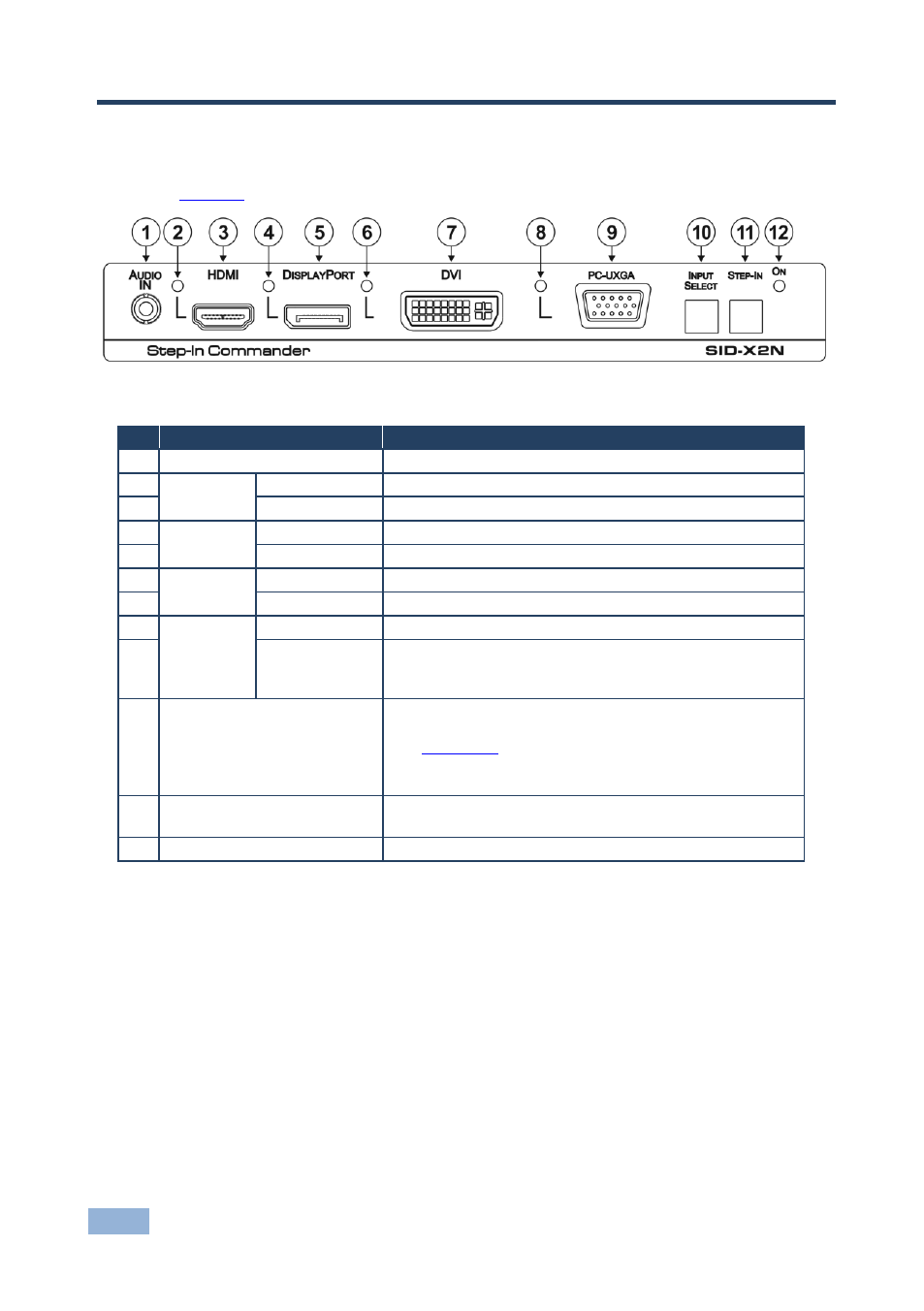

Figure 1 defines the front panel of the SID-X2N.
Figure 1: SID-X2N Step-in Commander Front Panel
# Feature Function
1 AUDIO IN 3.5mm Mini Jack Connect to an unbalanced stereo audio source
2
HDMI
LED Lights green when the HDMI input is selected
3 HDMI Connector Connect to an HDMI source
4
DisplayPort
LED Lights green when the DisplayPort input is selected
5 DP Connector Connect to a DisplayPort source
6
DVI
LED Lights green when the DVI input is selected
7 DVI Connector Connect to a DVI source
8
PC-UXGA
LED Lights green when the PC-UXGA input is selected
9 PC-UXGA
15-pin HD
Connector (F) Connect to a PC graphics source
10 INPUT SELECT Button Press repeatedly to cycle through the inputs manually to
select an input signal and override the automatic selection
(see
Section 7.1 )
Note: When the button is lit it is inactive and pressing the
button will not activate the input
11 STEP-IN Button Press to activate the input on the switcher that the
SID-X2N is connected to
12 ON LED Lights green when the device is powered on
