8

SID-X1N - Connecting the SID-X1N

2. Connect the unbalanced stereo audio source, (for example, the audio output

from the laptop) to the AUDIO IN 3.5mm mini jack.

3. Connect the AUDIO OUT 3.5mm mini jack to the unbalanced, stereo audio

acceptor, (for example, a power amplifier with speakers).

4. Connect the TP OUT RJ-45 connector to a compatible switcher, (for

example, VP-81SIDN).

5. Connect the REMOTE STEP-IN 3-way terminal block to a contact-closure

switch and LED (see

Section

5.1

).

6. Connect the REMOTE SELECT 3-way terminal block to a momentary

contact-closure switch and LEDs (see

Section

5.2

).

7. Connect the LED ANODES 5-way terminal block to the remote input

indicator LEDs (see

Section

5.3

).

8. Connect the power adapter to the SID-X1N and to the mains power.

Note: All LED supplies include a current limiting resistor and are designed to work

with any standard LED.

5.1

Connecting the Remote Step-In Switch and LED

You can connect a remote, contact closure step-in switch to take control of the

input of the attached switcher, as well as a remote step-in LED to the REMOTE

STEP-IN terminal block on the rear panel of the SID-X1N.

Figure 4

illustrates the connections from the terminal block to the switch and LED.

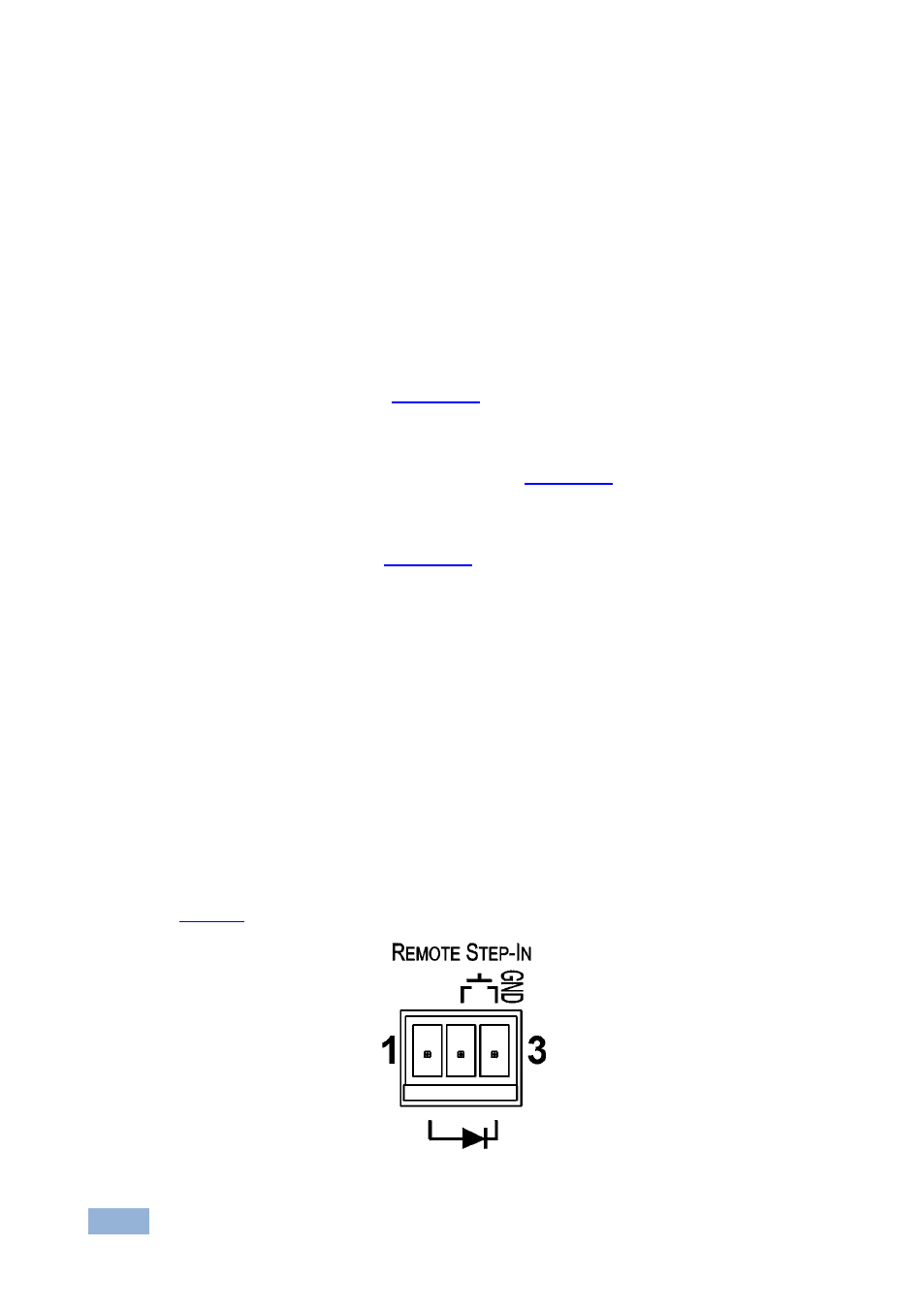

Figure 4: Remote Step-In Switch and LED Wiring
