16 SID-X1N - Wiring the Twisted Pair RJ-45 Connectors
9 Wiring the Twisted Pair RJ-45 Connectors
When using STP cable, connect/solder the cable shield to the RJ-45 connector
shield. Figure 9 defines the TP pinout using a straight pin-to-pin cable with RJ-45
connectors.

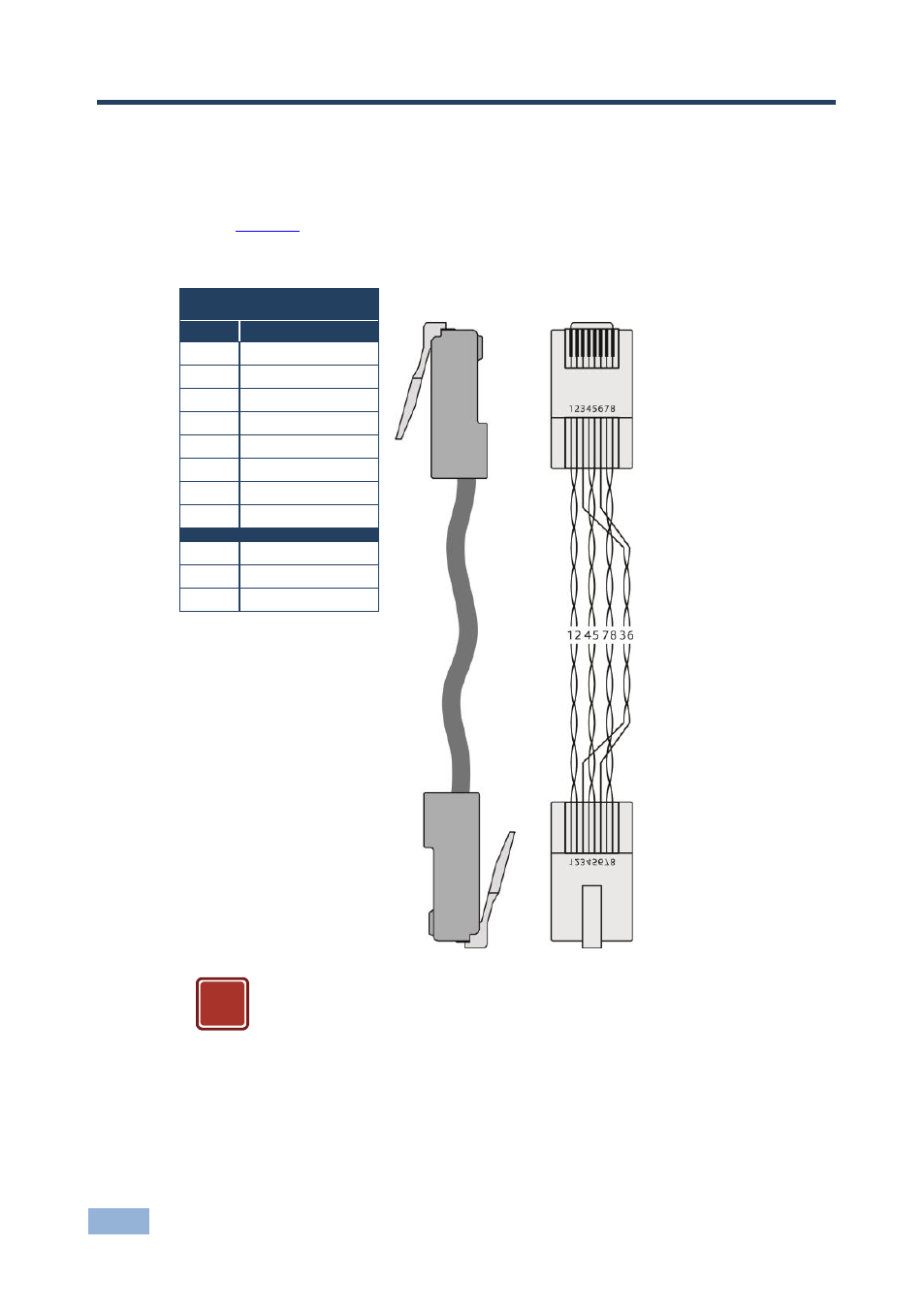

EIA /TIA 568B Figure 9: TP Pinout Wiring
PIN Wire Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
Pair 1 4 and 5
Pair 2 1 and 2
Pair 3 3 and 6
Warning: Using a TP cable that is incorrectly wired will cause
permanent damage to the device
!
