5.3 Getting to Know Your VM-5AD Amplifier
The KRAMER
VM-5AD is a full spec, state-of-the-art, 1:5 balanced audio distribution amplifier
designed for studio and other demanding applications. The
VM-5AD splits a single input source,
either mono balanced or stereo unbalanced into five identical outputs without any discernible signal
degradation. The
VM-5AD has an audio level control knobs to change balanced or unbalanced audio
signal levels, it can accept microphone input level, balanced mono or unbalanced stereo, amplifying it
to a line level signal. The
VM-5AD allows easy conversion between balanced and unbalanced signals
for maximal flexibility in studios. All circuitry is active with no transformers, thus ensuring hum-
free, full bandwidth operation. The
VM-5AD may be used to convert balanced signal levels and
unbalanced signal levels in both directions, using the level knobs. A microphone signal
(balanced/unbalanced) may be converted to a standard +4dBm balanced level. Front/rear panel
features of the
VM-5AD are described in Figure 3 and Table 3.
NOTE
For operation instructions refer to section
8
.

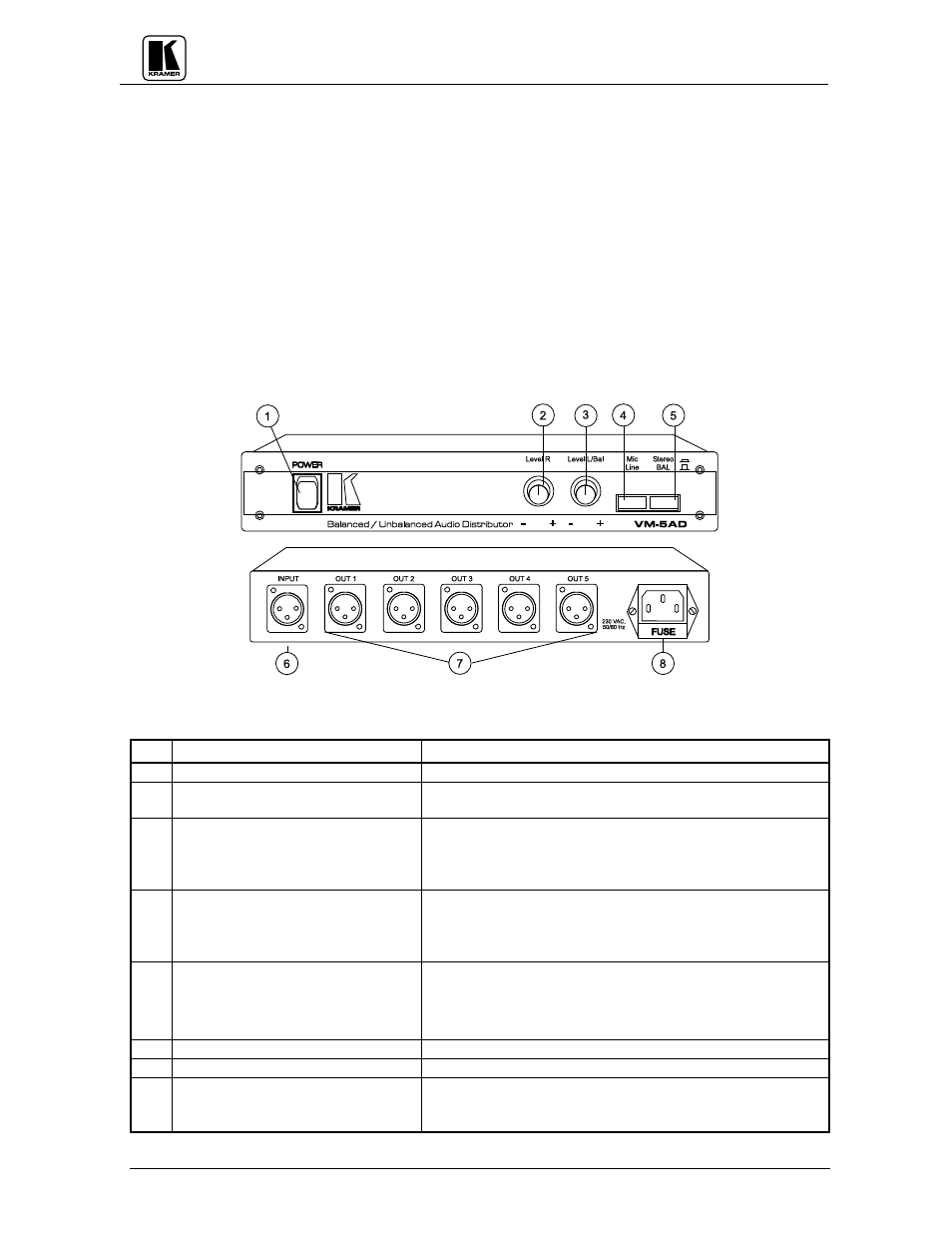

Figure 3: VM-5AD Front/Rear Panel Features
Table 3: VM-5AD Front/Rear Panel Features
No.
Feature
Function
1.
Illuminated
Power Switch
Supplies power to the unit.
2. LEVEL R
knob
Adjusts right stereo audio level when
Stereo/BAL pushbutton
is in “
Stereo” position.
3. LEVEL L/BAL
knob
1.
Adjusts left stereo audio level when
Stereo/BAL
pushbutton is in “Stereo” position.
2.
Adjusts balanced audio level when
Stereo/BAL is in
“
BAL” position.
4.
Mic/Line pushbutton.
1.
Should be pressed (“Mic” position) whenever
microphone is used.
2.
Should be released (“Line” position) for normal
operation (no microphone).
5.
Stereo/BAL pushbutton
1.
Enables stereo signal and should be pressed (“
Stereo”
position) when a stereo signal is applied to the input.
2.
Enables balanced signal and should be released (“
Bal”
position) when a balanced signal is applied to the input.
6. XLR INPUT
female connector
Audio input
7. XLR OUT1- OUT5
male connectors
5 amplified and buffered audio outputs.
8.
3-prong power connector/fuse
A 3-prong AC connector allows power to be supplied to the
unit. Directly underneath this connector, a fuse holder houses
the appropriate fuse.
