VM SERIES AMPLIFIERS

This section describes all the controls and connections of your amplifier. Understanding all of the

controls and connections helps you realize its full power.

5.1 Getting to Know Your VM-1110 Amplifier

The KRAMER

VM-1110 is a full spec, state-of-the-art, 1:10 balanced audio distribution amplifier

designed for studio and other demanding applications. The

VM-1110 splits the input source into ten

identical outputs with no discernible signal degradation. The

VM-1110 has two inputs and can be

programmed by the user to function as a 1:10 Mono DA or as a 2 x 1:5 (stereo) DA. State-of-the-art

Bi-Fet amplifying circuitry and a high power discrete buffering system make the

VM-1110 an

excellent performer. All circuitry is active with no transformers thus ensuring hum-free, full

bandwidth operation. The

VM-1110 may also be used to distribute unbalanced signals, using an

appropriate adapter and grounding the negative polarity signal.

Two VM-1110 machines can be used

for 1:10 stereo operation, in conjunction with the KRAMER

VM-1010 (used for video).

Front/rear panel features of the

VM-1110 are described in Figure 1 and

Table

NOTE

For operation instructions refer to section 8.

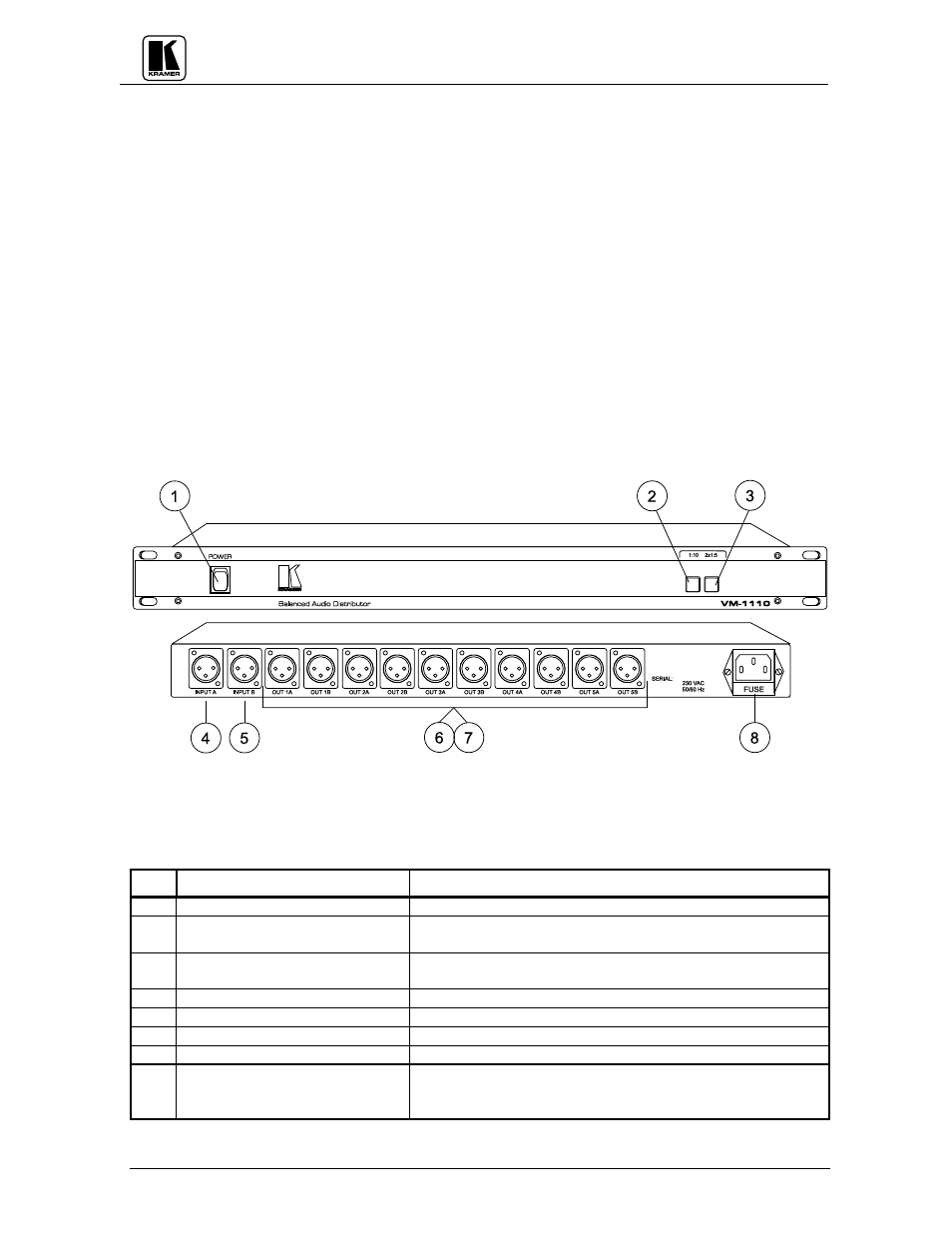

Figure 1: VM-1110 Front/Rear Panel Features

Table 1: VM-1110 Front/Rear Panel Features

No.

Feature

Function

Illuminated power switch

Supplies power to the unit.

Mode 1:10 pushbutton

(Illuminates when pushed)

Splits input "A" to all 10 outputs when pressed.

Mode 2 x1:5 pushbutton

(Illuminates when pushed)

Splits inputs "A" and "B" to outputs "1A-5A" and "1B-5B"

respectively when pressed.

XLR INPUT A female connector

Audio input

XLR INPUT B female connector

Audio input

XLR OUT 1A-5A male connectors 5 amplified and buffered audio outputs.

XLR OUT 1B-5B male connectors 5 amplified and buffered audio outputs.

A 3-prong power connector/fuse

A 3-prong AC connector allows power to be supplied to the unit.

Directly underneath this connector, a fuse holder houses the

appropriate fuse.
