6 VM-114H - Overview

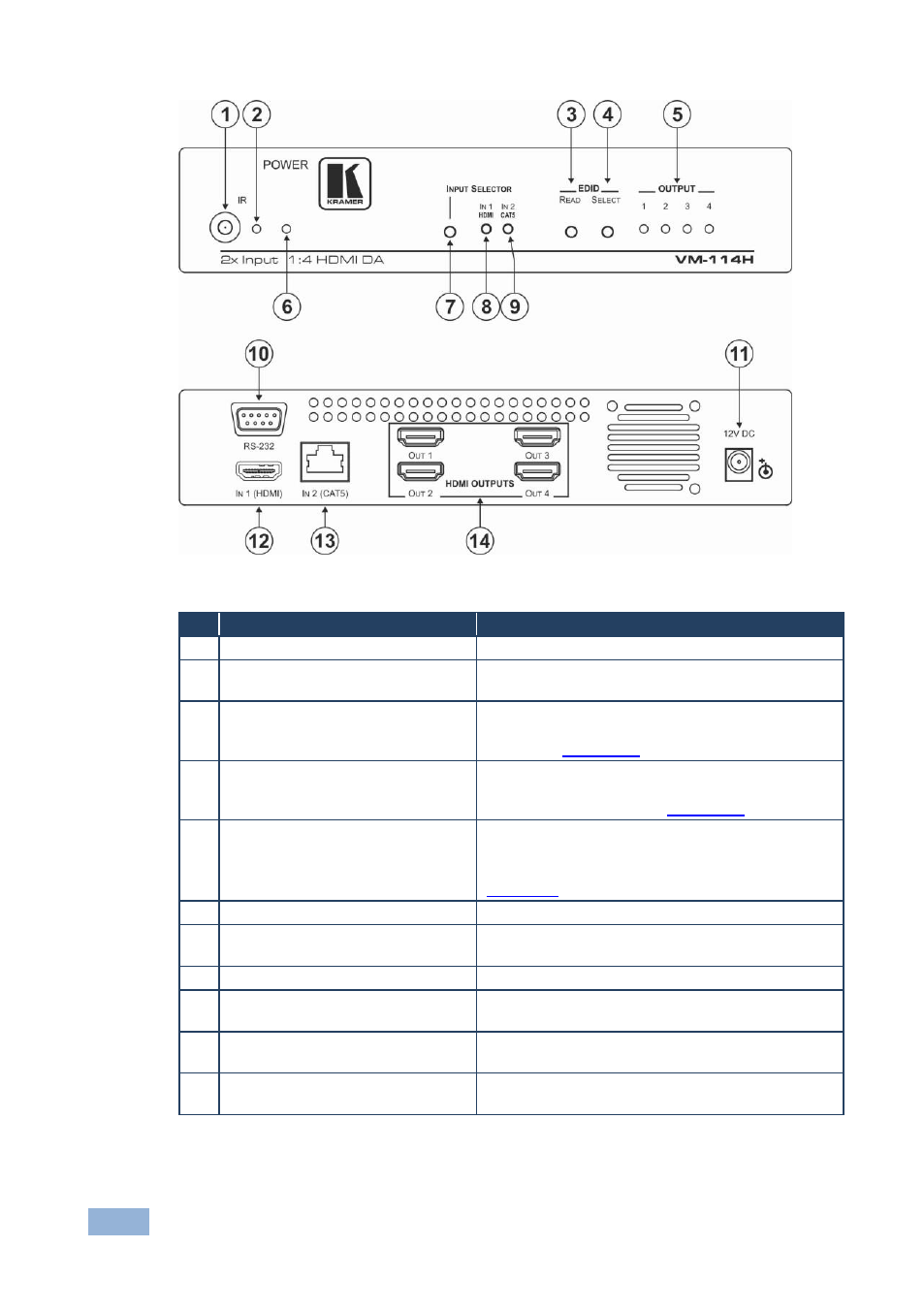

Figure 1: VM-114H 2x Input 1:4 HDMI DA
# Feature Function
1 IR Remote Control Sensor Sensor for the remote control IR transmitter
2 IR LED Lights yellow when receiving signals from the IR
remote control transmitter
3 EDID READ Button Press (when one of the input LEDs is flashing to
indicate a selected input) to read the selected
EDID (see
Section 5.1 )
4 EDID SELECT Button Press repeatedly to cycle through the inputs to
select an input from which to read the EDID. The
relevant LED flashes (see
Section 5.1 )
5 OUTPUT 1~4 LEDS The relevant LED lights green when an acceptor
is connected to the output
Also lights or flashes during EDID setup (see
Section 5.1 )
6 POWER LED Lights green when the unit receives power
7 INPUT SELECTOR Button Press to select an input. The relevant input LED
lights
8 IN1 HDMI LED Lights green when the HDMI input 1 is selected
9 IN2 CAT5 LED Lights green when the TP CAT 5 input 2 is
selected
10 RS-232 9-pin D-sub (F)
Connector Connect to a PC or remote controller
11 12V DC Power Connector Connect to the +12V DC power adapter, center
pin positive
